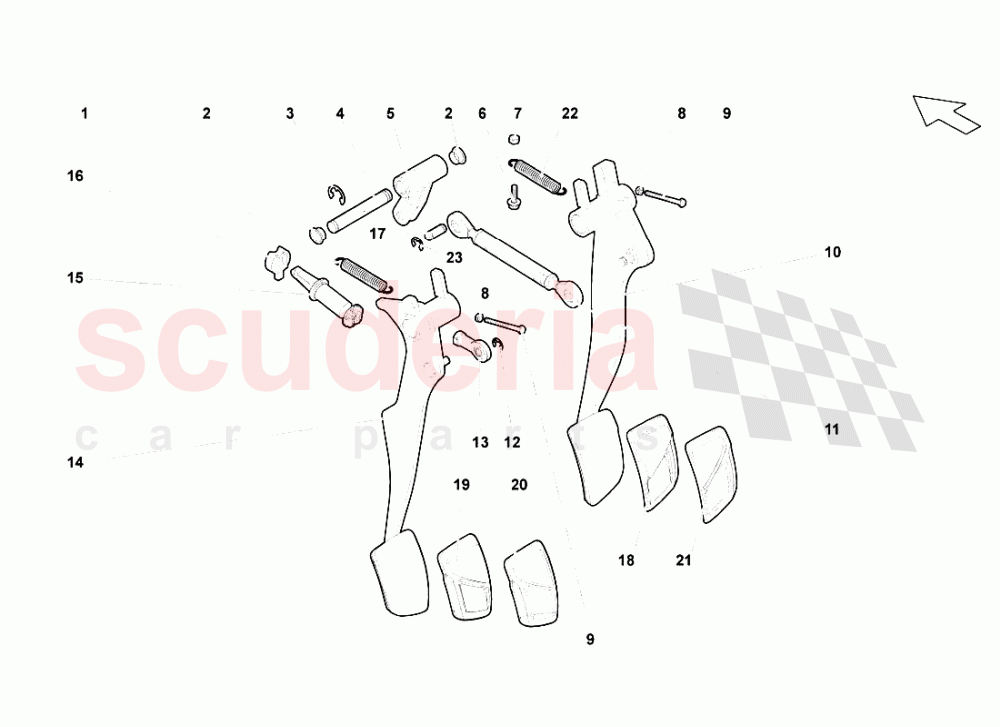

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400721363	CLUTCH PEDAL SPRING (MANUAL GEARBOX)	400721363 CLUTCH PEDAL SPRING (MANUAL GEARBOX)	-	1	Enquire
002	400721389	BUSHING	400721389 BUSHING	-	2	Enquire
003	N0124402	CLIP	N0124402 CLIP	-	2	Enquire
004	N91024201	SHAFT	N91024201 SHAFT	-	1	Enquire
005	401721313B	LEVER (FOR GSX CARS)	401721313B LEVER (FOR GSX CARS)	-	1	Enquire
006	N90833201	SCREW	N90833201 SCREW	-	2	Enquire
007	N01100625	NUT	N01100625 NUT	-	2	Enquire
008	N0110051	NUT	N0110051 NUT	-	2	Enquire
009	N10579401	SCREW	N10579401 SCREW	-	2	Enquire
010	401721141C	BRAKE PEDAL (FOR GSX CARS)	401721141C BRAKE PEDAL (FOR GSX CARS)	-	1	Enquire
011	400723323A	PARTICULAR (FOR GSX CARS)	400723323A PARTICULAR (FOR GSX CARS)	-	1	Enquire
012	N0124361	CLIP	N0124361 CLIP	-	1	Enquire
013	400721993A	BALL JOINT COUPLING	400721993A BALL JOINT COUPLING	-	1	Enquire
014	401721315A	CLUTCH PEDAL (FOR GSX CARS)	401721315A CLUTCH PEDAL (FOR GSX CARS)	-	1	Enquire
015	1J1721403G	SPRING ASS:	1J1721403G SPRING ASS:	-	1	Enquire
016	8Z0721423	LODGING	8Z0721423 LODGING	-	1	Enquire
017	N91024101	SHAFT	N91024101 SHAFT	-	1	Enquire
018	400721174C	COVER	400721174C COVER	-	1	Enquire
019	400721173	COVER	400721173 COVER	-	1	Enquire
020	400721779	COVER	400721779 COVER	-	1	Enquire
021	400721780	COVER	400721780 COVER	-	1	Enquire
022	400721363A	SPRING (E-GEAR)	400721363A SPRING (E-GEAR)	-	1	Enquire
023	N0126481	RETAINING WASHER	N0126481 RETAINING WASHER	-	3	Enquire
