Oil System Radiator of Lamborghini Lamborghini Gallardo Spyder

View All

Lamborghini Gallardo Spyder - Oil System Radiator

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400117098A	BRACKET	400117098A BRACKET	$122.05	1
002	N0902324	SCREW M6X10	N0902324 SCREW M6X10	$1.04 MSRP: ~~7.25~~ (85.7% off)	1

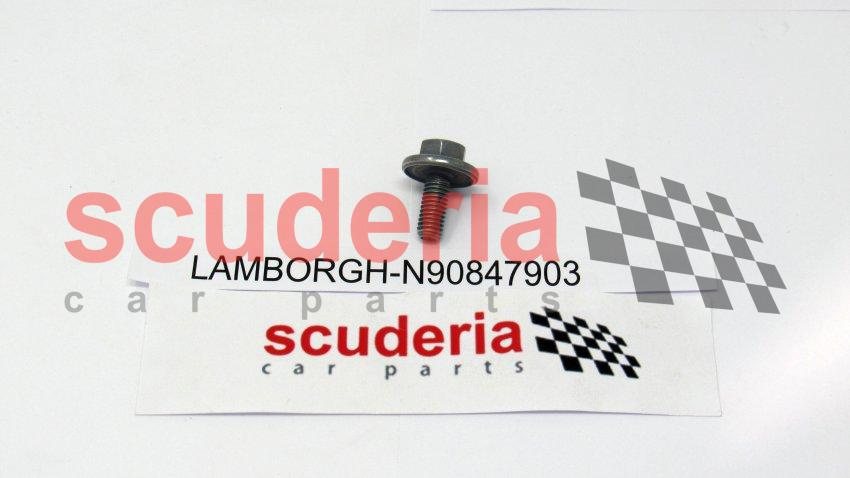

003	N90847903	Screw M6X15	N90847903 Screw M6X15	$1.16	4
004	7L117413C	HOSE	7L117413C HOSE	$987.91	1
005	7L115687C	HOSE	7L115687C HOSE	$1,227.16	1
006	N10451405	OVAL HEXAGON SOCKET HEAD BOLT	N10451405 OVAL HEXAGON SOCKET HEAD BOLT	$1.43 MSRP: ~~7.22~~ (80.2% off)	4
007	N90265703	NUT M6X7.6	N90265703 NUT M6X7.6	$9.27	2
008	400115339A	HEAT SHIELD	400115339A HEAT SHIELD	$263.44	1
009	400115707	CONNECTOR	400115707 CONNECTOR	$34.14	1
010	7L115664C	PIPE	7L115664C PIPE	$186.83	1
011	N10233401	CLAMP 16.2 X 7 X 0.60	N10233401 CLAMP 16.2 X 7 X 0.60	$3.05	2
013	7L115311D	PLUG	7L115311D PLUG	$301.77	1
014	7L115664C	PIPE	7L115664C PIPE	$186.83	2
016	N90107203	CLAMP 12 X 8.0 X 0.5	N90107203 CLAMP 12 X 8.0 X 0.5	$3.77	2
017	357711798	RUBBER SEAL	357711798 RUBBER SEAL	$3.51	2
018	N10005109	SCREW M8X35	N10005109 SCREW M8X35	$2.78	2
019	7L115373B	OIL TANK	7L115373B OIL TANK	$4,274.20	1
020	400115341B	HEAT SHIELD	400115341B HEAT SHIELD	$137.77	1
021	N10156305	SCREW M6X12	N10156305 SCREW M6X12	$1.19	1
022	7L115333B	RUBBER BUFFER	7L115333B RUBBER BUFFER	$11.56	1
023	N0138485	SEAL RING	N0138485 SEAL RING	$0.92 MSRP: ~~7.29~~ (87.4% off)	1
024	N91155901	SEALING SCREW PLUG M16 X 1.5	N91155901 SEALING SCREW PLUG M16 X 1.5	$13.68	1

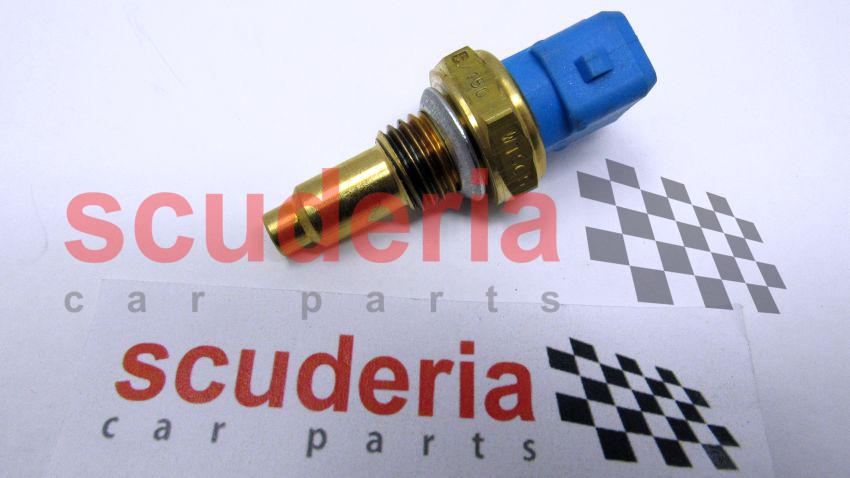

025	7L919501A	Water Temperature Sensor	7L919501A Water Temperature Sensor	$359.56	1
026	7L115659G	OIL SUCTION ROSE	7L115659G OIL SUCTION ROSE	$1,040.31	1
027	7L115689B	PIPE	7L115689B PIPE	$725.81	1
028	N91107101	WASHER	N91107101 WASHER	$4.90	1
029	7L115688B	OILPIPE	7L115688B OILPIPE	$880.39	1
030	400117335	COOLER EXIT CONE	400117335 COOLER EXIT CONE	$1,284.97	1
031	400201365B	GASKET	400201365B GASKET	$18.23	2
032	400117097A	BRACKET	400117097A BRACKET	$497.32	1
033	400317025	LH CONVEYOR	400317025 LH CONVEYOR	$670.19	1
034	7L117015B	OIL COOLER	7L117015B OIL COOLER	$1,427.33	1
035	7L133741	SUPPORT	7L133741 SUPPORT	$14.80	1
036	7L115255	FLANGE	7L115255 FLANGE	$67.08	1
037	WHT000759	STUD BOLT (M6X14)	WHT000759 STUD BOLT (M6X14)	$5.32	2
038	N10129201	O-RING	N10129201 O-RING	$5.14	1
039	1J0711795	SPACER	1J0711795 SPACER	$3.77	2
040	400422095	FAIRLEAD	400422095 FAIRLEAD	$48.72	1
041	7L115333	RUBBER BUFFER	7L115333 RUBBER BUFFER	$23.07	1
042	N90937701	CABLE TIES	N90937701 CABLE TIES	$1.55 MSRP: ~~2.00~~ (22.5% off)	1
