Passenger Compartment Trims

Lamborghini Gallardo LP570 4 SL

Find Your Part

Lamborghini Gallardo LP570 4 SL - Passenger Compartment Trims

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

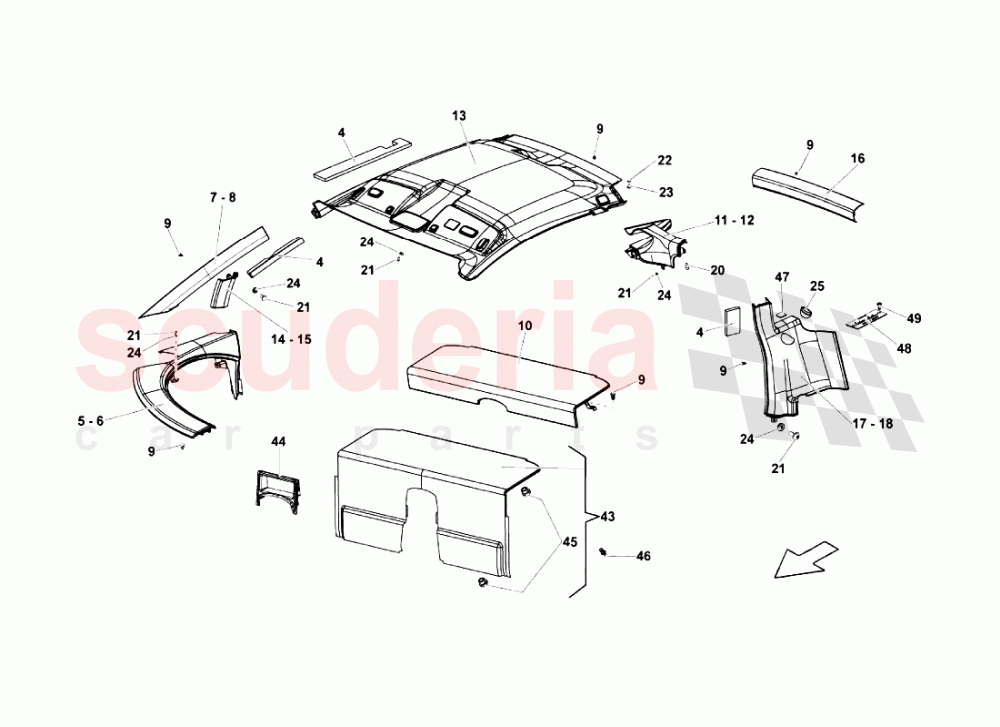

Passenger Compartment Trims of Lamborghini Lamborghini Gallardo LP570 4 SL Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
004 400857345
HEAD PROTECTION PAD KIT 		- 1 Enquire
005 403858345
DASH COWL TRIM, LH (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
006 403858346
DASH COWL TRIM, RH (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
007 400867233D
LEFT A PILLAR COVERING ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
008 400867234D
RIGHT A PILLAR COVERING ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
009 400867299
FASTENER LYS FUSION, YELLOW 		- 20 Enquire
011 403867287C
C-PILLAR COVERING LH (ALCANTARA UPHOLSTERY - WITH 4 POINTS STICHING - SUPPLY VIN) 		- 1 Enquire
011 403867287B
C-PILLAR COVERING LH (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
012 403867288C
C-PILLAR COVERING RH (ALCANTARA UPHOLSTERY - WITH 4 POINTS STICHING - SUPPLY VIN) 		- 1 Enquire
012 403867288B
C-PILLAR COVERING RH (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
013 403868631
ROOF PANEL ASSY (SUPPLY VIN) 		- 1 Enquire
014 400867269D
LH A2-PILLAR COVERING ASSY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
015 400867270D
RH A2-PILLAR COVERING ASSY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
016 400868573D
REAR WINDOW GLASS LOWER COVERING ASSY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
017 403868417C
LH B-PILLAR COVERING ASSY (ALCANTARA UPHOLSTERY - WITH PREDISPOSITION FOR ROLL BAR - SUPPLY 		- 1 Enquire
017 403868417B
LH B-PILLAR COVERING ASSY (ALCANTARA UPHOLSTERY - WITHAUT PREDISPOSITION FOR ROLL BAR - SUPPLY 		- 1 Enquire
018 403868418B
RH B-PILLAR COVERING ASSY (ALCANTARA UPHOLSTERY - WITHAUT PREDISPOSITION FOR ROLL BAR - SUPPLY 		- 1 Enquire
018 403868418C
RH B-PILLAR COVERING ASSY (ALCANTARA UPHOLSTERY - WITH PREDISPOSITION FOR ROLL BAR - SUPPLY 		- 1 Enquire
020 WHT001942
WASHER 		- 2 Enquire
021 WHT003111
SCREW M5X16 		- 17 Enquire
022 N10663401
WASHER 		- 2 Enquire
023 N90659901
OVAL HEXAGON SOCKET HEAD BOLT 		- 2 Enquire
024 WHT000778
WASHER 		- 17 Enquire
025 408868529
SEAT BELT ORNAMENT 		- 2 Enquire
043 403868711D
REAR BENCH ASSY (WITH PREDISPOSITION FOR ROLL BAR - SUPPLY VIN) 		- 1 Enquire
043 404868711C
REAR BENCH ASSY (WITH PREDISPOSITION FOR FIRE EXTINGUISHER - ROLL BAR - SUPPLY 		- 1 Enquire
043 404868711B
REAR BENCH ASSY (WITH PREDISPOSITION FOR FIRE EXTINGUISHER - SUPPLY VIN) 		- 1 Enquire
043 400868711K
REAR BENCH ASSY (STANDARD - FORNIRE VIN) 		- 1 Enquire
045 7L6127477
RUBBER BUSH 		- 6 Enquire
046 7L6805596
JOURNAL 		- 6 Enquire
047 408898052
FASTENER 		- 1 Enquire
047 408898051
FASTENER 		- 1 Enquire
