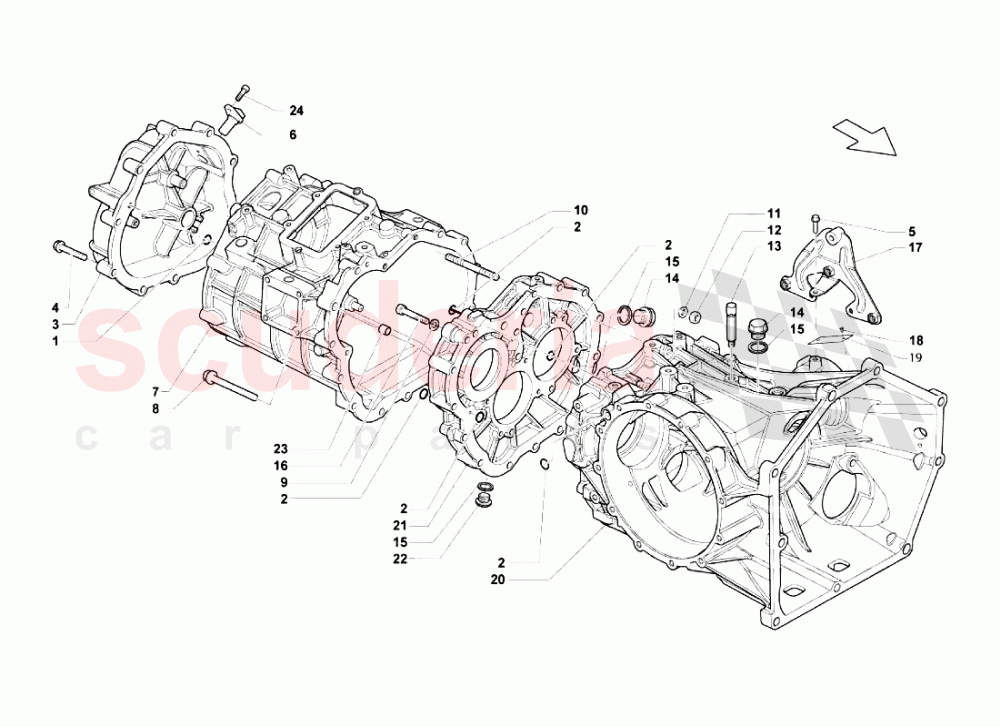

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
002	WHT001492	O-RING	WHT001492 O-RING	-	1	Enquire
003	86301201G	COVER (MANUAL GEARBOX)	86301201G COVER (MANUAL GEARBOX)	-	1	Enquire
003	86301201D	COVER (E-GEAR)	86301201D COVER (E-GEAR)	-	1	Enquire
004	WHT003209	SCREW M8X45	WHT003209 SCREW M8X45	-	10	Enquire
006	86927321	TIMING SENSOR	86927321 TIMING SENSOR	-	1	Enquire
013	86301047B	BREATHER PIPE	86301047B BREATHER PIPE	-	1	Enquire
014	86301114A	PLUG	86301114A PLUG	-	1	Enquire
017	420251375	BRACKET	420251375 BRACKET	-	1	Enquire
022	86301141	MAGNETIC PLUG	86301141 MAGNETIC PLUG	-	1	Enquire
023	86301153B	DOWEL SLEEVE	86301153B DOWEL SLEEVE	-	6	Enquire
