Rear Brakes Discs Std-Ccb

Lamborghini Gallardo LP560 Spyder

Find Your Part

Lamborghini Gallardo LP560 Spyder - Rear Brakes Discs Std-Ccb

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

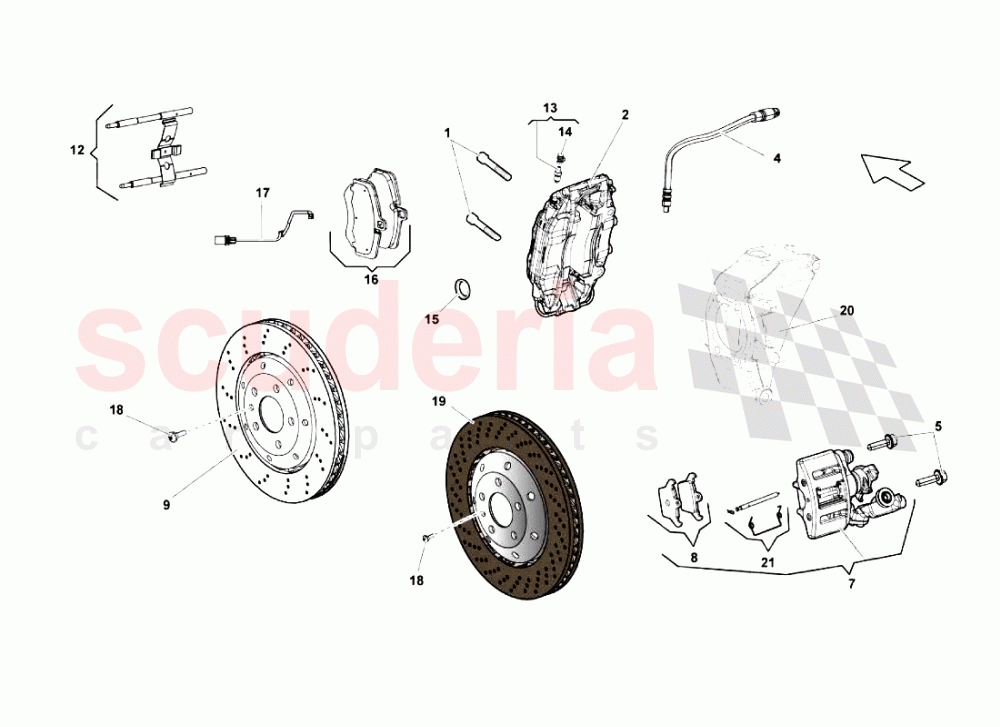

Rear Brakes Discs Std-Ccb of Lamborghini Lamborghini Gallardo LP560 Spyder Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 R1400661
SCREWS RETROFIT KIT FOR CERAMIC BRAKES 		- 1 Enquire
001 N91141801
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD 		- 2 Enquire
002 400615405R
LH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - YELLOW FRONT CALIPERS) 		- 1 Enquire
002 400615406R
RH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - YELLOW REAR CALIPERS) 		- 1 Enquire
002 400615406S
RH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - GREY REAR CALIPERS) 		- 1 Enquire
002 400615405AG
LH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - BLACK REAR CALIPERS - FROM VIN ALA09511) 		- 1 Enquire
002 400615406Q
RH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - BLACK REAR CALIPERS) 		- 1 Enquire
002 400615405S
LH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - GREY REAR CALIPERS) 		- 1 Enquire
002 400615406M
RH REAR BRAKE CALIPER (BLACK REAR CALIPERS) 		- 1 Enquire
002 400615405N
LH REAR BRAKE CALIPER (YELLOW FRONT CALIPERS) 		- 1 Enquire
002 400615406N
RH REAR BRAKE CALIPER (YELLOW REAR CALIPERS) 		- 1 Enquire
002 400615405M
LH REAR BRAKE CALIPER (BLACK REAR CALIPERS) 		- 1 Enquire
002 400615406AG
RH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - BLACK REAR CALIPERS - FROM VIN ALA09511) 		- 1 Enquire
002 400615405Q
LH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - BLACK REAR CALIPERS) 		- 1 Enquire
004 420611775A
BRAKE HOSE 		- 2 Enquire
005 N91105601
HEX COLLARED BOLT 		- 2 Enquire
007 420615404B
RH HAND BRAKE CALIPER (STD/CCB) 		- 1 Enquire
007 420615403A
LH HAND BRAKE CALIPER (STD/CCB) 		- 1 Enquire
008 420698451D
HAND BRAKE PAD SET (STD/CCB) 		- 1 Enquire
009 420615601C
REAR BRAKE DISC 		- 2 Enquire
012 420698269
1 SET ATTACHMENT PARTS 		- 2 Enquire
013 8A0615273
1 SET BLEEDER VALVES WITH DUST CAP 		- 2 Enquire
014 7D0611483
DUST CAP 		- 2 Enquire
015 420698671
SEAL RING 		- 2 Enquire
016 4S0698451AC
BRAKE PADS ET WITH WEAR INDICATOR 		- 1 Enquire
016 420698451F
Rear Brake Pad Set (Carbon Ceramic) 		- 1 Enquire
017 420615437
CONTACTS 		- 2 Enquire
018 N10648301
HEX SOCKET COUNTERSUNK BOLT 		- 2 Enquire
019 4S0615602A
Rear Ceramic Rotor RIGHT HAND SIDE 		- 1 Enquire
019 420615602
CCM RH REAR BRAKE DISC 		- 1 Enquire
019 4S0615601C
CERAMIC BRAKE DISC (VENTED) 		- 1 Enquire
021 420698269A
JOURNAL AND CLIP SET 		- 2 Enquire
