Power Steering of Lamborghini Lamborghini Gallardo LP560 Spyder

View All

Lamborghini Gallardo LP560 Spyder - Power Steering

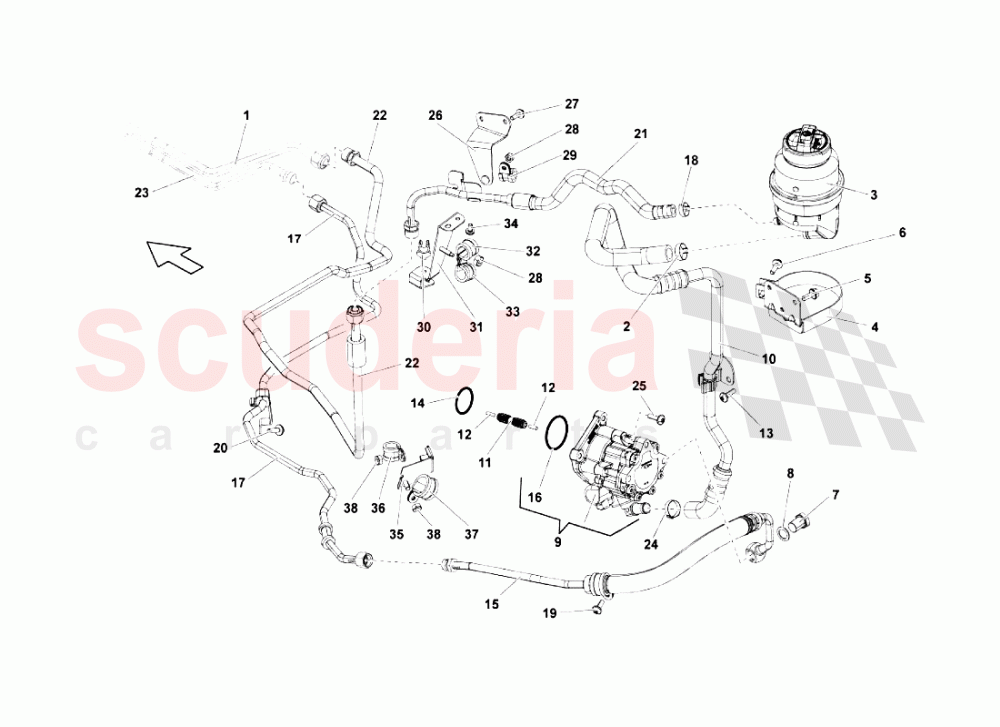

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
002	N90686901	SPRING BAND CLAMP	N90686901 SPRING BAND CLAMP	$0.94	1
003	420422371B	OIL CONTAINER	420422371B OIL CONTAINER	$161.74	1
004	420422493	SUPPORT	420422493 SUPPORT	$66.06	1
005	N901486	SCREW M6X15	N901486 SCREW M6X15	-	3	Enquire
006	N10535502	SCREW M6X30	N10535502 SCREW M6X30	$1.74 MSRP: ~~7.23~~ (75.9% off)	1
007	WHT000507	BANJO BOLT	WHT000507 BANJO BOLT	$13.36	1
008	N138487	WASHER	N138487 WASHER	-	2	Enquire
009	420145157A	PUMP POWER STEERING	420145157A PUMP POWER STEERING	$1,596.56	1
010	407422843A	PIPE	407422843A PIPE	$137.77	1
011	57145225D	DRIVE SHAFT	57145225D DRIVE SHAFT	$58.45	1
012	79145115B	PIN	79145115B PIN	$12.79	2
013	N10664901	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N10664901 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	$3.05 MSRP: ~~7.27~~ (58% off)	1
014	WHT002640	O-RING 42X1.5-N	WHT002640 O-RING 42X1.5-N	$4.95	1
015	420422893F	HOSE	420422893F HOSE	$190.87	1
016	420145117	O-RING 55.8X59.2X3.7X0.85 (TO COMBINE WITH P/N 420145157A)	420145117 O-RING 55.8X59.2X3.7X0.85 (TO COMBINE WITH P/N 420145157A)	$17.70	1
017	420422897C	FEED PIPE	420422897C FEED PIPE	$176.09	1
018	N90770201	SPRING BAND CLAMP	N90770201 SPRING BAND CLAMP	$3.77	1
019	N10124304	OVAL HEXAGON SOCKET HEAD BOLT	N10124304 OVAL HEXAGON SOCKET HEAD BOLT	$1.55	1
020	N10347103	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	N10347103 HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	$1.19 MSRP: ~~7.29~~ (83.7% off)	1
021	407422857	RETURN HOSE	407422857 RETURN HOSE	$198.94	1
022	400422857C	RETURN HOSE	400422857C RETURN HOSE	$151.89	1
024	N10255601	CLAMP	N10255601 CLAMP	$1.96 MSRP: ~~7.10~~ (72.4% off)	1
025	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	N10124306 HEXAGON SOCKET FLAT HEAD BOLT	$1.60	3
030	281611767A	CLAMP	281611767A CLAMP	$1.03 MSRP: ~~7.27~~ (85.8% off)	2
031	420422163A	SUPPORT	420422163A SUPPORT	$49.07	1
032	N206405	CLAMP	N206405 CLAMP	-	1	Enquire
033	N206267	CLAMP	N206267 CLAMP	-	1	Enquire
034	N10335206	HEXAGON SOCKET FLAT HEAD BOLT	N10335206 HEXAGON SOCKET FLAT HEAD BOLT	$1.43	2
035	400422163A	SUPPORT	400422163A SUPPORT	$28.76	1
036	N206015	CLAMP	N206015 CLAMP	-	1	Enquire
037	N206104	CLAMP	N206104 CLAMP	-	1	Enquire
038	N1508213	NUT M6	N1508213 NUT M6	-	2	Enquire
