Power Steering of Lamborghini Lamborghini Gallardo LP560 Coupe

View All

Lamborghini Gallardo LP560 Coupe - Power Steering

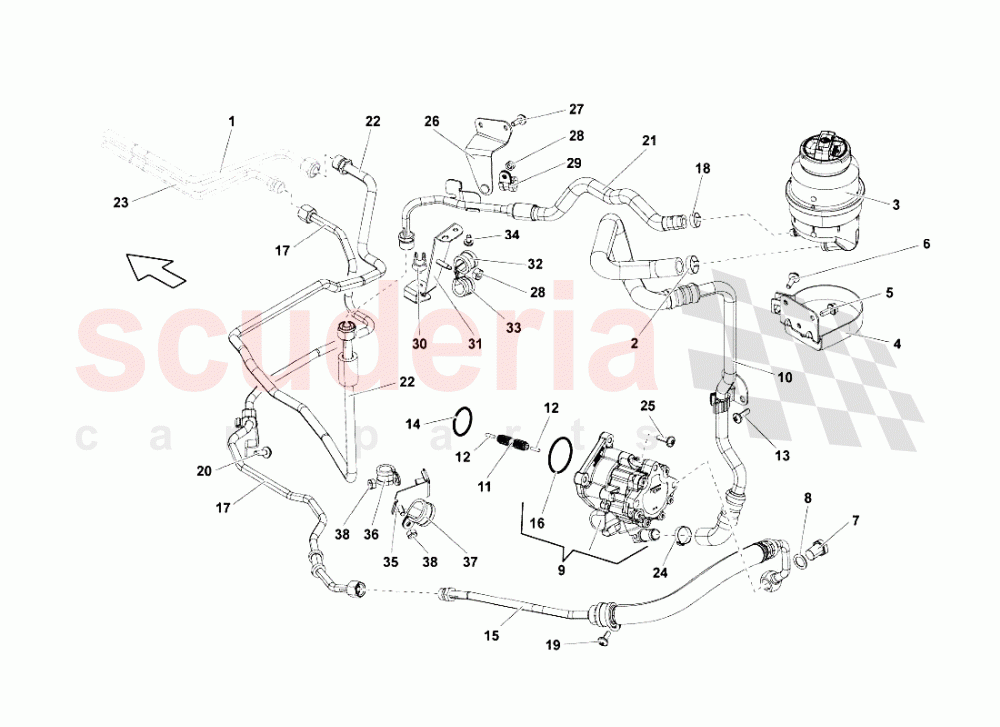

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
002	N90686901	SPRING BAND CLAMP	N90686901 SPRING BAND CLAMP	-	1	Enquire
003	420422371B	OIL CONTAINER	420422371B OIL CONTAINER	-	1	Enquire
004	420422493	SUPPORT	420422493 SUPPORT	-	1	Enquire
005	N0901486	HEXAGON HEAD BOLT (COMBI)	N0901486 HEXAGON HEAD BOLT (COMBI)	-	1	Enquire
006	N10535502	SCREW M6X30	N10535502 SCREW M6X30	-	1	Enquire
007	WHT000507	BANJO BOLT	WHT000507 BANJO BOLT	-	1	Enquire
008	N0138487	SEAL RING	N0138487 SEAL RING	-	1	Enquire
009	420145157A	PUMP	420145157A PUMP	-	1	Enquire
010	420422843G	PIPE	420422843G PIPE	-	1	Enquire
011	57145225D	DRIVE SHAFT	57145225D DRIVE SHAFT	-	1	Enquire
012	79145115B	PIN	79145115B PIN	-	1	Enquire
013	N10664901	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N10664901 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	-	1	Enquire
014	WHT002640	O-RING 42X1.5-N	WHT002640 O-RING 42X1.5-N	-	1	Enquire
015	420422893F	HOSE	420422893F HOSE	-	1	Enquire
016	420145117	O-RING 55.8X59.2X3.7X0.85 (TO COMBINE WITH P/N 420145157A)	420145117 O-RING 55.8X59.2X3.7X0.85 (TO COMBINE WITH P/N 420145157A)	-	1	Enquire
017	420422897C	FEED PIPE	420422897C FEED PIPE	-	1	Enquire
018	N90770201	SPRING BAND CLAMP	N90770201 SPRING BAND CLAMP	-	1	Enquire
019	N10124304	OVAL HEXAGON SOCKET HEAD BOLT	N10124304 OVAL HEXAGON SOCKET HEAD BOLT	-	1	Enquire
020	N10347103	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	N10347103 HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	-	1	Enquire
021	420422857M	RETURN HOSE	420422857M RETURN HOSE	-	1	Enquire
022	400422857C	RETURN HOSE	400422857C RETURN HOSE	-	1	Enquire
024	N10255601	CLAMP	N10255601 CLAMP	-	1	Enquire
025	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	N10124306 HEXAGON SOCKET FLAT HEAD BOLT	-	1	Enquire
026	423422163B	SUPPORT	423422163B SUPPORT	-	1	Enquire
027	N10335206	HEXAGON SOCKET FLAT HEAD BOLT	N10335206 HEXAGON SOCKET FLAT HEAD BOLT	-	2	Enquire
028	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	2	Enquire
029	N0206015	CLAMP	N0206015 CLAMP	-	1	Enquire
030	281611767A	CLAMP	281611767A CLAMP	-	2	Enquire
031	420422163A	SUPPORT	420422163A SUPPORT	-	1	Enquire
032	N0206405	CLAMP	N0206405 CLAMP	-	1	Enquire
033	N0206267	CLAMP	N0206267 CLAMP	-	1	Enquire
034	N10335206	HEXAGON SOCKET FLAT HEAD BOLT	N10335206 HEXAGON SOCKET FLAT HEAD BOLT	-	2	Enquire
035	400422163A	SUPPORT	400422163A SUPPORT	-	1	Enquire
036	N0206015	CLAMP	N0206015 CLAMP	-	1	Enquire
037	N0206104	CLAMP	N0206104 CLAMP	-	1	Enquire
038	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	2	Enquire
