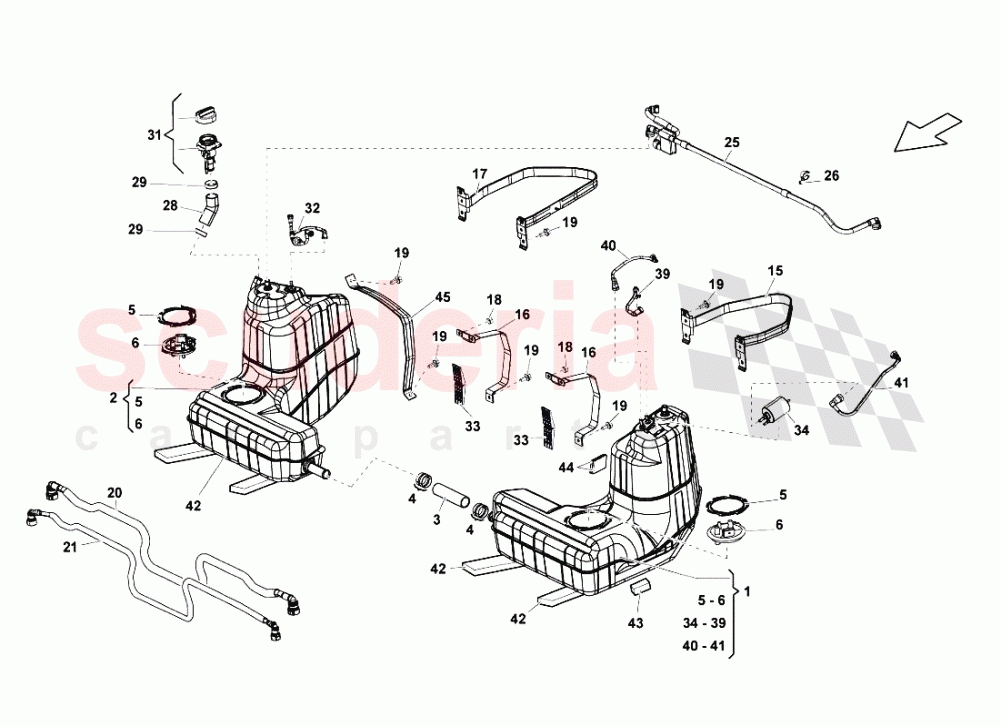

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	408201021B	LH TANK	408201021B LH TANK	$34,563.06	1
002	408201022A	RH TANK	408201022A RH TANK	$58,709.50	1
003	420201143C	PIPE	420201143C PIPE	$77.56	1
004	N91104001	SPRING BAND CLAMP	N91104001 SPRING BAND CLAMP	$6.45	4
015	420201653C	CLAMP	420201653C CLAMP	$62.39	1
016	400201653A	CLAMP	400201653A CLAMP	$83.34	2
017	420201654C	CLAMP	420201654C CLAMP	$68.55	1
018	N10340103	HEXAGON COLLAR NUT	N10340103 HEXAGON COLLAR NUT	$2.29 MSRP: ~~7.24~~ (68.4% off)	4
019	N90994402	SCREW M8X30	N90994402 SCREW M8X30	$12.51	6
020	420201420	PIPE	420201420 PIPE	$225.13	1
021	420201419	PIPE	420201419 PIPE	$69.77	1
025	400201167	PIPE	400201167 PIPE	$328.65	1
026	420201449	SECURING CLIP	420201449 SECURING CLIP	$69.35	2
032	400201163C	PIPE	400201163C PIPE	$239.93	1
033	420201645	PROTECTION	420201645 PROTECTION	$11.41	2
042	420201365	UNDERLAY	420201365 UNDERLAY	$19.42	4
043	400201365G	PROTECTION	400201365G PROTECTION	$5.19	2
044	443201365B	UNDERLAY	443201365B UNDERLAY	$7.40	4
