Accelerator Pedal (E-Gear) of Lamborghini Lamborghini Gallardo (2006-2007)

View All

Lamborghini Gallardo (2006-2007) - Accelerator Pedal (E-Gear)

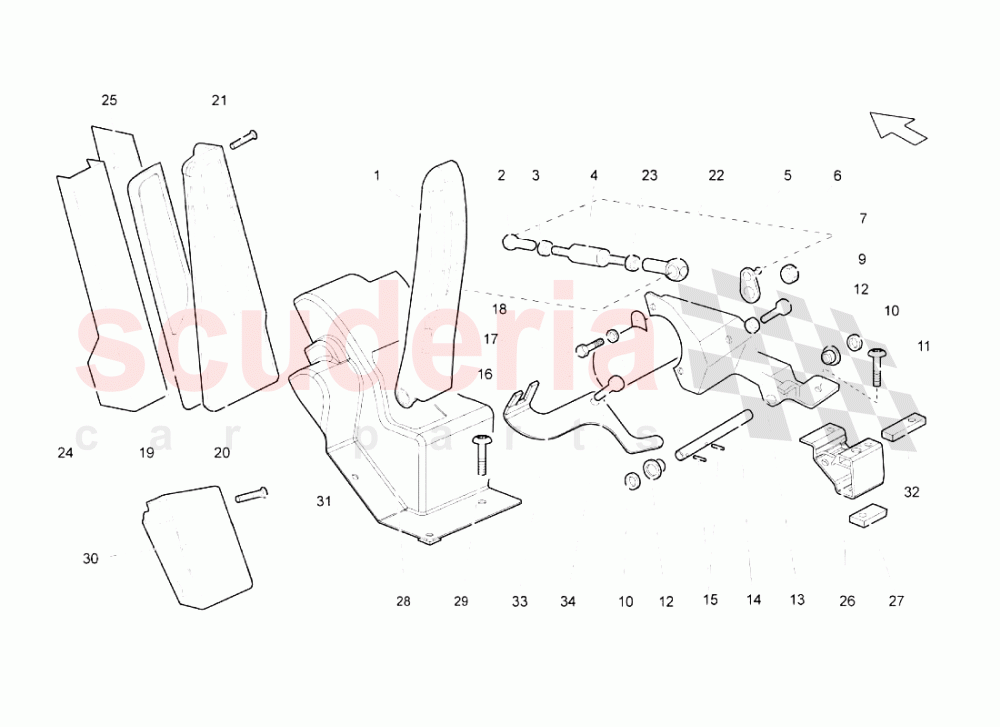

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WHT000697	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400721543	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N1100830	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400721157	JOURNAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8900204	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400907475A	POTENTIOMETER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8700614	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8400628	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	401864431	RUBBER FOOT MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	401864419B	FOOTREST DRIVER SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10648801	SCREW M6X80 (GDX AUTOMATIC GEARBOX)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400721214A	BALL JOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8200501	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	401864523A	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	401864431B	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400803427A	U-BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	401803016	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	401721585A	ACCELERATOR COVER BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400723325B	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	402971890	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90847903	Screw M6X15	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	400721507A	ACCELERATOR PEDAL	400721507A ACCELERATOR PEDAL	-	1	Enquire
02	400721214E	BALL JOINT HEAD (LEFT HAND THREAD)	400721214E BALL JOINT HEAD (LEFT HAND THREAD)	-	1	Enquire
03	8200504	NUT (LEFT HAND THREAD)	8200504 NUT (LEFT HAND THREAD)	-	2	Enquire
04	400721743	SHAFT	400721743 SHAFT	-	1	Enquire
05	400721651A	SUPPORT	400721651A SUPPORT	-	1	Enquire
06	400721728	LEVER	400721728 LEVER	-	1	Enquire
07	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	1	Enquire
09	N0103351	SCREW M8X35	N0103351 SCREW M8X35	-	1	Enquire
10	WHT000697	WASHER	WHT000697 WASHER	-	2	Enquire
11	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	N91000203 OVAL HEXAGON SOCKET HEAD BOLT	-	6	Enquire
12	400721543	BUSHING	400721543 BUSHING	-	2	Enquire
13	N1100830	NUT	N1100830 NUT	-	1	Enquire
14	400721157	JOURNAL	400721157 JOURNAL	-	1	Enquire
15	8900204	PIN	8900204 PIN	-	2	Enquire
16	400907475A	POTENTIOMETER	400907475A POTENTIOMETER	-	1	Enquire
17	8700614	SCREW	8700614 SCREW	-	2	Enquire
18	8400628	WASHER	8400628 WASHER	-	2	Enquire
19	401864431	RUBBER FOOT MAT	401864431 RUBBER FOOT MAT	-	1	Enquire
20	401864419B	FOOTREST DRIVER SIDE	401864419B FOOTREST DRIVER SIDE	-	1	Enquire
21	N10648801	SCREW M6X80 (GDX AUTOMATIC GEARBOX)	N10648801 SCREW M6X80 (GDX AUTOMATIC GEARBOX)	-	2	Enquire
22	400721214A	BALL JOINT HEAD	400721214A BALL JOINT HEAD	-	1	Enquire
23	8200501	NUT	8200501 NUT	-	2	Enquire
24	401864523A	SUPPORT	401864523A SUPPORT	-	1	Enquire
25	401864431B	COVER	401864431B COVER	-	1	Enquire
26	400803427A	U-BOLT	400803427A U-BOLT	-	1	Enquire
27	401803016	PLATE	401803016 PLATE	-	2	Enquire
28	401721585A	ACCELERATOR COVER BOX	401721585A ACCELERATOR COVER BOX	-	1	Enquire
29	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	N91000203 OVAL HEXAGON SOCKET HEAD BOLT	-	1	Enquire
32	400723325B	PLATE	400723325B PLATE	-	1	Enquire
33	402971890	BRACKET	402971890 BRACKET	-	1	Enquire
34	N90847903	Screw M6X15	N90847903 Screw M6X15	-	1	Enquire
