Electrical System 1

Lamborghini Gallardo (2006-2007)

Find Your Part

Lamborghini Gallardo (2006-2007) - Electrical System 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
7L905534 INJECTION WIRING HARNESS 40457 (FOR GSX CARS) $3,830.64 To Order
Photo Part No Description Price (each) Stock
400970264 TUNNEL WIRING HARNESS $62.89 To Order
Photo Part No Description Price (each) Stock
401971035A DOOR WIRING HARNESS (DRIVER SIDE) $214.41 To Order
Photo Part No Description Price (each) Stock
400971235A CABLE $545.70 To Order
Photo Part No Description Price (each) Stock
400971793A CABLE $627.70 To Order
Photo Part No Description Price (each) Stock
401971581 AIRBAG WIRING HARNESS $352.15 To Order
Photo Part No Description Price (each) Stock
401971315 WIRING HARNESS DASHBOARD (GSX VERSIONS WITHOUT NAVIGATOR) $1,159.93 To Order
401971315B WIRING HARNESS DASHBOARD (GSX VERSIONS WITH NAVIGATOR) $1,498.67 To Order
Photo Part No Description Price (each) Stock
400971679 WIRING HARNESS (PASSENGER SIDE DRAWER) $37.80 To Order
Photo Part No Description Price (each) Stock
400971899 CLAMP ( - 23 MM) $7.68 To Order
400971906 CLAMP ( - 28 MM) $1.81 To Order
Photo Part No Description Price (each) Stock
3D0971838A CABLE TIE WITH HOLDER FOR WELD PIN: $2.84 To Order
Photo Part No Description Price (each) Stock
3D0971838D CABLE TIES $2.84 To Order
Photo Part No Description Price (each) Stock
3D0971497D CABLE TIE WITH TERMINAL SOCKET $2.69 IN STOCK
Photo Part No Description Price (each) Stock
400971503 LH BRACKET $28.84 To Order
Photo Part No Description Price (each) Stock
400971504 RH BRACKET $28.84 To Order
Photo Part No Description Price (each) Stock
N10082911 SCREW M6X16 $0.68 IN STOCK
Photo Part No Description Price (each) Stock
N10003703 SCREW M6X17.00 (M6X17) $0.70 To Order
Photo Part No Description Price (each) Stock
1J0973803 FLAT CONTACT HOUSING WITH CONTACT LOCKING MECHANISM $7.13 To Order
Photo Part No Description Price (each) Stock
3D0973703 CONNECTOR FOR LICENSE PLATE'S LIGHT'S WIRING $9.67 To Order
View All

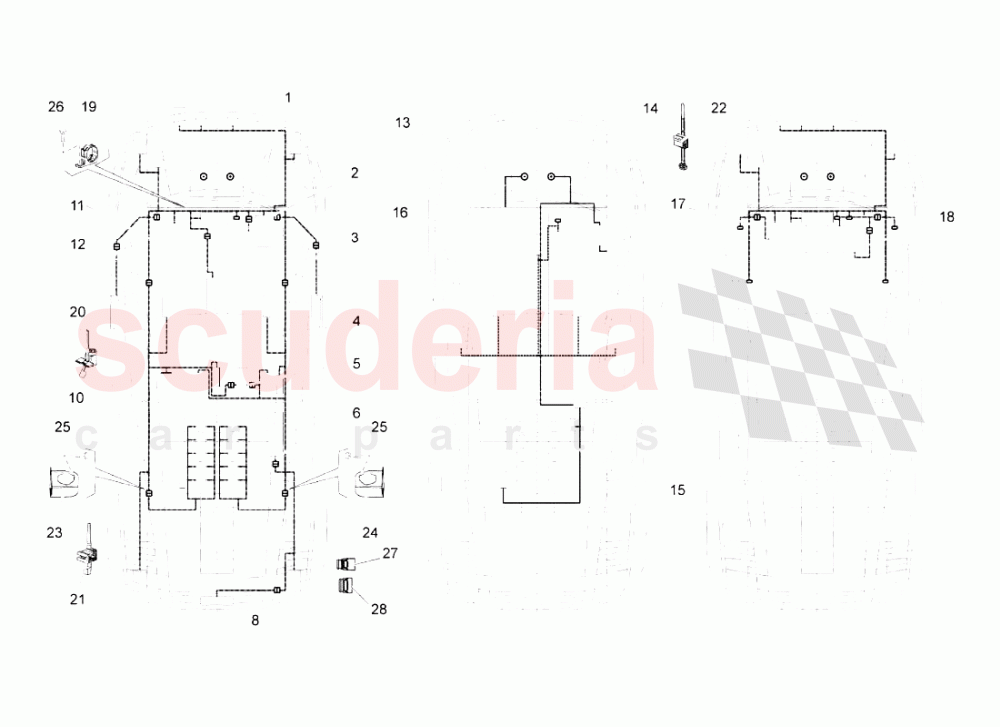

Electrical System 1 of Lamborghini Lamborghini Gallardo (2006-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
01 401971135
CENTRAL WIRING HARNESS (GSX VERSIONS WITHOUT NAVIGATOR) 		$3,864.24 1
01 401971135B
CENTRAL WIRING HARNESS (GSX EUROPE VERSIONS WITH NAVIGATOR) 		$4,697.57 1
02 400971107
WIRING HARNESS 		$171.37 1
03 400971036A
DOOR WIRING HARNESS (PASSENGER SIDE) 		$200.26 1
04 7L905532D
INJECTION WIRING HARNESS 1-5 (GSX MANUAL GEARBOX VERSIONS) 		$4,637.10 1
04 7L905532A
INJECTION WIRING HARNESS 1-5 (GSX AUTOMATIC GEARBOX) 		$6,512.08 1
05 400971258
ENGINE RELAY BOX WIRING HARNESS 		$1,364.25 1
06 400971771
WIRING HARNESS (E-GEAR) 		$196.92 1
08 400971194A
WIRING HARNESS 		$217.75 1
10 7L905534
INJECTION WIRING HARNESS 40457 (FOR GSX CARS) 		$3,830.64 1
11 400970264
TUNNEL WIRING HARNESS 		$62.89 1
12 401971035A
DOOR WIRING HARNESS (DRIVER SIDE) 		$214.41 1
13 400971235A
CABLE 		$545.70 1
15 400971793A
CABLE 		$627.70 1
16 401971581
AIRBAG WIRING HARNESS 		$352.15 1
17 401971315
WIRING HARNESS DASHBOARD (GSX VERSIONS WITHOUT NAVIGATOR) 		$1,159.93 1
17 401971315B
WIRING HARNESS DASHBOARD (GSX VERSIONS WITH NAVIGATOR) 		$1,498.67 1
18 400971679
WIRING HARNESS (PASSENGER SIDE DRAWER) 		$37.80 1
19 400971899
CLAMP ( - 23 MM) 		$7.68 3
19 400971906
CLAMP ( - 28 MM) 		$1.81 1
20 3D0971838A
CABLE TIE WITH HOLDER FOR WELD PIN: 		$2.84 5
21 3D0971838D
CABLE TIES 		$2.84 3
22 3D0971497D
CABLE TIE WITH TERMINAL SOCKET
IN STOCK 		$2.69 (62.8% off) 2
23 400971503
LH BRACKET 		$28.84 1
24 400971504
RH BRACKET 		$28.84 1
25 N10082911
SCREW M6X16
IN STOCK 		$0.68 4
26 N10003703
SCREW M6X17.00 (M6X17) 		$0.70 (90.4% off) 4
27 1J0973803
FLAT CONTACT HOUSING WITH CONTACT LOCKING MECHANISM 		$7.13 1
28 3D0973703
CONNECTOR FOR LICENSE PLATE'S LIGHT'S WIRING 		$9.67 1
