Passenger Side Drawer of Lamborghini Lamborghini Gallardo (2003-2005)

View All

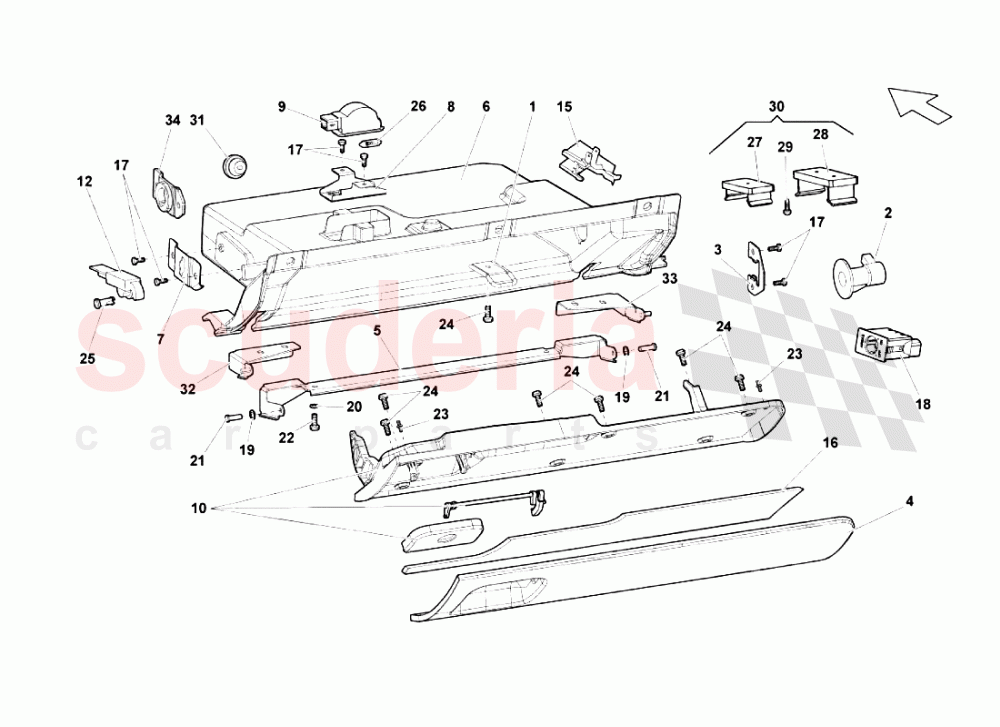

Lamborghini Gallardo (2003-2005) - Passenger Side Drawer

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	402858413G	GLOVE BOX LID INSIDE (KIT WITH HANDLE) R/H/D	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4B2880324	REFRAINING ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8L0947315	SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400863095	SOUNDPROOFING MATERIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90562401	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N126252	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N1154012	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10639701	JOURNAL 5X20 (UNTIL THE VIN 9LA08721)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10596301	SCREW M5X25.0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91092001	RUBBER STOP 4.50X2.2X8.60	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400857653	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N177252	BULB	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	400857133A	CLOSING BRACKET	400857133A CLOSING BRACKET	-	1	Enquire
02	400919237	SWITCH	400919237 SWITCH	-	1	Enquire
03	400959767	LODGING	400959767 LODGING	-	1	Enquire
04	402857121C	GLOVE BOX COVER ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	402857121C GLOVE BOX COVER ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
04	402857121B	GLOVE BOX COVER ASSEMBLY (LEATHER UPHOLSTERY - SUPPLY VIN)	402857121B GLOVE BOX COVER ASSEMBLY (LEATHER UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
05	402857156	SUPPORT	402857156 SUPPORT	-	1	Enquire
05	402857156A	SUPPORT (UNTIL THE VIN 9LA08721)	402857156A SUPPORT (UNTIL THE VIN 9LA08721)	-	1	Enquire
06	402857923A	LOWER RIGHT DASHBOARD ASSEMBLY (UNTIL THE VIN 9LA08721)	402857923A LOWER RIGHT DASHBOARD ASSEMBLY (UNTIL THE VIN 9LA08721)	-	1	Enquire
07	402858693	BRACKET (UNTIL THE VIN 9LA08721)	402858693 BRACKET (UNTIL THE VIN 9LA08721)	-	1	Enquire
08	402947307	BRACKET	402947307 BRACKET	-	1	Enquire
09	331947113	ROOF LAMP	331947113 ROOF LAMP	-	1	Enquire
10	402858413G	GLOVE BOX LID INSIDE (KIT WITH HANDLE) R/H/D	402858413G GLOVE BOX LID INSIDE (KIT WITH HANDLE) R/H/D	-	1	Enquire
12	4B2880324	REFRAINING ELEMENT	4B2880324 REFRAINING ELEMENT	-	1	Enquire
15	8L0947315	SWITCH	8L0947315 SWITCH	-	1	Enquire
16	400863095	SOUNDPROOFING MATERIAL	400863095 SOUNDPROOFING MATERIAL	-	1	Enquire
17	N90562401	SCREW	N90562401 SCREW	-	6	Enquire
19	N126252	SEAL RING	N126252 SEAL RING	-	2	Enquire
20	N1154012	WASHER	N1154012 WASHER	-	2	Enquire
21	N10639701	JOURNAL 5X20 (UNTIL THE VIN 9LA08721)	N10639701 JOURNAL 5X20 (UNTIL THE VIN 9LA08721)	-	2	Enquire
22	N10596301	SCREW M5X25.0	N10596301 SCREW M5X25.0	-	2	Enquire
23	N91092001	RUBBER STOP 4.50X2.2X8.60	N91092001 RUBBER STOP 4.50X2.2X8.60	-	2	Enquire
24	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	N90944603 OVAL HEXAGON SOCKET HEAD BOLT	-	7	Enquire
25	400857653	CLIP	400857653 CLIP	-	1	Enquire
26	N177252	BULB	N177252 BULB	-	1	Enquire
