Air Conditioning System 3 of Lamborghini Lamborghini Gallardo (2003-2005)

View All

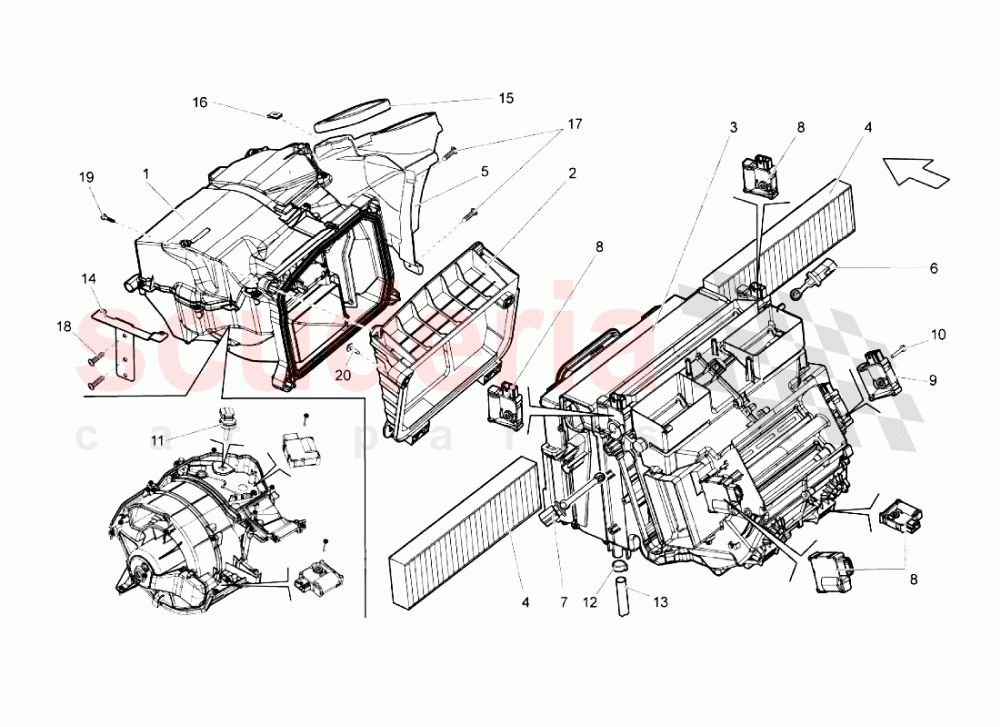

Lamborghini Gallardo (2003-2005) - Air Conditioning System 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WHT000703	SCREW M4X15	Enquire	To Order
	WHT000704	SCREW M4X26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10201801	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400260169	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400815135A	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400820061	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000916A	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10472101	SCREW M6X40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10553804	HEXAGON HEAD BOLT (COMBI)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	4F0820155	HVAC UNIT (UNTIL THE VIN 4LA00953)	4F0820155 HVAC UNIT (UNTIL THE VIN 4LA00953)	-	1	Enquire
01	4F0820115F	HVAC UNIT (FROM VIN 4LA00954)	4F0820115F HVAC UNIT (FROM VIN 4LA00954)	-	1	Enquire
02	400820491	MANIFOLD	400820491 MANIFOLD	-	1	Enquire
03	400820351A	DISTRIBUTION CLIMATE BOX (FROM VIN 4LA00954)	400820351A DISTRIBUTION CLIMATE BOX (FROM VIN 4LA00954)	-	1	Enquire
03	400820351	DISTRIBUTION CLIMATE BOX (UNTIL THE VIN 4LA00953)	400820351 DISTRIBUTION CLIMATE BOX (UNTIL THE VIN 4LA00953)	-	1	Enquire
04	4F0898438C	Kit - Filter	4F0898438C Kit - Filter	-	1	Enquire
05	400820686	CONVEYOR	400820686 CONVEYOR	-	1	Enquire
06	4F0820539	TEMPERATURE SENSOR	4F0820539 TEMPERATURE SENSOR	-	1	Enquire
07	4F0820539A	TEMPERATURE SENSOR	4F0820539A TEMPERATURE SENSOR	-	2	Enquire
08	4F0820511A	ACTUATOR	4F0820511A ACTUATOR	-	6	Enquire
09	4F0820511B	ACTUATOR	4F0820511B ACTUATOR	-	1	Enquire
10	WHT000703	SCREW M4X15	WHT000703 SCREW M4X15	-	6	Enquire
10	WHT000704	SCREW M4X26	WHT000704 SCREW M4X26	-	9	Enquire
12	N10201801	CLAMP	N10201801 CLAMP	-	2	Enquire
13	400260169	PIPE	400260169 PIPE	-	2	Enquire
14	400815135A	BRACKET	400815135A BRACKET	-	1	Enquire
15	400820061	GASKET	400820061 GASKET	-	1	Enquire
16	WHT000916A	CLIP	WHT000916A CLIP	-	1	Enquire
17	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	N90986803 HEXAGON SOCKET HEAD PANEL BOLT	-	4	Enquire
19	N10472101	SCREW M6X40	N10472101 SCREW M6X40	-	4	Enquire
20	N10553804	HEXAGON HEAD BOLT (COMBI)	N10553804 HEXAGON HEAD BOLT (COMBI)	-	4	Enquire
