Electrical System 2 of Lamborghini Lamborghini Gallardo (2003-2005)

View All

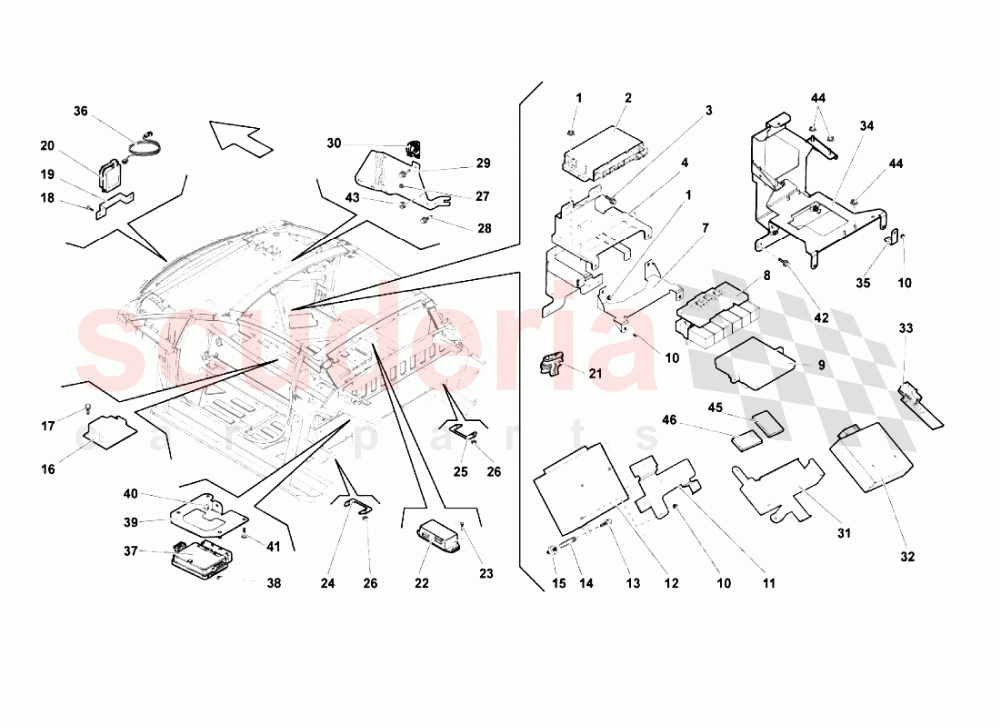

Lamborghini Gallardo (2003-2005) - Electrical System 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N01508213	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400959497	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400959433AD	GFA CONTROL UNIT (SUPPLY VIN - TO BE PROGRAMMED)	Enquire	To Order
	400959433D	GFA CONTROL UNIT (SUPPLY VIN - TO BE PROGRAMMED)	Enquire	To Order
	400959433B	GFA CONTROL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90847903	Screw M6X15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400972895	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400972081	FLEXIBLE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408959655	AIRBAG CONTROL UNIT + SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0902423	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10082911	SCREW M6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400807777	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0909511	BOX DOOR CONTROL E.C.U. (EUROPEAN VERSION)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	410971946	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400971532	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400971532	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508213	HEXAGON COLLAR NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	N10017302	NUT M5	N10017302 NUT M5	-	5	Enquire
02	8H0959433F	COMFORT CONTROL UNIT (433.92 MHZ REMOTE CONTROL)	8H0959433F COMFORT CONTROL UNIT (433.92 MHZ REMOTE CONTROL)	-	1	Enquire
03	N10049308	HEXAGON HEAD BOLT (COMBI)	N10049308 HEXAGON HEAD BOLT (COMBI)	-	4	Enquire
04	402907285	BRACKET	402907285 BRACKET	-	1	Enquire
07	400941645A	BRACKET	400941645A BRACKET	-	1	Enquire
08	400971107	WIRING HARNESS	400971107 WIRING HARNESS	-	1	Enquire
09	400907279	ILM CONTROL UNIT	400907279 ILM CONTROL UNIT	-	1	Enquire
10	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	5	Enquire
11	400959497	BRACKET	400959497 BRACKET	-	1	Enquire
12	400959433AD	GFA CONTROL UNIT (SUPPLY VIN - TO BE PROGRAMMED)	400959433AD GFA CONTROL UNIT (SUPPLY VIN - TO BE PROGRAMMED)	-	1	Enquire
12	400959433D	GFA CONTROL UNIT (SUPPLY VIN - TO BE PROGRAMMED)	400959433D GFA CONTROL UNIT (SUPPLY VIN - TO BE PROGRAMMED)	-	1	Enquire
12	400959433B	GFA CONTROL UNIT	400959433B GFA CONTROL UNIT	-	1	Enquire
13	N90847903	Screw M6X15	N90847903 Screw M6X15	-	3	Enquire
14	400972895	SPACER	400972895 SPACER	-	3	Enquire
15	400972081	FLEXIBLE SUPPORT	400972081 FLEXIBLE SUPPORT	-	3	Enquire
16	408959655	AIRBAG CONTROL UNIT + SENSOR	408959655 AIRBAG CONTROL UNIT + SENSOR	-	1	Enquire
17	N0902423	SCREW	N0902423 SCREW	-	3	Enquire
18	N10082911	SCREW M6X16	N10082911 SCREW M6X16	-	2	Enquire
19	400807777	BRACKET	400807777 BRACKET	-	1	Enquire
20	8E0909511	BOX DOOR CONTROL E.C.U. (EUROPEAN VERSION)	8E0909511 BOX DOOR CONTROL E.C.U. (EUROPEAN VERSION)	-	1	Enquire
21	410971946	CONNECTOR	410971946 CONNECTOR	-	1	Enquire
24	400971532	BRACKET	400971532 BRACKET	-	1	Enquire
25	400971532	BRACKET	400971532 BRACKET	-	1	Enquire
26	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	4	Enquire
