Driver Side Drawer

Lamborghini Gallardo (2008)

Find Your Part

Lamborghini Gallardo (2008) - Driver Side Drawer

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

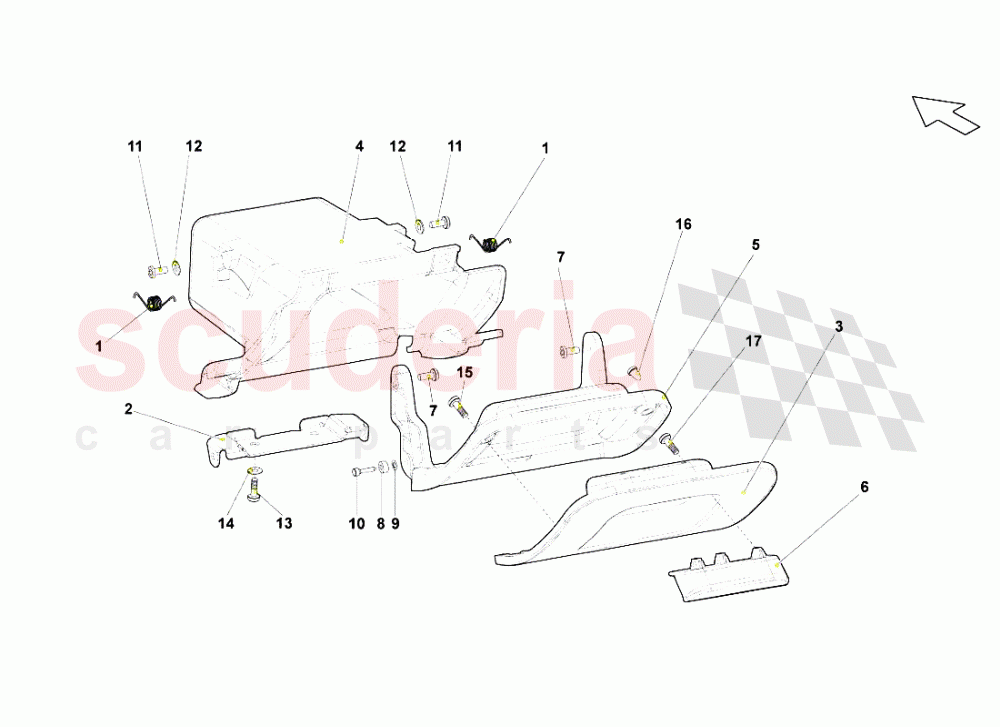

Driver Side Drawer of Lamborghini Lamborghini Gallardo (2008) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 400858998
RH SPRING 		- 1 Enquire
001 400858997
LH SPRING 		- 1 Enquire
002 400867075
BRACKET 		- 1 Enquire
003 401857121B
GLOVE BOX LID ASSEMBLY (PERFORATED LEATHER INTERIOR -SUPPLY VIN) 		- 1 Enquire
003 401857121A
GLOVE BOX LID ASSEMBLY (LEFT-HAND DRIVE ALCANTARA UPHOLSTERY - PROVIDE VIN) 		- 1 Enquire
003 401857121
GLOVE BOX LID ASSEMBLY (LEFT-HAND DRIVE LEATHER UPHOLSTERY - PROVIDE VIN) 		- 1 Enquire
004 401857923A
LOWER LEFT DASHBOARD ASSEMBLY 		- 1 Enquire
005 401858413A
GLOVE BOX LID INSIDE 		- 1 Enquire
006 401858921A
CONTROL 		- 1 Enquire
007 N90632303
HEXAGON SOCKET HEAD PANEL BOLT 		- 2 Enquire
008 400867538
SPACER 		- 2 Enquire
009 N90657502
CLAMPING WASHER 		- 2 Enquire
010 N10639701
JOURNAL 5X20 (UNTIL THE VIN 9LA08721) 		- 2 Enquire
011 N90562401
SCREW 		- 2 Enquire
012 WHT000778
WASHER 		- 2 Enquire
013 N10596302
SCREW M5X25.0 		- 2 Enquire
014 N01152427
WASHER 		- 2 Enquire
015 N10406602
OVAL HEXAGON SOCKET HEAD BOLT 		- 3 Enquire
016 N91092001
RUBBER STOP 4.50X2.2X8.60 		- 2 Enquire
017 N90562401
SCREW 		- 6 Enquire
