Brake System of Lamborghini Lamborghini Gallardo (2008)

View All

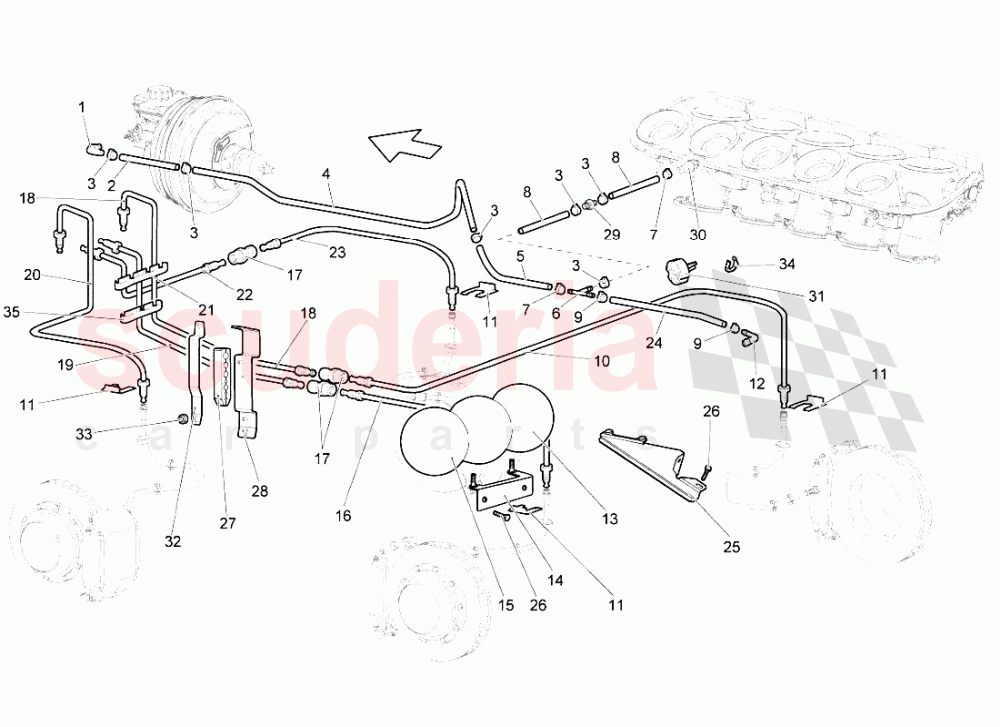

Lamborghini Gallardo (2008) - Brake System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400616807	CHECK VALVE	400616807 CHECK VALVE	-	1	Enquire
002	401611971B	HOSE	401611971B HOSE	-	1	Enquire
003	N10201901	CLAMP	N10201901 CLAMP	-	6	Enquire
004	400611936A	PIPE	400611936A PIPE	-	1	Enquire
005	400611940B	HOSE	400611940B HOSE	-	1	Enquire
006	400611921	CONNECTOR	400611921 CONNECTOR	-	1	Enquire
007	N0245097	CLAMP	N0245097 CLAMP	-	1	Enquire
008	400611937C	HOSE	400611937C HOSE	-	2	Enquire
009	400251189E	CLAMP	400251189E CLAMP	-	2	Enquire
010	400611742B	RH PIPE	400611742B RH PIPE	-	1	Enquire
011	191611715	HOSE BRACKET	191611715 HOSE BRACKET	-	7	Enquire
012	400612173	CONNECTOR	400612173 CONNECTOR	-	1	Enquire
013	N10017303	NUT	N10017303 NUT	-	2	Enquire
014	400611797	BRACKET	400611797 BRACKET	-	1	Enquire
015	443131541	VACUUM TANK ASSEMBLY	443131541 VACUUM TANK ASSEMBLY	-	1	Enquire
016	400611741A	LH PIPE	400611741A LH PIPE	-	1	Enquire
017	400611809	CONNECTING PIECE	400611809 CONNECTING PIECE	-	3	Enquire
018	400611764A	RH REAR PIPE	400611764A RH REAR PIPE	-	1	Enquire
019	400611763A	LH PIPE	400611763A LH PIPE	-	1	Enquire
020	400611761A	LH PIPE	400611761A LH PIPE	-	1	Enquire
021	6N0611797D	CLAMP	6N0611797D CLAMP	-	3	Enquire
022	400611762A	RH FRONT PIPE	400611762A RH FRONT PIPE	-	1	Enquire
023	400611724	RH PIPE	400611724 RH PIPE	-	1	Enquire
024	400611939A	HOSE	400611939A HOSE	-	1	Enquire
026	N10171105	SCREW M6X16	N10171105 SCREW M6X16	-	2	Enquire
027	400121220D	RUBBER SUPPORT	400121220D RUBBER SUPPORT	-	8	Enquire
029	410616807	VALVE	410616807 VALVE	-	1	Enquire
031	1J0611853	SPACER	1J0611853 SPACER	-	6	Enquire
032	400121097A	BRACKET	400121097A BRACKET	-	2	Enquire
033	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	4	Enquire
034	400611799	BRACKET 0 5 MM	400611799 BRACKET 0 5 MM	-	12	Enquire
035	8Z0611797C	CLAMP	8Z0611797C CLAMP	-	1	Enquire
