Electrical System 1 of Lamborghini Lamborghini Gallardo (2008)

View All

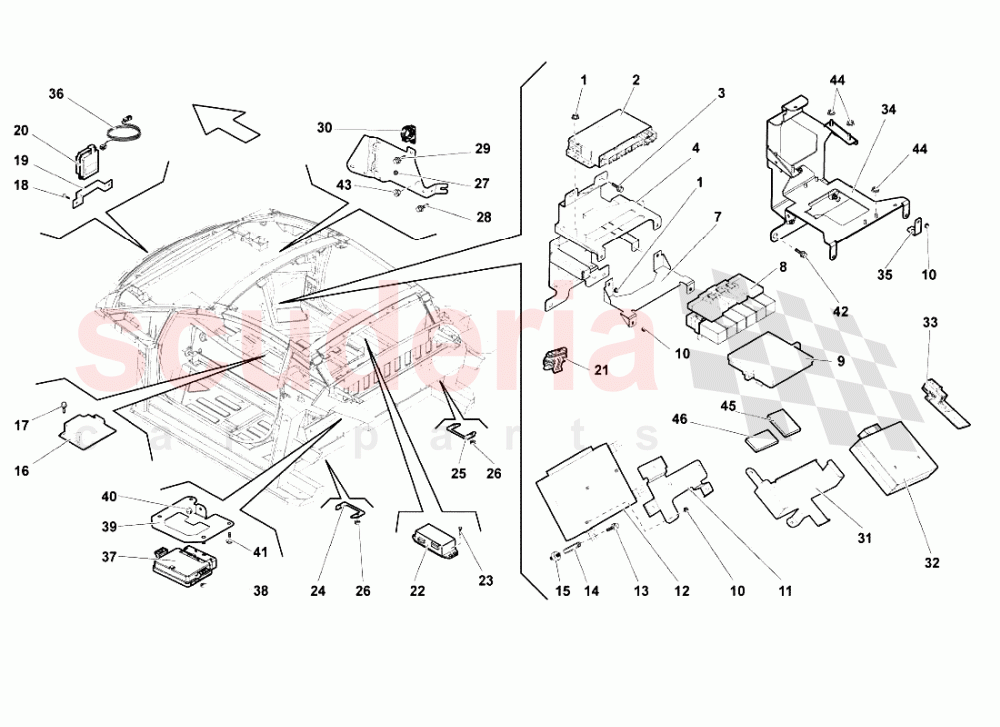

Lamborghini Gallardo (2008) - Electrical System 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N10017307	HEXAGON COLLAR NUT	N10017307 HEXAGON COLLAR NUT	-	6	Enquire
002	8H0959433M	COMFORT CONTROL UNIT (433.92 MHZ REMOTE CONTROL)	8H0959433M COMFORT CONTROL UNIT (433.92 MHZ REMOTE CONTROL)	-	1	Enquire
009	400907279	ILM CONTROL UNIT	400907279 ILM CONTROL UNIT	-	1	Enquire
010	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	2	Enquire
012	400959433BE	GFA CONTROL UNIT (SUPPLY VIN - TO BE PROGRAMMED)	400959433BE GFA CONTROL UNIT (SUPPLY VIN - TO BE PROGRAMMED)	-	1	Enquire
012	400959433BD	GFA CONTROL UNIT (SUPPLY VIN - TO BE PROGRAMMED)	400959433BD GFA CONTROL UNIT (SUPPLY VIN - TO BE PROGRAMMED)	-	1	Enquire
013	N90847903	Screw M6X15	N90847903 Screw M6X15	-	3	Enquire
014	400972895	SPACER	400972895 SPACER	-	3	Enquire
015	400972081	FLEXIBLE SUPPORT	400972081 FLEXIBLE SUPPORT	-	3	Enquire
016	408959655	AIRBAG CONTROL UNIT + SENSOR	408959655 AIRBAG CONTROL UNIT + SENSOR	-	1	Enquire
017	N0902424	SCREW M6X18	N0902424 SCREW M6X18	-	3	Enquire
018	N10082911	SCREW M6X16	N10082911 SCREW M6X16	-	2	Enquire
019	400807777	BRACKET	400807777 BRACKET	-	1	Enquire
020	8E0909511	BOX DOOR CONTROL E.C.U. (EUROPEAN VERSION)	8E0909511 BOX DOOR CONTROL E.C.U. (EUROPEAN VERSION)	-	1	Enquire
021	410971946	CONNECTOR	410971946 CONNECTOR	-	1	Enquire
022	400907441C	REAR VIEW CAMERA CONTROL UNIT	400907441C REAR VIEW CAMERA CONTROL UNIT	-	1	Enquire
023	N10082911	SCREW M6X16	N10082911 SCREW M6X16	-	2	Enquire
024	400971532	BRACKET	400971532 BRACKET	-	1	Enquire
025	400971532	BRACKET	400971532 BRACKET	-	1	Enquire
026	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	4	Enquire
027	400907371B	BRACKET	400907371B BRACKET	-	1	Enquire
028	N90847903	Screw M6X15	N90847903 Screw M6X15	-	2	Enquire
029	N10082911	SCREW M6X16	N10082911 SCREW M6X16	-	1	Enquire
031	400907815	BRACKET	400907815 BRACKET	-	1	Enquire
032	8P0862335Q	CELLULAR PHONE	8P0862335Q CELLULAR PHONE	-	1	Enquire
033	8P0035503E	ANTENNA BLUETOOTH	8P0035503E ANTENNA BLUETOOTH	-	1	Enquire
034	400907285C	BRACKET	400907285C BRACKET	-	1	Enquire
035	7L133031	BRACKET	7L133031 BRACKET	-	1	Enquire
036	400971257	WIRING HARNESS BOX DOOR CONTROL E.C.U.	400971257 WIRING HARNESS BOX DOOR CONTROL E.C.U.	-	1	Enquire
037	400906018B	ETB CONTROL UNIT	400906018B ETB CONTROL UNIT	-	1	Enquire
038	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	2	Enquire
042	N10049308	HEXAGON HEAD BOLT (COMBI)	N10049308 HEXAGON HEAD BOLT (COMBI)	-	3	Enquire
043	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	1	Enquire
044	N10017304	HEXAGON COLLAR NUT	N10017304 HEXAGON COLLAR NUT	-	8	Enquire
045	1J0971882E	ADHESIVE SPONGE RUBBER	1J0971882E ADHESIVE SPONGE RUBBER	-	1	Enquire
046	1K6971882	ADHESIVE SPONGE RUBBER	1K6971882 ADHESIVE SPONGE RUBBER	-	1	Enquire
