POWER BRAKE

Find Your Part

Lamborghini Gallardo LP550 Spyder - POWER BRAKE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

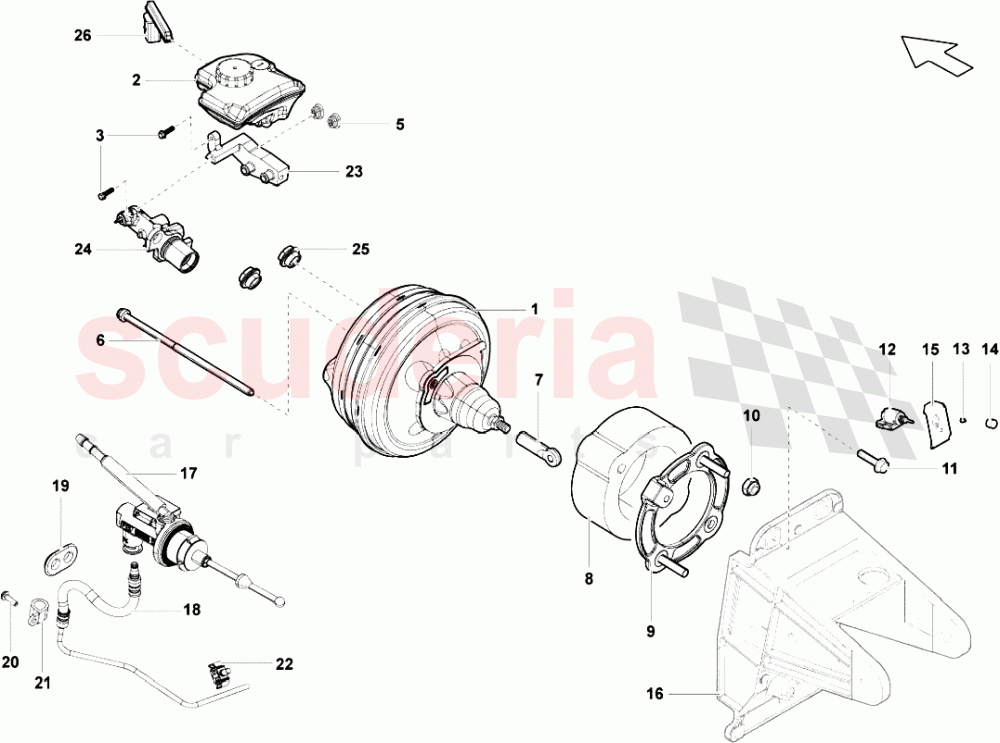

POWER BRAKE of Lamborghini Lamborghini Gallardo LP550 Spyder Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 4E1612107B
POWER BRAKE - 		$952.95 1
002 3D0611301B
RESERVOIR FOR BRAKE FLUID 		$155.91 1
003 N90638803
HEXAGON BOLT 		$0.92 (87.4% off) 2
005 4A0611817A
BUNGS 		$4.84 (49.6% off) 2
006 N90950502
SCREW M8X205X125 		$7.32 2
007 401721339
BALL JOINT COUPLING (FOR GSX CARS) 		$184.81 1
009 400614130
SPACER 		$384.42 1
010 N10609202
HEXAGON COLLAR NUT 		$0.37 2
011 N10025004
SCREW 		$1.19 (83.6% off) 4
012 1K2945511RDW
SWITCH (WARNING USE 410721633B) 		$75.03 1
013 N10620801
OVAL HEAD PANEL SCREW 		$0.89 (87.9% off) 2
014 400721589A
BUFFER 		$61.02 1
015 400721633B
STOP SWITCH SUPPORT 		$60.83 1
017 400721401A
CLUTCH PUMP (MANUAL GEARBOX) 		$798.41 1
018 401721461B
PIPE (MANUAL GEARBOX) 		$274.88 1
019 400721493
FAIRLEAD 		$29.98 1
020 N10124304
OVAL HEXAGON SOCKET HEAD BOLT 		$1.55 1
021 N0206027
CLAMP 		$3.77 1
022 6Q0611797E
BRACKET 		$4.43 1
023 400611329A
SUPPORT (MANUAL GEARBOX) - 		$296.38 1
024 3D0611021
MASTERCYLINDER (MANUAL GEARBOX) - 		$565.87 1
025 WHT000428
MASTERCYLINDER (MANUAL GEARBOX) - 		$12.03 2
026 8E0611377
OIL LEVEL SENSOR - 		$28.90 1
