TIMING CHAIN COVER ? PROPELLER SHAFT of Lamborghini Lamborghini Gallardo LP550 Spyder

View All

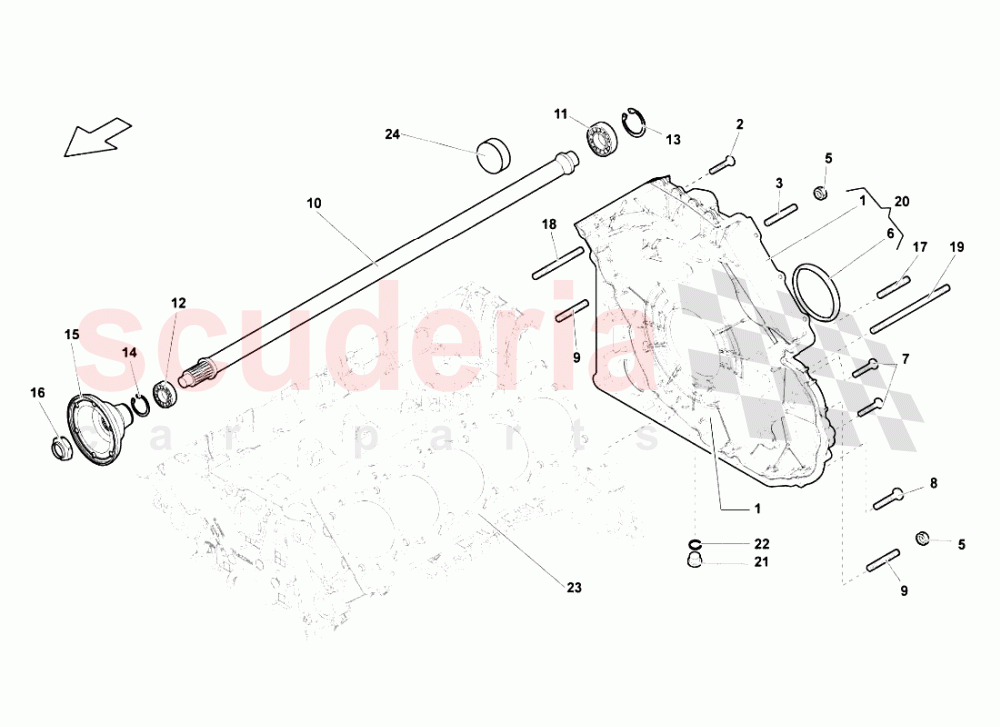

Lamborghini Gallardo LP550 Spyder - TIMING CHAIN COVER ? PROPELLER SHAFT

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
002	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	N10124306 HEXAGON SOCKET FLAT HEAD BOLT	-	13	Enquire
003	WHT000198	STUD BOLT M10XM12X84	WHT000198 STUD BOLT M10XM12X84	-	3	Enquire
005	N10261311	HEXAGON NUT	N10261311 HEXAGON NUT	-	9	Enquire
006	7L103051A	O-RING	7L103051A O-RING	-	1	Enquire
007	N10156206	OVAL HEXAGON SOCKET HEAD BOLT	N10156206 OVAL HEXAGON SOCKET HEAD BOLT	-	10	Enquire
008	N91068601	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91068601 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	6	Enquire
009	WHT002302	STUD BOLT M10 2MX59	WHT002302 STUD BOLT M10 2MX59	-	2	Enquire
010	86311101H	Input Shaft	86311101H Input Shaft	-	1	Enquire
011	86311435A	Ball Bearing (35x52x14)	86311435A Ball Bearing (35x52x14)	-	1	Enquire
012	86311430A	Ball Bearing (25x52x15)	86311430A Ball Bearing (25x52x15)	-	1	Enquire
013	N0123191	RETAINING RING	N0123191 RETAINING RING	-	1	Enquire
014	N0122902	RETAINING RING	N0122902 RETAINING RING	-	1	Enquire
015	86311845	FLANGE	86311845 FLANGE	-	1	Enquire
016	86311495	HEXAGON NUT	86311495 HEXAGON NUT	-	1	Enquire
017	WHT002302	STUD BOLT M10 2MX59	WHT002302 STUD BOLT M10 2MX59	-	2	Enquire
018	WHT000197	STUD BOLT M10XM12X90	WHT000197 STUD BOLT M10XM12X90	-	1	Enquire
019	WHT002301	STUD BOLT M10 2MX167	WHT002301 STUD BOLT M10 2MX167	-	1	Enquire
020	7L103171AP	STUD BOLT M10 2MX167 -	7L103171AP STUD BOLT M10 2MX167 -	-	1	Enquire
021	N91119401	SEALING PLUG	N91119401 SEALING PLUG	-	1	Enquire
022	N0138063	SEAL RING	N0138063 SEAL RING	-	1	Enquire
024	7L103037	BUNGS	7L103037 BUNGS	-	1	Enquire
