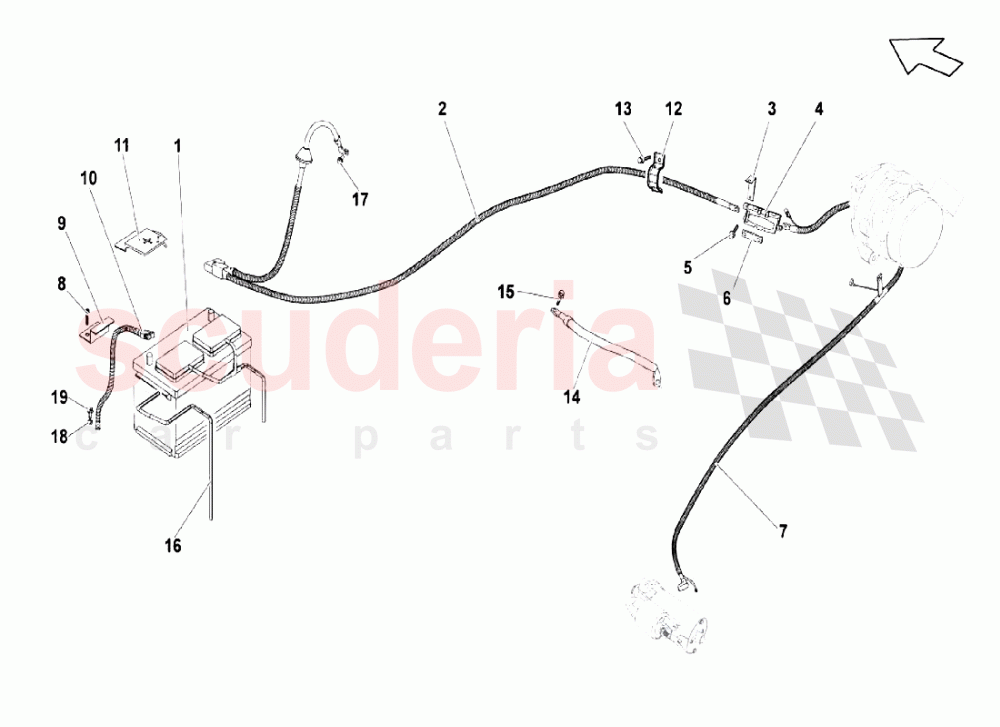

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	915105CC	Battery, Filled And Charged (68ah/380a (agm))	915105CC Battery, Filled And Charged (68ah/380a (agm))	$433.02	1
001	915105DK	BATTERY (95AH 450A) -	915105DK BATTERY (95AH 450A) -	$521.09	1
002	408971225C	CABLE	408971225C CABLE	$559.14	1
004	400937495	MEGA FUSE HOLDER BOX	400937495 MEGA FUSE HOLDER BOX	$77.56	1
005	N90693702	SCREW M5X20	N90693702 SCREW M5X20	$0.58 MSRP: ~~7.32~~ (92.1% off)	-
006	400915447	BAR	400915447 BAR	$26.89	1
007	400971793D	CABLE (CABLE STARTER MOTOR EXCITATION)	400971793D CABLE (CABLE STARTER MOTOR EXCITATION)	$212.36	1
008	N10347804	HEXAGON SOCKET HEAD BOLT (COMBI)	N10347804 HEXAGON SOCKET HEAD BOLT (COMBI)	$1.68	-
009	400915447B	HOOK	400915447B HOOK	$340.06	1
010	400971235B	CABLE	400971235B CABLE	$33.22	1
012	400971336	BRACKET	400971336 BRACKET	$10.96	-
014	420971237A	CABLE (CABLE (-) FROM ENGINE TO CHASSIS)	420971237A CABLE (CABLE (-) FROM ENGINE TO CHASSIS)	$36.43	1
015	N10049308	HEXAGON HEAD BOLT (COMBI)	N10049308 HEXAGON HEAD BOLT (COMBI)	$1.74	-
016	4F0915531	CORRUGATED PIPE	4F0915531 CORRUGATED PIPE	$14.38	1
018	N01152527	WASHER	N01152527 WASHER	$0.40 MSRP: ~~7.33~~ (94.5% off)	1
019	N10049308	HEXAGON HEAD BOLT (COMBI)	N10049308 HEXAGON HEAD BOLT (COMBI)	$1.74	1
