Seats And Safety Belts - Sports Seat

Lamborghini Gallardo LP550 Coupe

Find Your Part

Lamborghini Gallardo LP550 Coupe - Seats And Safety Belts - Sports Seat

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

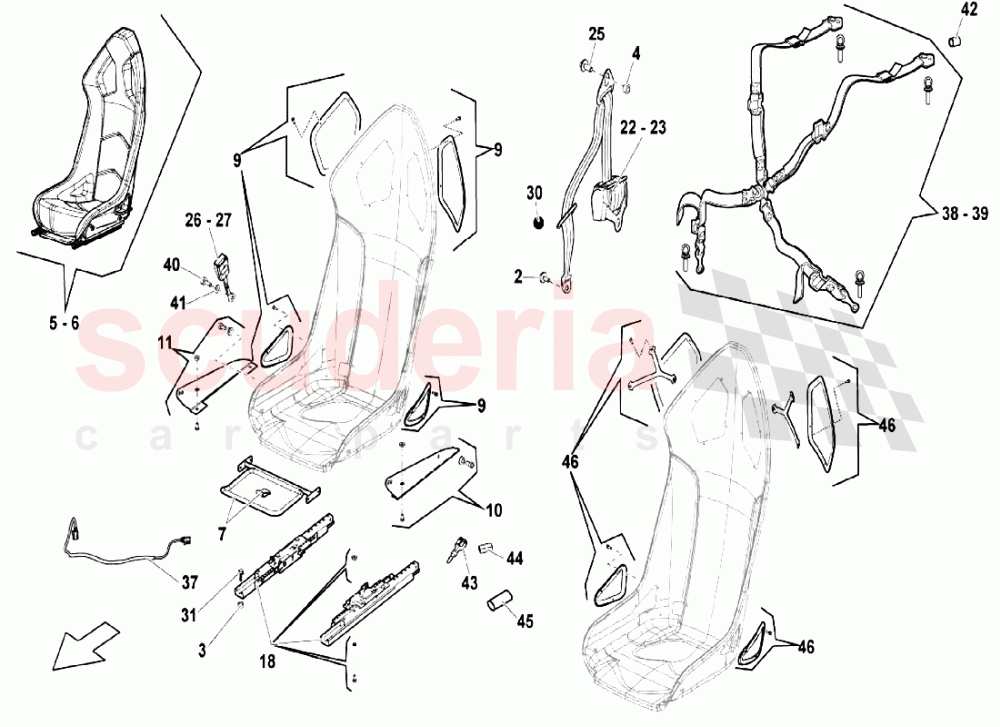

Seats And Safety Belts - Sports Seat of Lamborghini Lamborghini Gallardo LP550 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
003 400804347
SPACER 		- 8 Enquire
004 400857767
SEAT BELT SPACER 		- 2 Enquire
007 403881605
MANUAL SEAT RELEASE LEVER - KIT 		- 2 Enquire
009 403881457
FRAME - KIT 		- 2 Enquire
010 403881537
LH BRACKET - KIT 		- 2 Enquire
011 403881538
RH BRACKET - KIT 		- 2 Enquire
018 403881920
GUIDE - KIT 		- 2 Enquire
022 402857705A
SEAT BELT LH 		- 1 Enquire
022 402857706A
SEAT BELT RH 		- 1 Enquire
025 N98926601
SCREW 		- 2 Enquire
026 403857756
Belt Latch (right) 		- 1 Enquire
026 403857755
Belt Latch (left) 		- 1 Enquire
030 811857845
COVER CAP 		- 2 Enquire
031 N10578904
FLAT ROUND HEAD BOLT 		- 8 Enquire
038 403857706
SEAT BELT RH 4 POINTS 		- 1 Enquire
038 403857705
SEAT BELT LH 4 POINTS 		- 1 Enquire
041 403898012
Washer 		- 2 Enquire
042 403857515
SEAT BELT SPACER 4 POINTS 		- 4 Enquire
043 403971974B
Push-on Connector 		- 2 Enquire
044 8D0971974B
CONNECTOR 		- 2 Enquire
045 3B0971790
SLEEVE 		- 2 Enquire
046 403881457A
1 Set Trims 		- 1 Enquire
