Fuel System 3 of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

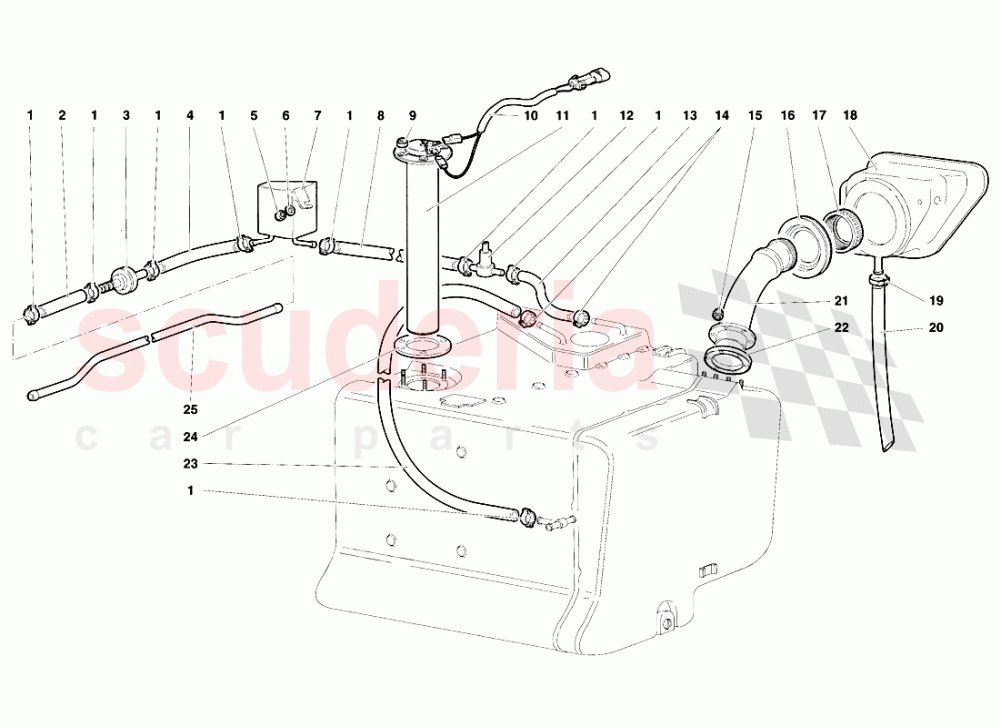

Lamborghini Diablo VT (1993-1998) - Fuel System 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8830902	STRAP	8830902 STRAP FASCETTA	$5.66	8
002	6231442	PIPE	6231442 PIPE TUBO	$7.16	1
003	6229379	SAFETY VALVE	6229379 SAFETY VALVE VALVOLA Dl SOVRAPRESSIONE	$130.89	1
004	6233893	PIPE	6233893 PIPE TUBO	$43.74	1
005	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	$2.04	1
006	N01152427	WASHER	N01152427 WASHER RONDELLA	$0.28	1
007	6233841	VAPOUR TANK	6233841 VAPOUR TANK SEPARATORE VAPORI BENZINA	$394.57	1
008	6230437	PIPE	6230437 PIPE TUBO	-	1	Enquire
009	N0211963	NUT	N0211963 NUT DADO	$0.76	5
010	6133765	ELECT CABLE	6133765 ELECT CABLE CABLAGGIO GALLEGGIANTE	$47.83	1
011	6229648	LEVEL GAUGE	6229648 LEVEL GAUGE INDICATORE LIVELLO	$343.67 MSRP: ~~666.00~~ (48.4% off)	1
012	6230531	SAFETY VALVE	6230531 SAFETY VALVE VALVOLA SICUREZZA	$294.68	1
013	6230438	PIPE	6230438 PIPE TUBO	$14.35	1
014	N0245097	CLAMP	N0245097 CLAMP FASCETTA	$18.10	2
015	WHT002959	CLAMPING NUT	WHT002959 CLAMPING NUT DADO	$0.82 MSRP: ~~7.26~~ (88.7% off)	6
016	9409215	GASKET	9409215 GASKET GUARNIZIONE	$32.82 MSRP: ~~34.30~~ (4.3% off)	1
017	400201587A	Fuel Filler Plug	400201587A Fuel Filler Plug TAPPO	$966.28	1
018	9490518	CASE	9490518 CASE SCATOLA	$916.26	1
019	8832205	STRAP	8832205 STRAP FASCETTA	$20.67 MSRP: ~~21.50~~ (3.9% off)	1
020	9490516	PIPE	9490516 PIPE TUBO	$13.28 MSRP: ~~13.45~~ (1.3% off)	1
021	6221128	UNION	6221128 UNION BOCCHETTONE	$2,004.77	1
022	6205360	GASKET	6205360 GASKET GUARNIZIONE	$98.53	1
023	6230215	PIPE	6230215 PIPE TUBO	$134.00	1
024	6229649	FUEL LEVEL GAUGE FLANGE SEAL	6229649 FUEL LEVEL GAUGE FLANGE SEAL GUARNIZIONE	$17.95	1
025	6231441	PIPE	6231441 PIPE TUBO	$466.52	1
