Lamborghini Diablo VT (1993-1998) - Exhaust System 3

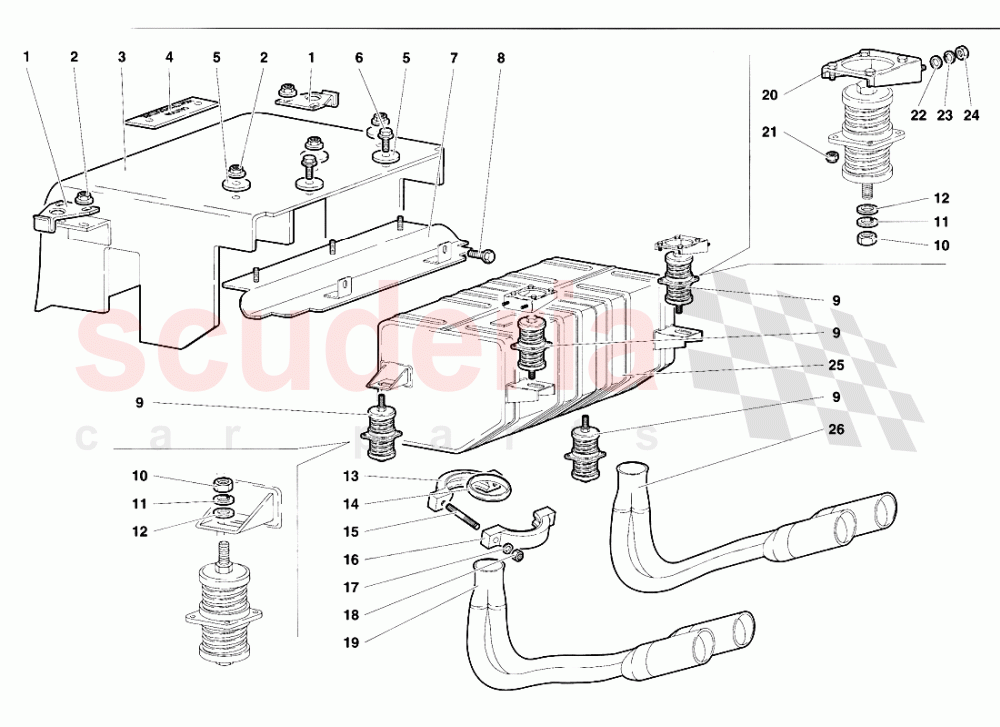

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9411613	SUPPORT - SUPPORTO	9411613 SUPPORT - SUPPORTO O	-	2	Enquire
002	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT DADO	-	7	Enquire
003	4433479	SHIELD	4433479 SHIELD PARATIA ANTICALORE	-	1	Enquire
005	9444151	WASHER	9444151 WASHER RONDELLA	-	5	Enquire
006	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	-	2	Enquire
007	4434418	SHIELD	4434418 SHIELD PARATIA ANTICALORE	-	1	Enquire
008	8700449	SCREW	8700449 SCREW VITE	-	2	Enquire
009	4432031	SHOCK ABSORBER	4432031 SHOCK ABSORBER AMMORTIZZATORE	-	4	Enquire
010	N10155210	NUT	N10155210 NUT DADO	-	4	Enquire
011	8451005	WASHER	8451005 WASHER RONDELLA	-	4	Enquire
012	8401006	WASHER	8401006 WASHER RONDELLA	-	4	Enquire
013	4425084	HALF RING	4425084 HALF RING SEMIANELLO FILETTATO	-	2	Enquire
014	4424070	BI-CONE RING	4424070 BI-CONE RING ANELLO DOPPIO CONO	-	2	Enquire
015	N0444416	STUD BOLT	N0444416 STUD BOLT PRIGIONIERO	-	4	Enquire
016	4425084	HALF RING	4425084 HALF RING SEMIANELLO	-	2	Enquire
017	8440806	WASHER	8440806 WASHER use : WHT001185	-	4	Enquire
018	N02214621	HEXAGON NUT M8 SELF-LOCKING	N02214621 HEXAGON NUT M8 SELF-LOCKING DADO	-	4	Enquire
019	4432725	LEFT TERMINAL	4432725 LEFT TERMINAL TERMINALE SX	-	1	Enquire
020	4431081	SUPPORT - SUPPORTO	4431081 SUPPORT - SUPPORTO O	-	2	Enquire
021	N0211963	NUT	N0211963 NUT DADO	-	16	Enquire
022	8400801	WASHER	8400801 WASHER RONDELLA	-	4	Enquire
023	N0152785	WASHER	N0152785 WASHER RONDELLA	-	4	Enquire
024	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT DADO	-	4	Enquire
025	4430979	SILENCER/MUFFLER	4430979 SILENCER/MUFFLER SILENZIATORE	-	1	Enquire
026	4432726	RIGHT TERMINAL	4432726 RIGHT TERMINAL TERMINALE DX	-	1	Enquire
