Exhaust System (Valid for USA and Canada - November 1998) 1 of Lamborghini Lamborghini Diablo SV (1998)

View All

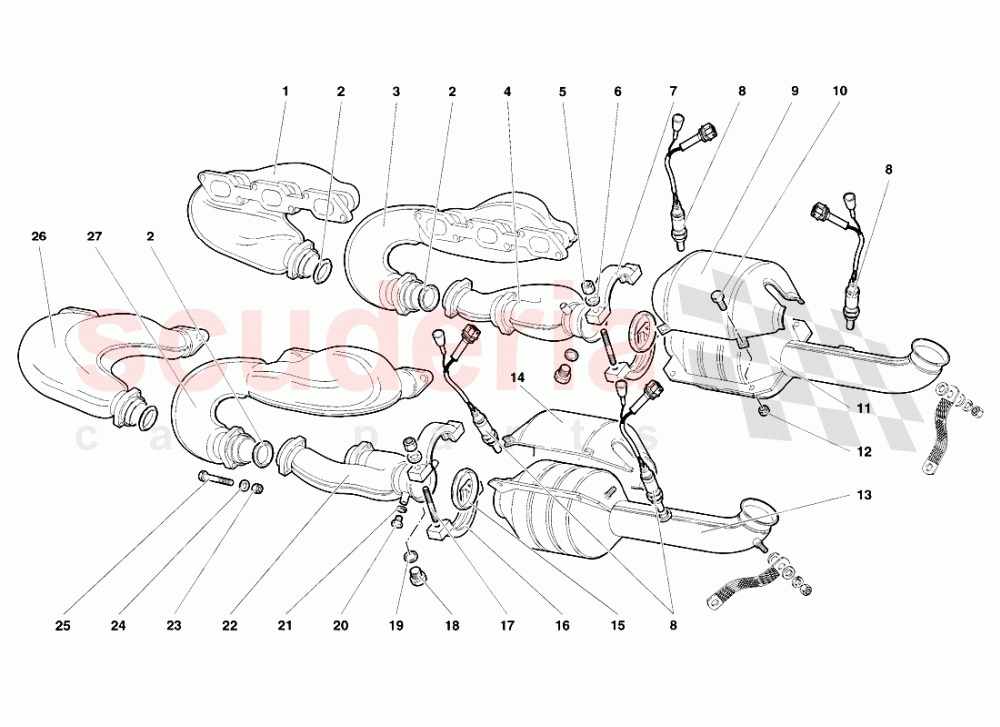

Lamborghini Diablo SV (1998) - Exhaust System (Valid for USA and Canada - November 1998) 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4435456	EXHAUST MANIFOLD	4435456 EXHAUST MANIFOLD (Valid for USA and CANADA - November 1998) COLLETTORE Dl SCARICO ANT. DX	-	1	Enquire
002	4435972	BI-CONE RING	4435972 BI-CONE RING (Valid for USA and CANADA - November 1998) ANELLO DOPPIO CONO	-	4	Enquire
003	4435457	EXHAUST MANIFOLD	4435457 EXHAUST MANIFOLD (Valid for USA and CANADA - November 1998) COLLETTORE Dl SCARICO POST.DX	-	1	Enquire
004	44001748	EXHAUST MANIFOLD	44001748 EXHAUST MANIFOLD (Valid for USA and CANADA - November 1998) COLLETTORE A TRE VIE DX	-	1	Enquire
005	N02214621	HEXAGON NUT M8 SELF-LOCKING	N02214621 HEXAGON NUT M8 SELF-LOCKING (Valid for USA and CANADA - November 1998) DADO	-	4	Enquire
006	8440806	WASHER	8440806 WASHER use : WHT001185	-	4	Enquire
007	4425084	HALF RING	4425084 HALF RING (Valid for USA and CANADA - November 1998) SEMIANELLO	-	2	Enquire
008	R1470226	OXIGEN SENSOR	R1470226 OXIGEN SENSOR	-	4	Enquire
009	4435463	SHIELD	4435463 SHIELD (Valid for USA and CANADA - November 1998) PROTEZIONE	-	1	Enquire
010	N10648502	SCREW M5X10	N10648502 SCREW M5X10 (Valid for USA and CANADA - November 1998) VITE	-	8	Enquire
011	4436743	RIGHT CAT. CONVE.	4436743 RIGHT CAT. CONVE. (Valid for USA and CANADA - November 1998) CONVERTITORE CATALITICO DX	-	1	Enquire
012	8200513	NUT	8200513 NUT (Valid for USA and CANADA - November 1998) DADO	-	8	Enquire
013	44003570	LEFT CAT. CONVE.	44003570 LEFT CAT. CONVE. (Valid for USA and CANADA - November 1998) CONVERTITORE CATALITICO SX	-	1	Enquire
014	4435971	SHIELD	4435971 SHIELD (Valid for USA and CANADA - November 1998) PROTEZIONE	-	1	Enquire
015	4424070	BI-CONE RING	4424070 BI-CONE RING (Valid for USA and CANADA - November 1998) ANELLO DOPPIO CONO	-	2	Enquire
016	4425084	HALF RING	4425084 HALF RING (Valid for USA and CANADA - November 1998) SEMIANELLO	-	2	Enquire
017	N0444416	STUD BOLT	N0444416 STUD BOLT (Valid for USA and CANADA - November 1998) PRIGIONIERO	-	4	Enquire
018	8931808	PLUG	8931808 PLUG (Valid for USA and CANADA - November 1998) TAPPO	-	2	Enquire
019	N91122801	WASHER 18,5X24X1,5	N91122801 WASHER 18,5X24X1,5 (Valid for USA and CANADA - November 1998) RONDELLA	-	2	Enquire
020	4431148	PLUG	4431148 PLUG (Valid for USA and CANADA - November 1998) TAPPO	-	2	Enquire
021	8401008	WASHER	8401008 WASHER (Valid for USA and CANADA - November 1998) RONDELLA	-	2	Enquire
022	44001747	EXHAUST MANIFOLD	44001747 EXHAUST MANIFOLD (Valid for USA and CANADA - November 1998) COLLETTORE A TRE VIE SX	-	1	Enquire
023	N02214621	HEXAGON NUT M8 SELF-LOCKING	N02214621 HEXAGON NUT M8 SELF-LOCKING (Valid for USA and CANADA - November 1998) DADO	-	8	Enquire
024	8440806	WASHER	8440806 WASHER use : WHT001185	-	8	Enquire
025	8100870	SCREW	8100870 SCREW (Valid for USA and CANADA - November 1998) VITE	-	8	Enquire
026	4435458	EXHAUST MANIFOLD	4435458 EXHAUST MANIFOLD (Valid for USA and CANADA - November 1998) COLLETTORE Dl SCARICO ANT. SX	-	1	Enquire
027	4435459	EXHAUST MANIFOLD	4435459 EXHAUST MANIFOLD (Valid for USA and CANADA - November 1998) COLLETTORE Dl SCARICO POST.SX	-	1	Enquire
