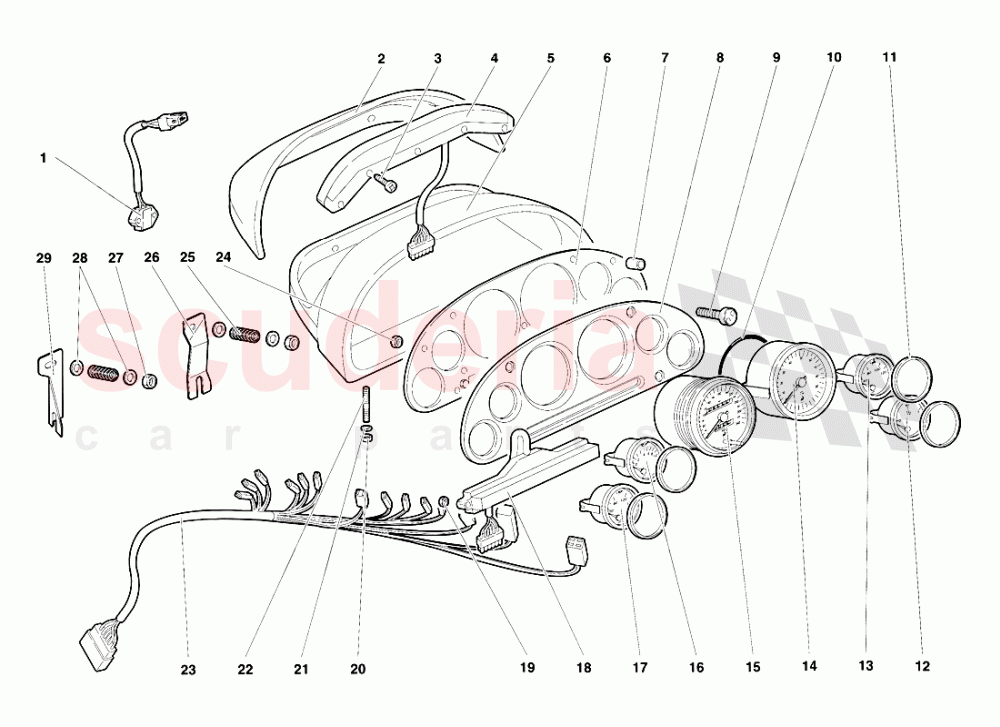

Lamborghini Diablo SV (1995-1997) - Dashboard Instruments

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	4526662	TEMPERATURE SENS.	4526662 TEMPERATURE SENS. SENSORE TEMPERATURA ESTERNA	$233.07	1
002	9414427	REAR DASHBOARD P.	9414427 REAR DASHBOARD P. CRUSCOTTO POST.	$191.07	1
003	8700449	SCREW	8700449 SCREW VITE	$2.99 MSRP: ~~7.37~~ (59.4% off)	5
004	6033214	WARNING LIGHTS	6033214 WARNING LIGHTS GRUPPOSPIE	$402.00	1
005	9414437	FRONT DASHBOARD P.	9414437 FRONT DASHBOARD P. CRUSCOTTO ANT.	$590.57	1
006	9414428	INSTRUMENT PANEL	9414428 INSTRUMENT PANEL PLANCIA PORTASTRUMEN	$243.19	1
007	9414407	SPACER	9414407 SPACER DISTANZIALE	$32.82	5
008	9414440	PLATE	9414440 PLATE PIASTRA COPRISTRUMENTI	$613.73	1
009	9414420	SCREW	9414420 SCREW VITE	$32.82	4
010	8609802	SEAL	8609802 SEAL ANELLO TENUTA	$0.62 MSRP: ~~7.28~~ (91.5% off)	1
011	6030886	SPACER	6030886 SPACER DISTANZIALE	$55.02	4
012	6034966	FUEL LEVEL GAUGE	6034966 FUEL LEVEL GAUGE INDICATORE LIVELLO CARBURANTE	$217.11	1
013	6034969	WATER TEMP. GAUGE	6034969 WATER TEMP. GAUGE INDICATORE TEMPERATURA ACQUA	$204.08	1
014	6034965	REVOLUTION COUNT.	6034965 REVOLUTION COUNT. CONTAGIRI	$583.15	1
015	6034964	SPEEDOMETER - KM	6034964 SPEEDOMETER - KM CONTACHILOMETRI	$688.58	1
016	6034967	OIL PRESSURE GAUGE	6034967 OIL PRESSURE GAUGE INDICATORE PRESSIONE OLIO	$168.74	1
017	6034968	OIL TEMP. GAUGE	6034968 OIL TEMP. GAUGE INDICATORE TEMPERATURA OLIO	$228.30	1
018	6033213	WARNING LIGHTS	6033213 WARNING LIGHTS GRUPPOSPIE	$629.66	1
019	WHT002959	CLAMPING NUT	WHT002959 CLAMPING NUT DADO	$0.82 MSRP: ~~7.26~~ (88.7% off)	2
020	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	$2.04	2
021	WHT003093	Washer	WHT003093 Washer RONDELLA	$0.48 MSRP: ~~7.33~~ (93.5% off)	2
022	8300611	STUD	8300611 STUD PRIGIONIERO	$7.10 MSRP: ~~7.30~~ (2.7% off)	2
023	6133198	ELECT CABLE	6133198 ELECT CABLE CAVO ELETTRICO	$198.29	1
024	N0211963	NUT	N0211963 NUT DADO	$0.76	5
025	9414416	SPRING	9414416 SPRING MOLLA	$18.74 MSRP: ~~19.60~~ (4.4% off)	2
026	9414414	BRACKET	9414414 BRACKET STAFFA DX	$44.25	1
027	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	$2.04	4
028	WHT002961	WASHER	WHT002961 WASHER RONDELLA	$0.42	4
029	9414415	BRACKET	9414415 BRACKET STAFFA SX	$69.12	1
