Exhaust System 3 of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

Lamborghini Diablo SE30 (1993-1995) - Exhaust System 3

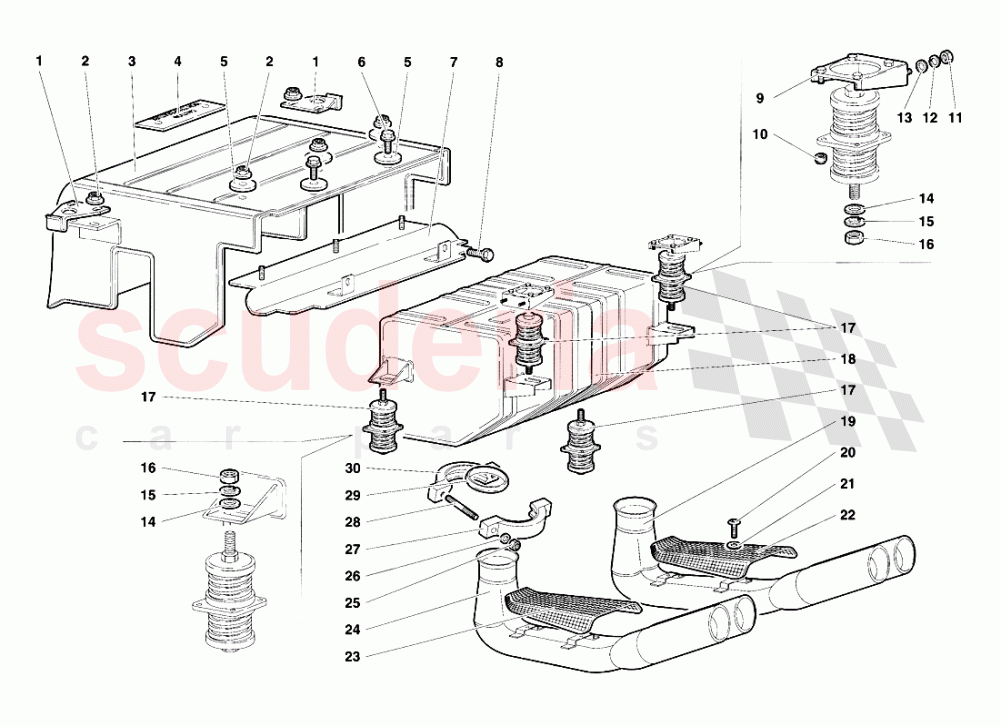

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9411613	SUPPORT - SUPPORTO	9411613 SUPPORT - SUPPORTO O	-	2	Enquire
002	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT DADO	-	7	Enquire
003	4435003	SHIELD	4435003 SHIELD PARATIA ANTICALORE	-	1	Enquire
005	9444151	WASHER	9444151 WASHER RONDELLA	-	5	Enquire
006	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	-	2	Enquire
007	4434418	SHIELD	4434418 SHIELD PARATIA ANTICALORE	-	1	Enquire
008	8700449	SCREW	8700449 SCREW VITE	-	2	Enquire
009	4431081	SUPPORT - SUPPORTO	4431081 SUPPORT - SUPPORTO O	-	2	Enquire
010	N0211963	NUT	N0211963 NUT DADO	-	16	Enquire
011	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT DADO	-	4	Enquire
012	N0152785	WASHER	N0152785 WASHER RONDELLA	-	4	Enquire
013	8400801	WASHER	8400801 WASHER RONDELLA	-	4	Enquire
014	8401006	WASHER	8401006 WASHER RONDELLA	-	4	Enquire
015	8451005	WASHER	8451005 WASHER RONDELLA INOX	-	4	Enquire
016	N10155210	NUT	N10155210 NUT DADO	-	4	Enquire
017	4432031	SHOCK ABSORBER	4432031 SHOCK ABSORBER AMMORTIZZATORE	-	4	Enquire
018	4435002	SILENCER/MUFFLER	4435002 SILENCER/MUFFLER SILENZIATORE	-	1	Enquire
019	4434877	TERMINAL - TERMINALE DX	4434877 TERMINAL - TERMINALE DX E DX	-	1	Enquire
020	8700665	SCREW	8700665 SCREW VITE	-	4	Enquire
021	N91115501	WASHER	N91115501 WASHER RONDELLA	-	4	Enquire
022	9430157	NET	9430157 NET RETE FINIZ. TERM. SCARICO DX	-	1	Enquire
023	9430158	NET	9430158 NET RETE FINIZ.TERM. SCARICO SX	-	1	Enquire
024	4434876	LEFT TERMINAL	4434876 LEFT TERMINAL TERMINALE SX	-	1	Enquire
025	N02214621	HEXAGON NUT M8 SELF-LOCKING	N02214621 HEXAGON NUT M8 SELF-LOCKING DADO	-	4	Enquire
026	8440806	WASHER	8440806 WASHER use : WHT001185	-	4	Enquire
027	4425084	HALF RING	4425084 HALF RING SEMIANELLO	-	2	Enquire
028	N0444416	STUD BOLT	N0444416 STUD BOLT PRIGIONIERO	-	4	Enquire
029	4424070	BI-CONE RING	4424070 BI-CONE RING ANELLO DOPPIO CONO	-	2	Enquire
030	4425084	HALF RING	4425084 HALF RING SEMIANELLO FILETTATO	-	2	Enquire
