Lamborghini Diablo VT Roadster (1998-2000) - Fuel System 3

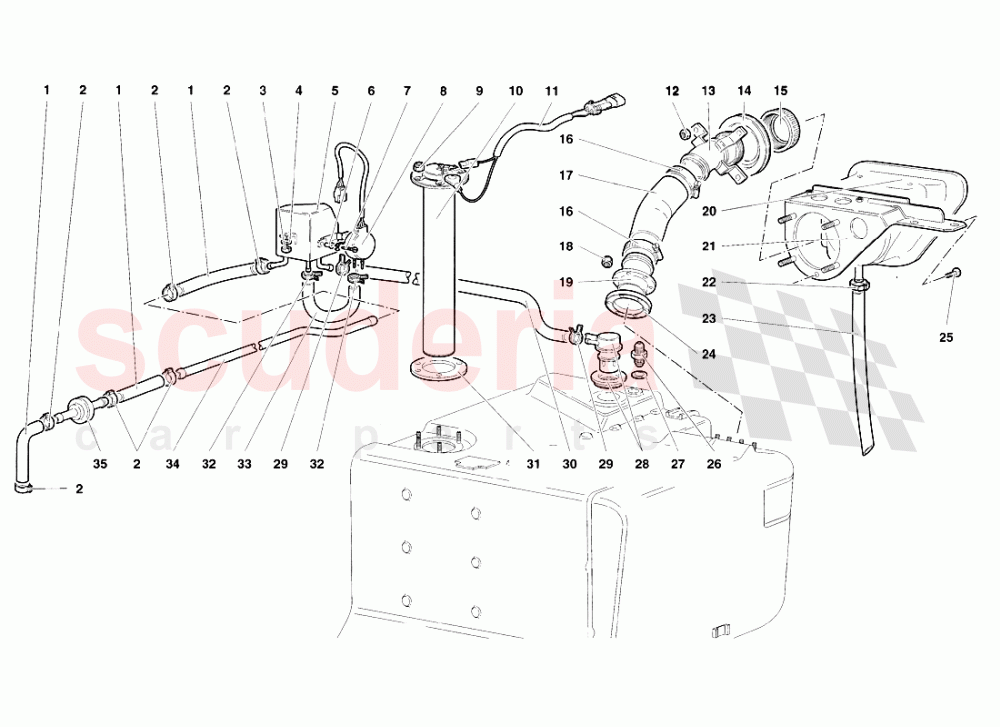

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	62001398	PIPE	62001398 PIPE TUBO	$13.40	3
002	8831528	CLAMP	8831528 CLAMP FASCETTA	$9.27	6
003	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	$2.04	1
004	N01152427	WASHER	N01152427 WASHER RONDELLA	$0.28	1
005	62001352	SEGREGATOR	62001352 SEGREGATOR SEPARATORE VAPORI BENZ.	-	1	Enquire
006	62001396	RUBBER BUSHING	62001396 RUBBER BUSHING BOCCOLA GOMMA	$2.05 MSRP: ~~2.10~~ (2.4% off)	2
007	8700346	SCREW	8700346 SCREW VITE	$0.09 MSRP: ~~7.38~~ (98.8% off)	2
008	400906206	EVAPORATIVE EMISSION CONTROL PRESSURE SENSOR	400906206 EVAPORATIVE EMISSION CONTROL PRESSURE SENSOR	$2,634.41	1
009	N0211963	NUT	N0211963 NUT DADO	$0.76	5
010	6229648	LEVEL GAUGE	6229648 LEVEL GAUGE INDICATORE LIVELLO CARBUR.	$343.67 MSRP: ~~666.00~~ (48.4% off)	1
011	6135126	ELECT CABLE	6135126 ELECT CABLE CABLAGGIO GALLEGGIANTE	$9.61 MSRP: ~~9.75~~ (1.4% off)	1
012	8200513	NUT	8200513 NUT DADO	$0.16	4
013	6237498	UNION	6237498 UNION BOCCHETTONE	$516.13	1
013	62001582	UNION	62001582 UNION (Valid for ARABIA.1998) BOCCHETTONE	$507.44 MSRP: ~~513.00~~ (1.1% off)	1
013	62001582	UNION	62001582 UNION (Valid for DUBAI 1998) BOCCHETTONE	$507.44 MSRP: ~~513.00~~ (1.1% off)	1
013	62001582	UNION	62001582 UNION (Valid for SOUTH AFRICA1998) BOCCHETTONE	$507.44 MSRP: ~~513.00~~ (1.1% off)	1
014	9409215	GASKET	9409215 GASKET GUARNIZIONE	$32.82 MSRP: ~~34.30~~ (4.3% off)	1
015	62006258	TANK CAP	62006258 TANK CAP TAPPO SERBATOIO	-	1	Enquire
016	8834501	STRAP	8834501 STRAP FASCETTA	-	2	Enquire
017	6237500	PIPE	6237500 PIPE TUBO	$400.75	1
018	WHT002959	CLAMPING NUT	WHT002959 CLAMPING NUT DADO	$0.82 MSRP: ~~7.26~~ (88.7% off)	6
019	6237497	UNION	6237497 UNION BOCCHETTONE	$128.41	1
020	66001581	CASE	66001581 CASE SCATOLA	$109.81 MSRP: ~~111.00~~ (1.1% off)	1
021	66001339	SUPPORT - (Valid for USA - July 1999) (Valid for cars with fast fuel intake) SUPPORTO	66001339 SUPPORT - (Valid for USA - July 1999) (Valid for cars with fast fuel intake) SUPPORTO O	$237.58	1
022	8832205	STRAP	8832205 STRAP FASCETTA	$20.67 MSRP: ~~21.50~~ (3.9% off)	1
023	9490516	PIPE	9490516 PIPE TUBO	$13.28 MSRP: ~~13.45~~ (1.3% off)	1
024	6205360	GASKET	6205360 GASKET GUARNIZIONE	$98.53	1
025	8740685	SCREW	8740685 SCREW VITE	$21.42	3
026	62001267	CONNECTION	62001267 CONNECTION RACCORDO	$33.82 MSRP: ~~35.40~~ (4.5% off)	1
027	8401425	WASHER	8401425 WASHER RONDELLA	-	1	Enquire
028	62001272	ROLL OVER VALVE	62001272 ROLL OVER VALVE VALVOLA ROLL OVER	$338.73 MSRP: ~~343.00~~ (1.2% off)	1
029	8830130	STRAP	8830130 STRAP FASCETTA	$0.16 MSRP: ~~7.37~~ (97.8% off)	2
030	62001160	PIPE	62001160 PIPE TUBO	$13.89 MSRP: ~~14.45~~ (3.9% off)	1
031	6229649	FUEL LEVEL GAUGE FLANGE SEAL	6229649 FUEL LEVEL GAUGE FLANGE SEAL GUARNIZIONE	$17.95	1
032	8830128	CLAMP	8830128 CLAMP FASCETTA	$0.46	2
033	62001397	PIPE	62001397 PIPE TUBO	$5.82 MSRP: ~~5.95~~ (2.2% off)	1
034	6237081	PIPE	6237081 PIPE TUBO	$44.74	1
035	62001313	VALVE	62001313 VALVE VALVOLA	$31.84	1
