Handbrake of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

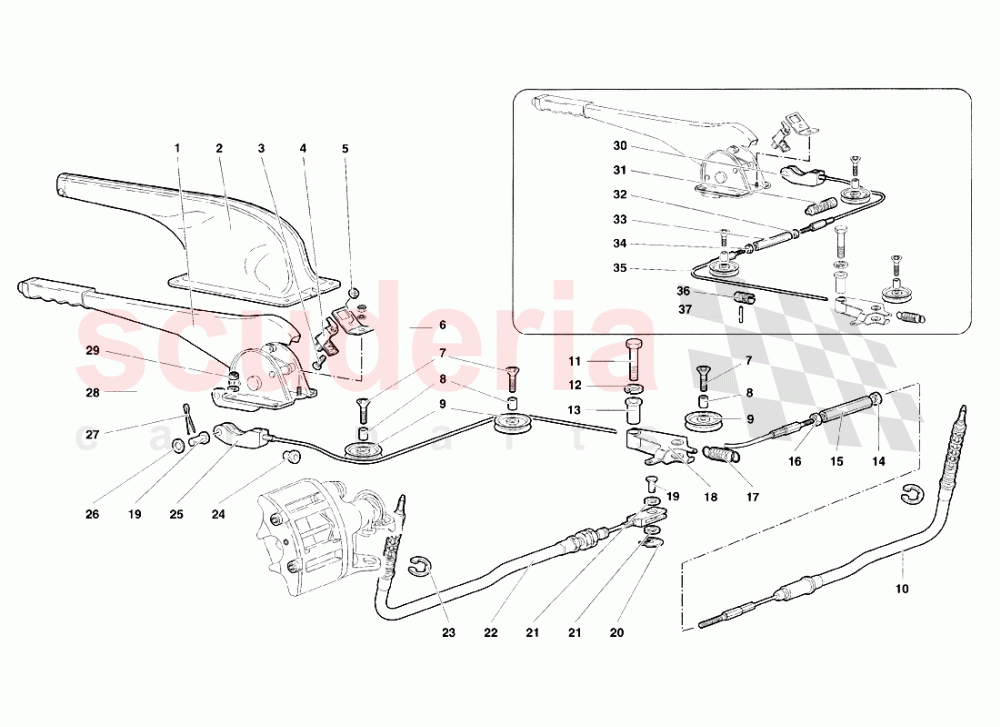

Lamborghini Diablo VT Roadster (1998-2000) - Handbrake

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	33000780	HANDBRAKE LEVER	33000780 HANDBRAKE LEVER LEVA FRENO A MANO	-	1	Enquire
002	78001360	COVERING	78001360 COVERING RIVESTIMENTO	$161.92 MSRP: ~~164.50~~ (1.6% off)	1
003	WHT002756	SCREW	WHT002756 SCREW	-	1	Enquire
004	3336007	BUTTON	3336007 BUTTON PULSANTE	$28.84 MSRP: ~~30.10~~ (4.2% off)	1
005	WHT002959	CLAMPING NUT	WHT002959 CLAMPING NUT DADO	$0.82 MSRP: ~~7.26~~ (88.7% off)	1
006	3335993	SUPPORT - SUPPORTO	3335993 SUPPORT - SUPPORTO O	-	1	Enquire
007	8700851	SCREW	8700851 SCREW VITE	$0.82 MSRP: ~~7.26~~ (88.7% off)	3
008	3330827	BUSHING	3330827 BUSHING BOCCOLA	-	3	Enquire
009	3332512	PULLEY	3332512 PULLEY CARRUCOLA	-	3	Enquire
010	33001133	RIGHT TIE ROD	33001133 RIGHT TIE ROD TIRANTE DX	$221.48	1
011	8101407	SCREW M14X55	8101407 SCREW M14X55 VITE	$5.33 MSRP: ~~5.45~~ (2.2% off)	1
012	8411404	WASHER	8411404 WASHER RONDELLA	$0.49 MSRP: ~~7.32~~ (93.3% off)	1
013	3330828	SPACER	3330828 SPACER DISTANZIALE	-	1	Enquire
014	8200607	NUT M6	8200607 NUT M6 DADO	$12.78 MSRP: ~~13.30~~ (3.9% off)	1
015	413609206	ADJUSTING SLEEVE	413609206 ADJUSTING SLEEVE (Valid for R.H.D. version - April 1994) REGISTRO	$65.79	1
016	N01100632	NUT M6	N01100632 NUT M6 DADO	$4.52 MSRP: ~~7.33~~ (38.3% off)	1
017	3330829	SPRING	3330829 SPRING MOLLA	-	1	Enquire
018	3333935	ROCKER	3333935 ROCKER O	-	1	Enquire
019	410609789	JOURNAL	410609789 JOURNAL PERNO	$30.59	2
020	4207085	CLIP	4207085 CLIP FERMAGLIO	$85.70	1
021	N0122094	WASHER	N0122094 WASHER RONDELLA	$1.47 MSRP: ~~7.15~~ (79.4% off)	2
022	33001131	LEFT TIE ROD	33001131 LEFT TIE ROD TIRANTE SX	$288.07	1
023	WHT003586	RETAINING RING	WHT003586 RETAINING RING ANELLO RITEGNO	$0.68 MSRP: ~~7.35~~ (90.7% off)	2
024	3330880	RUBBER BUSHING	3330880 RUBBER BUSHING BOCCOLA GOMMA	-	1	Enquire
025	33001129	TIE ROD	33001129 TIE ROD TIRANTE	$389.38	1
026	N01152427	WASHER	N01152427 WASHER RONDELLA	$0.28	1
027	8820201	SPLIT PIN	8820201 SPLIT PIN COPIGLIA	$6.52 MSRP: ~~6.60~~ (1.2% off)	1
028	N01152427	WASHER	N01152427 WASHER RONDELLA	$0.28	4
029	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	$2.04	4
030	33001472	TIE ROD	33001472 TIE ROD (Valid for U.K.1998) TIRANTE	$359.70	1
031	3332748	SHIELD	3332748 SHIELD (Valid for U.K.1998) PROTEZIONE	$2.81 MSRP: ~~2.85~~ (1.4% off)	1
032	8200607	NUT M6	8200607 NUT M6 (Valid for U.K.1998) DADO	$12.78 MSRP: ~~13.30~~ (3.9% off)	1
033	413609206	ADJUSTING SLEEVE	413609206 ADJUSTING SLEEVE (Valid for R.H.D. version - April 1994) REGISTRO	$65.79	2
034	N01100632	NUT M6	N01100632 NUT M6 (Valid for U.K.1998) DADO	$4.52 MSRP: ~~7.33~~ (38.3% off)	1
035	3332749	TIE ROD	3332749 TIE ROD (Valid for U.K.1998) TIRANTE	$110.91 MSRP: ~~116.00~~ (4.4% off)	1
036	3330824	BUSHING	3330824 BUSHING (Valid for U.K.1998) BOCCOLA	-	1	Enquire
037	8900204	PIN	8900204 PIN (Valid for U.K.1998) SA	$0.16 MSRP: ~~7.37~~ (97.8% off)	1
