Find Your Part

View All

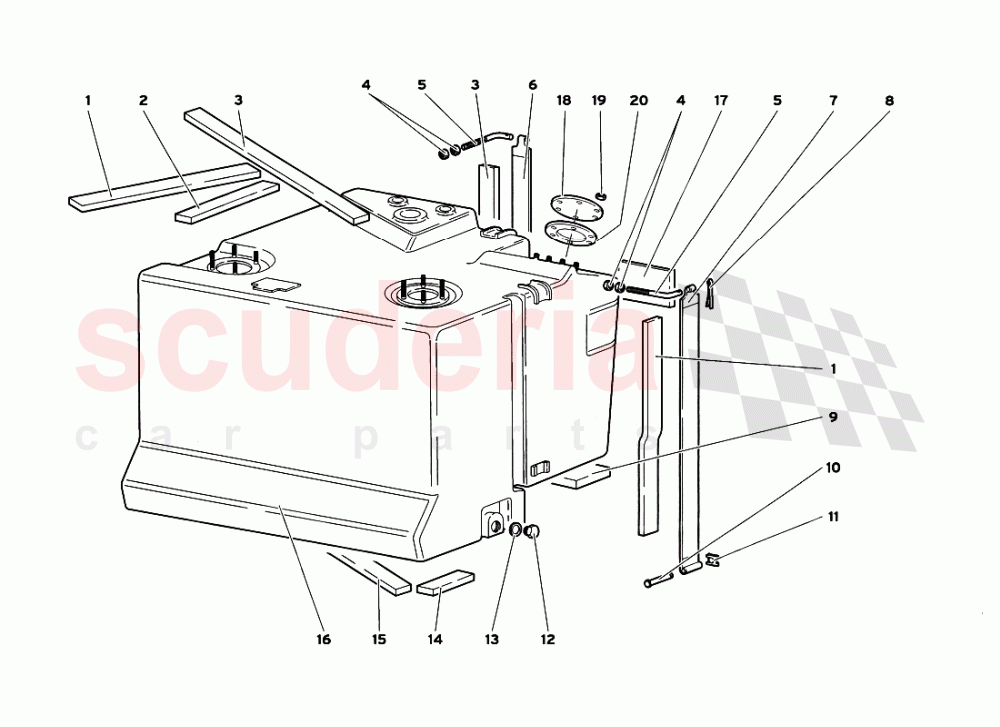

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	6231704	GASKET	6231704 GASKET PROTEZIONE	$73.32	2
002	6237956	SHIELD	6237956 SHIELD PROTEZIONE	-	1	Enquire
003	410201644	PROTECTION	410201644 PROTECTION PROTEZIONE	$17.47	2
004	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.89	4
005	6226884	TIE ROD	6226884 TIE ROD TIRANTE	-	2	Enquire
006	6237360	STRAP	6237360 STRAP FASCETTA	$77.54	1
007	6229506	STRAP	6229506 STRAP FASCETTA	$39.13	1
008	8820304	SPLIT PIN	8820304 SPLIT PIN COPIGLIA	$1.74 MSRP: ~~7.09~~ (75.5% off)	2
009	6231701	GASKET	6231701 GASKET PROTEZIONE	$58.63	2
010	6233763	JOURNAL	6233763 JOURNAL PERNO	$11.22	2
011	8580604	CLIP	8580604 CLIP MOLLETTA	$2.26	2
012	8931203	PLUG	8931203 PLUG TAPPO	$27.29	1
013	WHT003362	WASHER	WHT003362 WASHER RONDELLA	$1.37 MSRP: ~~7.17~~ (80.9% off)	1
014	6231706	GASKET	6231706 GASKET PROTEZIONE	$36.68	1
015	6231702	GASKET	6231702 GASKET PROTEZIONE	$4.90 MSRP: ~~5.00~~ (2% off)	1
016	62004580	FUEL TANK	62004580 FUEL TANK SERBATOIO BENZINA	$2,760.55	1
017	6237368	SHIELD	6237368 SHIELD PROTEZIONE	$19.36	1
018	62004582	PLUG	62004582 PLUG TAPPO	$53.49	1
019	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT DADO IN STOCK	$0.82 MSRP: ~~7.26~~ (88.7% off)	6
020	6205360	GASKET IN STOCK	6205360 GASKET GUARNIZIONE IN STOCK	$98.53	1
