Rear Suspension of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

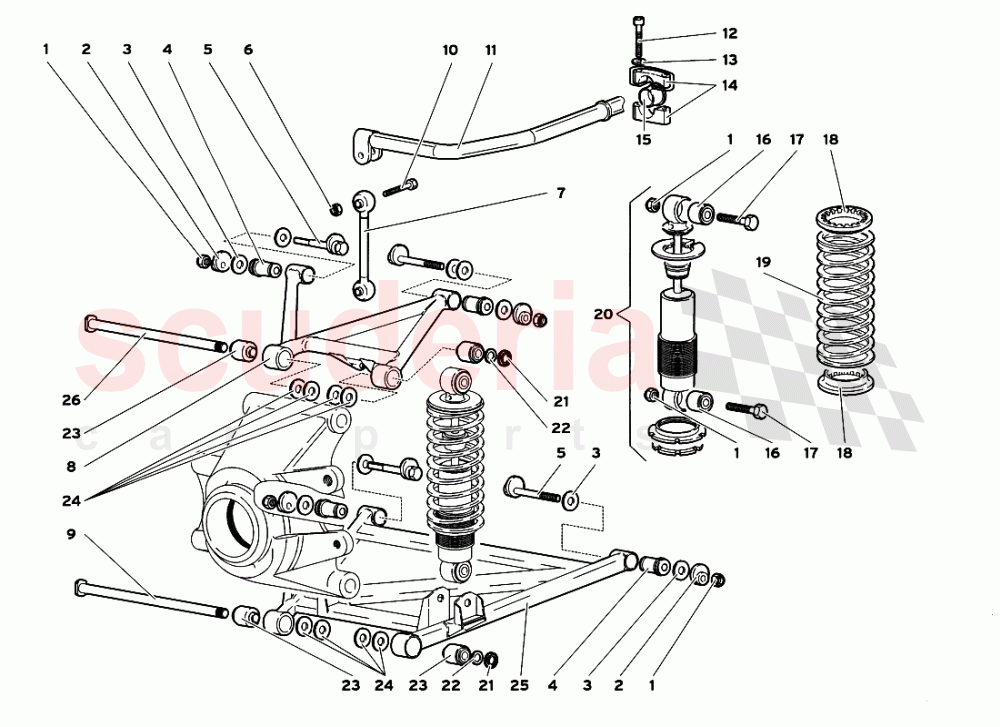

Lamborghini Diablo GT (1999-2000) - Rear Suspension

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT003355	NUT M12X1,25 IN STOCK	WHT003355 NUT M12X1,25 DADO IN STOCK	$21.86	8
002	410407127A	BOLT	410407127A BOLT ECCENTRICO	$2,318.56	8
003	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM SPESSORE2 MM	$6.66	1
003	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM SPESSORE1 MM	$4.52	1
003	5133488	SHIM	5133488 SHIM SPESSORE1.5 MM	$3.25	1
003	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM SPESSORE2,5MM	$7.32	1
003	410407295D	WASHER	410407295D WASHER SPESSORE3 MM	$29.71	1
004	8921206	RESILIENT BUSHING	8921206 RESILIENT BUSHING BOCCOLA ELASTICA	$50.31	8
005	410407127A	BOLT	410407127A BOLT PERNO CON ECCENTRICO	$2,318.56	8
006	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.16 MSRP: ~~7.28~~ (84.1% off)	4
007	410411317	CONNECTING ROD	410411317 CONNECTING ROD BIELLA COMPLETA	$438.19	2
008	5225909	ARM	5225909 ARM BRACCIO SUPERIORE SX	$2,656.13	1
008	5225908	RH UPPER SUSPENSION ARM	5225908 RH UPPER SUSPENSION ARM	$2,388.33	1
009	5225205	PIN	5225205 PIN PERNO	$91.82	2
010	8100810	SCREW	8100810 SCREW VITE	-	4	Enquire
011	52005049	TORSION BAR	52005049 TORSION BAR BARRA TORSIONE	$663.77	1
012	WHT002960	SCREW IN STOCK	WHT002960 SCREW VITE IN STOCK	$9.03	4
013	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	4
014	52003970	RETAINER	52003970 RETAINER CAVALLOTTO	$161.28	2
015	52003966	BUSHING	52003966 BUSHING BOCCOLA	$67.60	2
016	410512383	FLEXIBLE BUSHING	410512383 FLEXIBLE BUSHING	$587.37	8
017	8101269	SCREW	8101269 SCREW VITE	$5.14	8
018	410512385	RUBBER RING IN STOCK	410512385 RUBBER RING IN STOCK	$53.43	8
019	52004952	SPRING	52004952 SPRING MOLLA	$807.69	4
020	5233166	SHOCK ABSORBER (lifting system)	5233166 SHOCK ABSORBER (lifting system) use part number 0R1320014 kit	-	4	Enquire
021	8251702	PLUG IN STOCK	8251702 PLUG GHIERA IN STOCK	$3.85 MSRP: ~~3.95~~ (2.5% off)	4
022	8401708	WASHER	8401708 WASHER RONDELLA	$2.56	4
023	5225207	RESILIENT BUSHING	5225207 RESILIENT BUSHING BOCCOLA ELASTICA	$454.50	8
024	8401710	WASHER	8401710 WASHER RONDELLA	$41.45	24
025	5225906	ARM	5225906 ARM BRACCIO INFERIORE DX	$1,990.31	1
025	5225907	ARM	5225907 ARM BRACCIO INFERIORE SX	$1,968.56	1
026	5225204	PIN	5225204 PIN PERNO	$91.82	2
