Electrical System 1 of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

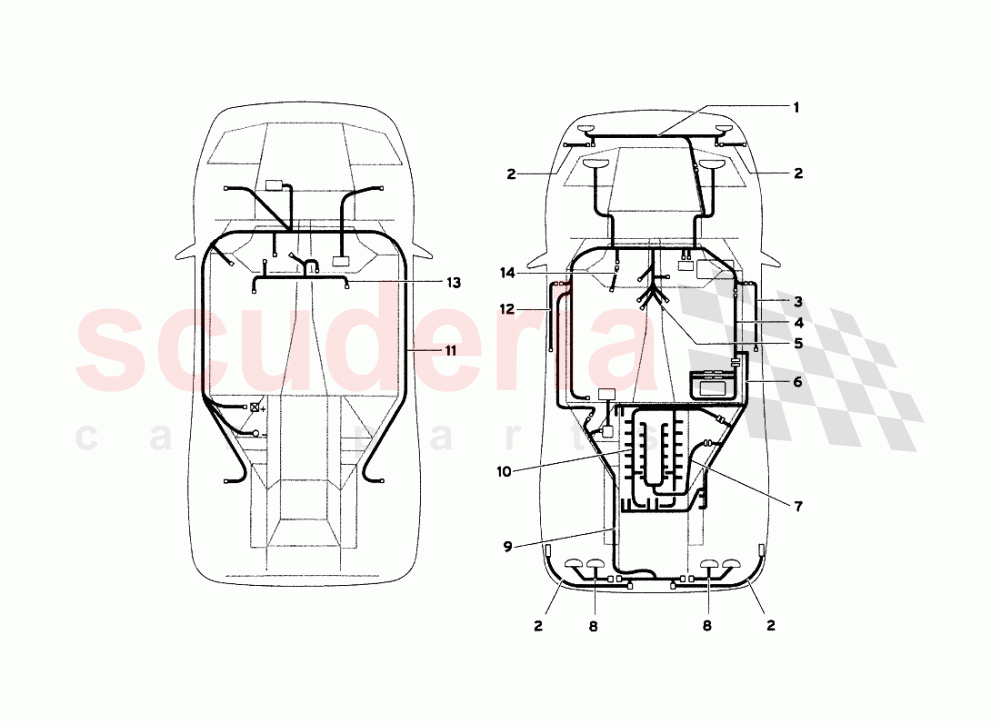

Lamborghini Diablo VT 6.0 (2000-2001) - Electrical System 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	61008762	FRONT BUMPER WIRING	61008762 FRONT BUMPER WIRING (Valid for vehicle No. 1LA12640 and from vehicle No. 1LA1276)	$54.66	1
001	61005185	FRONT BUMPER WIRING	61005185 FRONT BUMPER WIRING (Valid up to vehicle No. 1LA12760 except for vehicle No. 1LA12640)	$262.41	1
002	61008778	SIDE MARKER WIRING	61008778 SIDE MARKER WIRING	-	4	Enquire
002	61008778	SIDE MARKER WIRING	61008778 SIDE MARKER WIRING	-	1	Enquire
003	61005183	LH DOOR WIRING	61005183 LH DOOR WIRING	$492.57 MSRP: ~~513.00~~ (4% off)	1
004	61005182	RH REAR WIRING	61005182 RH REAR WIRING (Valid up to vehicle No. 1LA12760 except for vehicle No. 1LA12640)	-	1	Enquire
004	61008758	RH REAR WIRING	61008758 RH REAR WIRING (Valid for vehicle No. 1LA12640 and from vehicle No. 1LA1276)	$508.67	1
005	61005178	CENTRAL WIRING	61005178 CENTRAL WIRING (Valid up to vehicle No. 1LA12760 except for vehicle No. 1LA12640)	$3,083.13	1
005	61008754	CENTRAL WIRING	61008754 CENTRAL WIRING (Valid for vehicle No. 1LA12640 and from vehicle No. 1LA1276)	$3,256.81	1
006	61008755	ENGINE-INJECTION WIRING	61008755 ENGINE-INJECTION WIRING	$449.12	1
007	61008757	INJECTION WIRING	61008757 INJECTION WIRING	$6,339.92	1
008	61008782	RH/LH REAR CLUSTER WIRING	61008782 RH/LH REAR CLUSTER WIRING	$22.23	2
009	61008759	LH REAR WIRING	61008759 LH REAR WIRING	$642.67	1
010	61008756	ENGINE-IGNITION WIRING	61008756 ENGINE-IGNITION WIRING	$384.61 MSRP: ~~389.00~~ (1.1% off)	1
011	61007725	ABS WIRING	61007725 ABS WIRING	-	1	Enquire
011	61008777	ABS WIRING	61008777 ABS WIRING (Valid for vehicle No. 1LA12640 and from vehicle No. 1LA1276)	-	1	Enquire
011	61006896	ABS WIRING	61006896 ABS WIRING (Valid up to vehicle No. 1LA12760 except for vehicle No. 1LA12640)	$552.12	1
012	61005183	LH DOOR WIRING	61005183 LH DOOR WIRING	$492.57 MSRP: ~~513.00~~ (4% off)	1
013	61005184	AIRBAG WIRING	61005184 AIRBAG WIRING	$154.47	1
014	6138213	OBD II ABS AIRBAG WIRING	6138213 OBD II ABS AIRBAG WIRING (Valid up to vehicle No. 1LA12760 except for vehicle No. 1LA12640)	$33.06	1
014	61008774	OBD II ABS AIRBAG WIRING	61008774 OBD II ABS AIRBAG WIRING (Valid for vehicle No. 1LA12640 and from vehicle No. 1LA1276)	$33.33	1
