Windshield Wiper

Lamborghini Aventador LP780 Ultimae Roadster

Illustration Number: 955.01.00

Find Your Part

Lamborghini Aventador LP780 Ultimae Roadster - WINDSHIELD WIPER (955.01.00)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
471955405C WIPER ARM $194.80 To Order
472955406C WIPER ARM $199.76 To Order
Photo Part No Description Price (each) Stock
471955406D WIPER ARM $826.29 To Order
472955405D WIPER ARM $204.08 To Order
Photo Part No Description Price (each) Stock
470955777 LOCKING PIN $2.08 To Order
Photo Part No Description Price (each) Stock
N90226404 HEXAGON COLLAR NUT SELF-LOCKING $2.29 To Order
Photo Part No Description Price (each) Stock
N91048804 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD $0.98 IN STOCK
Photo Part No Description Price (each) Stock
470955155 HEXAGON NUT $4.90 To Order
Photo Part No Description Price (each) Stock
471955119 WIPER MOTOR $557.81 To Order
472955119 WIPER MOTOR $639.77 To Order
Photo Part No Description Price (each) Stock
470955483 SEAL RING $9.27 To Order
Photo Part No Description Price (each) Stock
5N0955205 CAP $2.96 IN STOCK
Photo Part No Description Price (each) Stock
471955023D BASE, WINDSHIELD WIPER $856.19 To Order
472955023D BASE, WINDSHIELD WIPER $942.23 To Order
Photo Part No Description Price (each) Stock
471955426A AERO WIPER BLADE DRIVER SIDE LHD $125.72 IN STOCK
472955426A AERO WIPER BLADE $125.72 IN STOCK
Photo Part No Description Price (each) Stock
471955425A AERO WIPER BLADE PASSENGER SIDE LHD $125.72 IN STOCK
472955425A AERO WIPER BLADE $125.72 IN STOCK
Photo Part No Description Price (each) Stock
1J0955276B CAP $9.61 To Order
Photo Part No Description Price (each) Stock
470955251 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
N0444104 THREADED PIN $3.16 To Order
Photo Part No Description Price (each) Stock
N10609201 HEXAGON COLLAR NUT $0.43 IN STOCK
View All

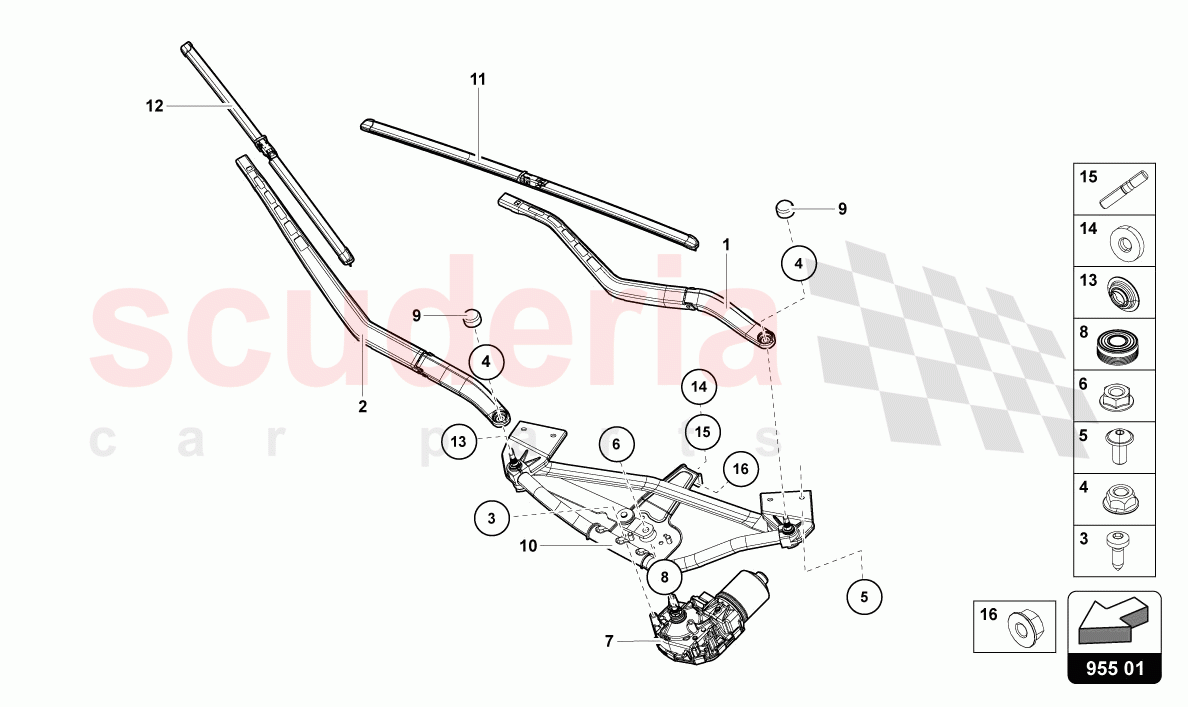

WINDSHIELD WIPER of Lamborghini Lamborghini Aventador LP780 Ultimae Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 471955405C
WIPER ARM
LHD 		$194.80 1
1 472955406C
WIPER ARM
RHD 		$199.76 1
2 471955406D
WIPER ARM
LHD 		$826.29 1
2 472955405D
WIPER ARM
RHD 		$204.08 1
3 470955777
LOCKING PIN 		$2.08 (70.5% off) 3
4 N90226404
HEXAGON COLLAR NUT SELF-LOCKING
M8 		$2.29 (68.3% off) 2
5 N91048804
SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
M8X16
IN STOCK 		$0.98 (92% off) 5
6 470955155
HEXAGON NUT 		$4.90 1
7 471955119
WIPER MOTOR
LHD 		$557.81 1
7 472955119
WIPER MOTOR
RHD 		$639.77 1
8 470955483
SEAL RING 		$9.27 1
9 5N0955205
CAP
IN STOCK 		$2.96 2
10 471955023D
BASE, WINDSHIELD WIPER
LHD 		$856.19 1
10 472955023D
BASE, WINDSHIELD WIPER
RHD 		$942.23 1
11 471955426A
AERO WIPER BLADE DRIVER SIDE LHD
PASSENGER SIDE- LHD
IN STOCK 		$125.72 1
11 472955426A
AERO WIPER BLADE
DRIVER SIDE- RHD
IN STOCK 		$125.72 1
12 471955425A
AERO WIPER BLADE PASSENGER SIDE LHD
DRIVER SIDE- LHD
IN STOCK 		$125.72 1
12 472955425A
AERO WIPER BLADE
PASSENGER SIDE- RHD
IN STOCK 		$125.72 1
13 1J0955276B
CAP 		$9.61 2
14 470955251
WASHER 		- 1 Enquire
15 N0444104
THREADED PIN 		$3.16 1
16 N10609201
HEXAGON COLLAR NUT
M8
IN STOCK 		$0.43 (94.1% off) 1
