AIR DUCT CARDBOARD of Lamborghini Lamborghini Aventador LP780 Ultimae Roadster

View All

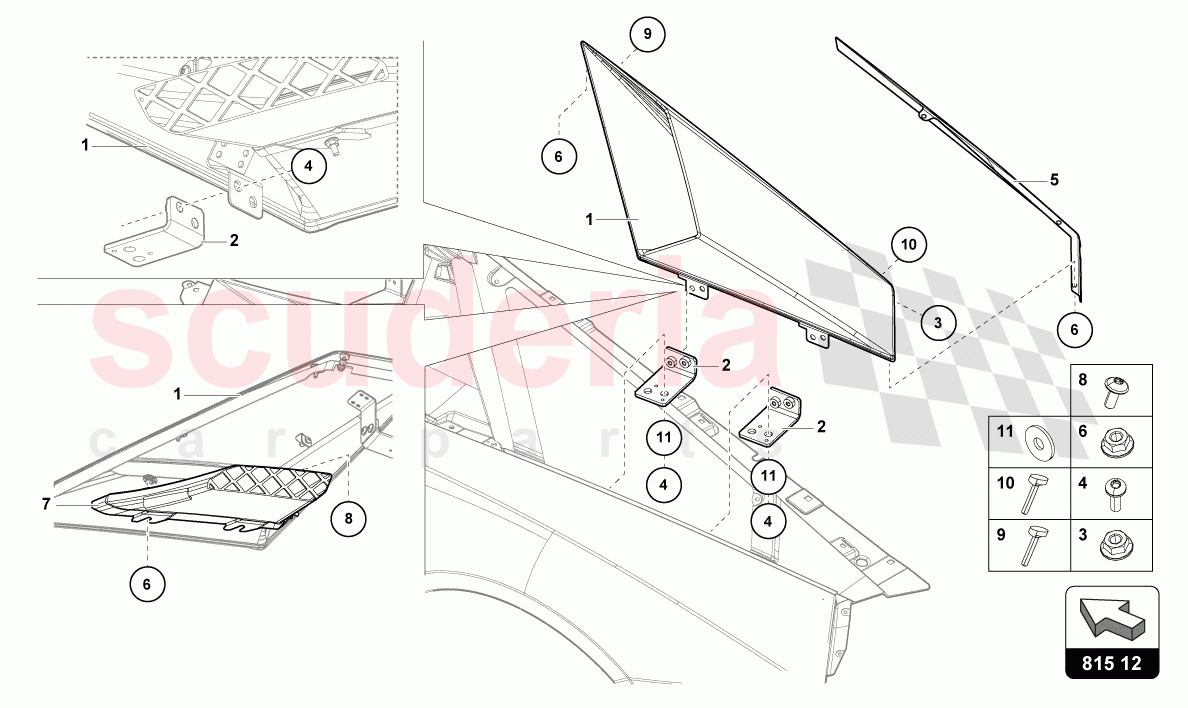

Lamborghini Aventador LP780 Ultimae Roadster - AIR DUCT CARDBOARD (815.12.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470119263J	AIR INTAKE TRIM PLATE	Enquire	To Order
	470119264J	AIR INTAKE TRIM PLATE	Enquire	To Order
	470198201	AIR INTAKE TRIM PLATE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	470813893A	ARM	Enquire	To Order
	470813894A	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10017304	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10714802	TORX LENS FLANGE SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470853053	TRIM	Enquire	To Order
	470853054	TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10017307	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470853624B	AIR GUIDE	Enquire	To Order
	470853625B	AIR GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90944604	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470119555	PIN	Enquire	To Order
	470119556	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470119555A	PIN	Enquire	To Order
	470119556A	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01166623	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	470119263J	AIR INTAKE TRIM PLATE	470119263J AIR INTAKE TRIM PLATE WITH PRIMER-LEFT	-	1	Enquire
1	470119264J	AIR INTAKE TRIM PLATE	470119264J AIR INTAKE TRIM PLATE WITH PRIMER-RIGHT	-	1	Enquire
1	470198201	AIR INTAKE TRIM PLATE	470198201 AIR INTAKE TRIM PLATE CARBON LOOK MATT-LEFT	-	1	Enquire
1	470198201A	AIR INTAKE TRIM PLATE	470198201A AIR INTAKE TRIM PLATE CARBON LOOK SHINY - AD PERSONAM-LEFT	-	1	Enquire
1	470198202	AIR INTAKE TRIM PLATE	470198202 AIR INTAKE TRIM PLATE CARBON LOOK MATT-RIGHT	-	1	Enquire
1	470198202A	AIR INTAKE TRIM PLATE	470198202A AIR INTAKE TRIM PLATE CARBON LOOK SHINY - AD PERSONAM-RIGHT	-	1	Enquire
2	470813893A	ARM	470813893A ARM LEFT	-	1	Enquire
2	470813894A	ARM	470813894A ARM RIGHT	-	1	Enquire
3	N10017304	HEXAGON COLLAR NUT	N10017304 HEXAGON COLLAR NUT M5	-	8	Enquire
4	N10714802	TORX LENS FLANGE SCREW	N10714802 TORX LENS FLANGE SCREW M6X18	-	16	Enquire
5	470853053	TRIM	470853053 TRIM LEFT	-	1	Enquire
5	470853054	TRIM	470853054 TRIM RIGHT	-	1	Enquire
6	N10017307	HEXAGON COLLAR NUT	N10017307 HEXAGON COLLAR NUT M5	-	14	Enquire
7	470853624B	AIR GUIDE	470853624B AIR GUIDE RIGHT	-	1	Enquire
7	470853625B	AIR GUIDE	470853625B AIR GUIDE LEFT	-	1	Enquire
8	N90944604	OVAL HEXAGON SOCKET HEAD BOLT	N90944604 OVAL HEXAGON SOCKET HEAD BOLT M5X12	-	2	Enquire
9	470119555	PIN	470119555 PIN LEFT UPPER	-	1	Enquire
9	470119556	PIN	470119556 PIN RIGHT UPPER	-	1	Enquire
10	470119555A	PIN	470119555A PIN LEFT LOWER	-	1	Enquire
10	470119556A	PIN	470119556A PIN RIGHT LOWER	-	1	Enquire
11	N01166623	WASHER	N01166623 WASHER 6 -4X18X1,6	-	16	Enquire
