Name: TRIM FRAME REAR PART
Rating: 5.0 (1 reviews)

TRIM FRAME REAR PART of Lamborghini Lamborghini Aventador LP780 Ultimae Roadster

View All

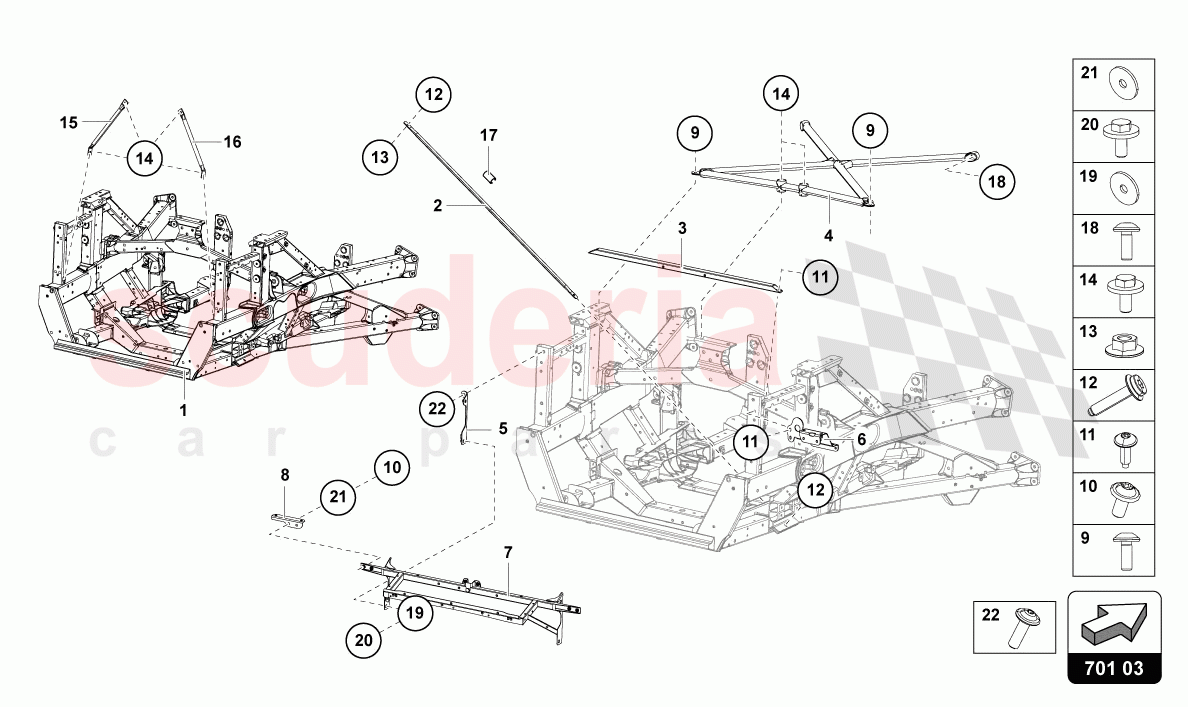

Lamborghini Aventador LP780 Ultimae Roadster - TRIM FRAME REAR PART (701.03.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470813031F	FRAME	$28,319.79	To Order

Photo	Part No	Description	Price (each)	Stock
	470813249B	CROSS MEMBER	$346.79	To Order

Photo	Part No	Description	Price (each)	Stock
	470814519D	CROSS MEMBER	$344.08	To Order

Photo	Part No	Description	Price (each)	Stock
	470814587C	CROSS MEMBER	$7,967.44	To Order
	475814587	CROSS MEMBER	$2,755.38	To Order

Photo	Part No	Description	Price (each)	Stock
	470814657B	ARM	$58.46	To Order
	470814658B	ARM	$58.46	To Order

Photo	Part No	Description	Price (each)	Stock
	470814185E	ARM	Enquire	To Order
	470814186E	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0195306	BOLT, HEX. HD. WITH SHOULDER, SELF-LOCKING	$3.05	To Order

Photo	Part No	Description	Price (each)	Stock
	N10406504	OVAL HEXAGON SOCKET HEAD BOLT	$1.74	To Order

Photo	Part No	Description	Price (each)	Stock
	N90900401	HEX SOCKET OVAL HEAD COLLARED	$1.25	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT001237	HEX SOCKET HEAD COLLARED BOLT	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	N90798805	HEXAGON COLLAR NUT	$2.08	To Order

Photo	Part No	Description	Price (each)	Stock
	N90863802	HEXAGON HEAD BOLT (COMBI)	$1.47	To Order

Photo	Part No	Description	Price (each)	Stock
	470813465B	SIDE REINFORCEMENT	$56.25	To Order

Photo	Part No	Description	Price (each)	Stock
	470813466B	SIDE REINFORCEMENT	$56.25	To Order

Photo	Part No	Description	Price (each)	Stock
	N10761201	TOOTHED LOCK WASHER	$6.20	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT001942	WASHER	$3.30	To Order

Photo	Part No	Description	Price (each)	Stock
	N90848003	HEX COLLARED BOLT	$4.64	To Order

Photo	Part No	Description	Price (each)	Stock
	N0116945	WASHER	$0.82	To Order

Photo	Part No	Description	Price (each)	Stock
	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	$11.56	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	470813031F	FRAME	470813031F FRAME CONTACT YOUR AREA MANAGER-REAR	$28,319.79	1
2	470813249B	CROSS MEMBER	470813249B CROSS MEMBER CONTACT YOUR AREA MANAGER-REAR	$346.79	2
3	470814519D	CROSS MEMBER	470814519D CROSS MEMBER REAR	$344.08	1
4	470814587C	CROSS MEMBER	470814587C CROSS MEMBER CARBON- CONTACT YOUR AREA MANAGER - PARTICULAR DIMENSION-REAR	$7,967.44	1
4	475814587	CROSS MEMBER	475814587 CROSS MEMBER REAR	$2,755.38	1
5	470814657B	ARM	470814657B ARM LEFT REAR	$58.46	1
5	470814658B	ARM	470814658B ARM RIGHT REAR	$58.46	1
8	470814185E	ARM	470814185E ARM LEFT REAR	-	1	Enquire
8	470814186E	ARM	470814186E ARM LEFT REAR	-	1	Enquire
9	N0195306	BOLT, HEX. HD. WITH SHOULDER, SELF-LOCKING	N0195306 BOLT, HEX. HD. WITH SHOULDER, SELF-LOCKING M8X25	$3.05 MSRP: ~~7.15~~ (57.3% off)	14
10	N10406504	OVAL HEXAGON SOCKET HEAD BOLT	N10406504 OVAL HEXAGON SOCKET HEAD BOLT M6X12	$1.74 MSRP: ~~7.20~~ (75.8% off)	4
11	N90900401	HEX SOCKET OVAL HEAD COLLARED	N90900401 HEX SOCKET OVAL HEAD COLLARED M6X20	$1.25	2
12	WHT001237	HEX SOCKET HEAD COLLARED BOLT	WHT001237 HEX SOCKET HEAD COLLARED BOLT M8X40	$1.43 MSRP: ~~7.16~~ (80% off)	4
13	N90798805	HEXAGON COLLAR NUT	N90798805 HEXAGON COLLAR NUT M8	$2.08 MSRP: ~~7.29~~ (71.5% off)	2
14	N90863802	HEXAGON HEAD BOLT (COMBI)	N90863802 HEXAGON HEAD BOLT (COMBI) WITH THE READLOCK-M8X25	$1.47 MSRP: ~~7.21~~ (79.6% off)	6
15	470813465B	SIDE REINFORCEMENT	470813465B SIDE REINFORCEMENT LEFT REAR	$56.25	1
16	470813466B	SIDE REINFORCEMENT	470813466B SIDE REINFORCEMENT RIGHT REAR	$56.25	1
17	N10761201	TOOTHED LOCK WASHER	N10761201 TOOTHED LOCK WASHER 14X24X30	$6.20	2
19	WHT001942	WASHER	WHT001942 WASHER	$3.30	2
20	N90848003	HEX COLLARED BOLT	N90848003 HEX COLLARED BOLT M8X18	$4.64	2
21	N0116945	WASHER	N0116945 WASHER 7X22	$0.82	4
22	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	N91000203 OVAL HEXAGON SOCKET HEAD BOLT M8X25-H	$11.56	4
