Find Your Part

DIFFERENTIAL REAR of Lamborghini Lamborghini Aventador LP780 Ultimae Roadster

View All

Lamborghini Aventador LP780 Ultimae Roadster - DIFFERENTIAL REAR (500.01.00)

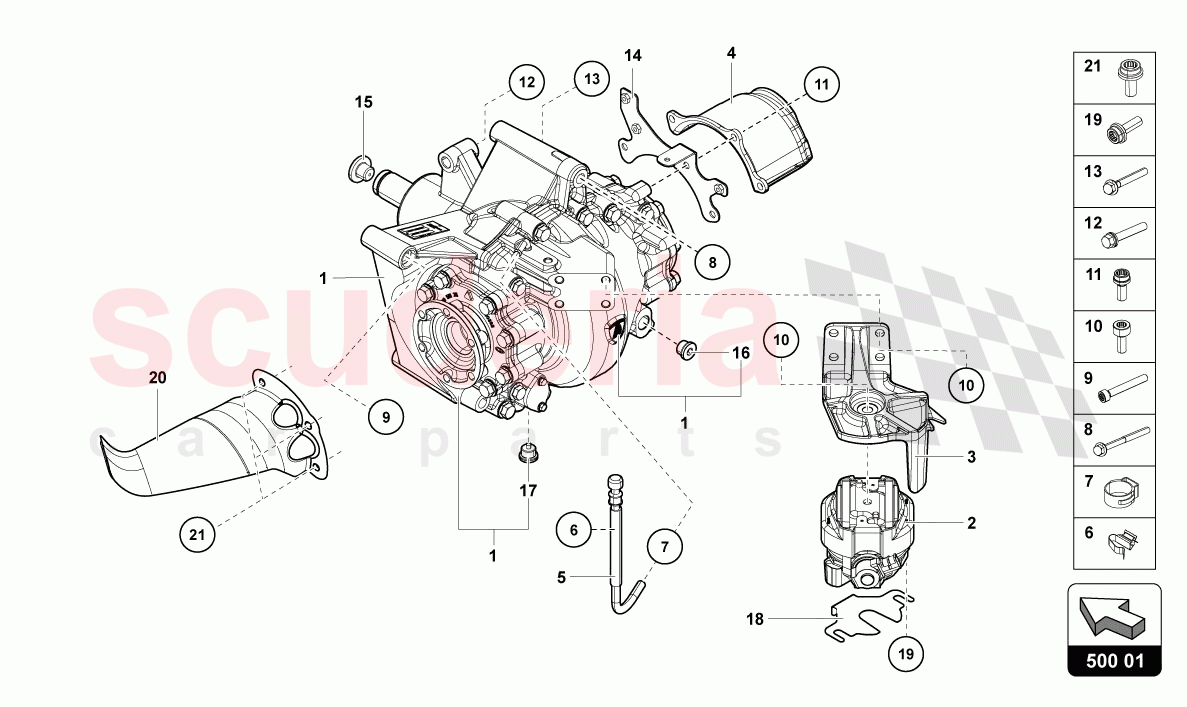

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	B9500043D	DIFFERENTIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	420199381T	ENGINE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470199353A	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470501713	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	B9525049B	VENT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L0301565A	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10198301	EAR CRIMP HOSE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10716901	HEX COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10640301	HEX COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91137001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10717001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90961103	RIBBED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10640901	HEX COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470525783	MOUNTING BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1S409966	END CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	B9525820	BUNGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	B9525151	OIL DRAIN PLUG, MAGNETIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470199137C	SHIM	Enquire	To Order
	470199137D	SHIM	Enquire	To Order
	470199137E	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10689301	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470501721C	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10717001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	B9500043D	DIFFERENTIAL	B9500043D DIFFERENTIAL REAR	-	1	Enquire
2	420199381T	ENGINE MOUNTING	420199381T ENGINE MOUNTING	-	1	Enquire
3	470199353A	BRACKET	470199353A BRACKET	-	1	Enquire
4	470501713	HEAT SHIELD	470501713 HEAT SHIELD	-	1	Enquire
5	B9525049B	VENT HOSE	B9525049B VENT HOSE	-	1	Enquire
6	7L0301565A	CLIP	7L0301565A CLIP	-	1	Enquire
7	N10198301	EAR CRIMP HOSE CLAMP	N10198301 EAR CRIMP HOSE CLAMP 13.3X7X0.6	-	1	Enquire
8	N10716901	HEX COLLARED BOLT	N10716901 HEX COLLARED BOLT M12X1 -5X170X90	-	2	Enquire
9	N10640301	HEX COLLARED BOLT	N10640301 HEX COLLARED BOLT M12X1 -5X100	-	1	Enquire
10	N91137001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91137001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10X28	-	5	Enquire
11	N10717001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10717001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X18	-	3	Enquire
12	N90961103	RIBBED BOLT	N90961103 RIBBED BOLT M12X1 -5X75	-	1	Enquire
13	N10640901	HEX COLLARED BOLT	N10640901 HEX COLLARED BOLT M12X1 -5X110X90	-	1	Enquire
14	470525783	MOUNTING BAR	470525783 MOUNTING BAR	-	1	Enquire
15	1S409966	END CAP	1S409966 END CAP	-	1	Enquire
16	B9525820	BUNGS	B9525820 BUNGS 1 PLUG WITH WASHER FOR SERVICE INSPECTION-M18X1 -5	-	1	Enquire
17	B9525151	OIL DRAIN PLUG, MAGNETIC	B9525151 OIL DRAIN PLUG, MAGNETIC 1 MAGNETIC PLUG WITH WASHER FOR SERVICE INSPECTION-M18X1 -5	-	1	Enquire
18	470199137C	SHIM	470199137C SHIM FROM VIN 6181-0 -5 MM	-	1	Enquire
18	470199137D	SHIM	470199137D SHIM FROM VIN 6181-1 MM	-	1	Enquire
18	470199137E	SHIM	470199137E SHIM FROM VIN 6181-2 MM	-	1	Enquire
19	N10689301	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10689301 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X25	-	2	Enquire
20	470501721C	HEAT SHIELD	470501721C HEAT SHIELD	-	1	Enquire
21	N10717001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10717001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X18	-	3	Enquire

DIFFERENTIAL REAR (500.01.00)

HOUSING FOR DIFFERENTIAL REAR (500.02.00)

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout

Differential Rear

Lamborghini Aventador LP780 Ultimae Roadster

Illustration Number: 500.01.00

Lamborghini Aventador LP780 Ultimae Roadster - DIFFERENTIAL REAR (500.01.00)
