SUSPENSION FRONT of Lamborghini Lamborghini Aventador LP780 Ultimae Roadster

View All

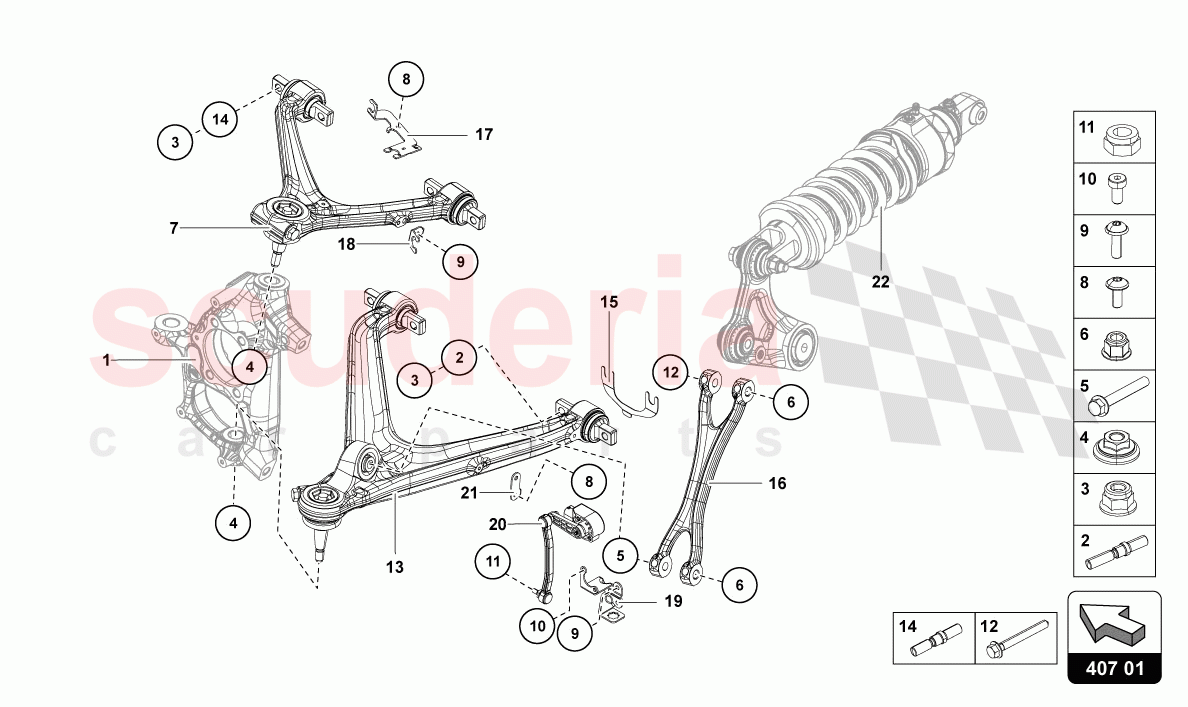

Lamborghini Aventador LP780 Ultimae Roadster - SUSPENSION FRONT (407.01.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WHT005396	THREADED PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10272302	HEXAGON COLLAR NUT SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT004898	HEXAGON COLLAR NUT SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10736901	HEXAGON BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10106402	HEXAGON COLLAR NUT SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470407505G	WISHBONE	Enquire	To Order
	470407506G	WISHBONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91055501	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10434301	SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01118312	HEXAGON NUT, SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10640301	HEX COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470407151H	WISHBONE	Enquire	To Order
	470407152H	WISHBONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT005397	THREADED PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470407203E	BALANCING PLATE	Enquire	To Order
	470407203F	BALANCING PLATE	Enquire	To Order
	470407203G	BALANCING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470413383B	INSULATION STRIP	Enquire	To Order
	470413383B	INSULATION STRIP	Enquire	To Order
	470413383E	INSULATION STRIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470971003	BRACKET	Enquire	To Order
	470971004	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470611845	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470611851B	BRACKET	Enquire	To Order
	470611852B	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470941273A	POSITION SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470941287E	BRACKET	Enquire	To Order
	470941288E	BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	WHT005396	THREADED PIN	WHT005396 THREADED PIN M10X1 -25- M10X45	-	8	Enquire
3	N10272302	HEXAGON COLLAR NUT SELF-LOCKING	N10272302 HEXAGON COLLAR NUT SELF-LOCKING M10	-	16	Enquire
4	WHT004898	HEXAGON COLLAR NUT SELF-LOCKING	WHT004898 HEXAGON COLLAR NUT SELF-LOCKING M14X1 -5	-	4	Enquire
5	N10736901	HEXAGON BOLT	N10736901 HEXAGON BOLT M12X1 -5X95	-	2	Enquire
6	N10106402	HEXAGON COLLAR NUT SELF-LOCKING	N10106402 HEXAGON COLLAR NUT SELF-LOCKING M12X1 -5	-	4	Enquire
7	470407505G	WISHBONE	470407505G WISHBONE LEFT UPPER	-	1	Enquire
7	470407506G	WISHBONE	470407506G WISHBONE RIGHT UPPER	-	1	Enquire
8	N91055501	OVAL HEXAGON SOCKET HEAD BOLT	N91055501 OVAL HEXAGON SOCKET HEAD BOLT M5X12	-	4	Enquire
9	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	N10714801 OVAL HEXAGON SOCKET HEAD BOLT M6X18	-	6	Enquire
10	N10434301	SOCKET HEAD BOLT	N10434301 SOCKET HEAD BOLT M5X10	-	4	Enquire
11	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING M6	-	2	Enquire
12	N10640301	HEX COLLARED BOLT	N10640301 HEX COLLARED BOLT M12X1 -5X100	-	2	Enquire
13	470407151H	WISHBONE	470407151H WISHBONE CONTACT YOUR AREA MANAGER-LEFT LOWER	-	1	Enquire
13	470407152H	WISHBONE	470407152H WISHBONE CONTACT YOUR AREA MANAGER-RIGHT LOWER	-	1	Enquire
14	WHT005397	THREADED PIN	WHT005397 THREADED PIN M10X1 -25 - M10X39	-	8	Enquire
15	470407203E	BALANCING PLATE	470407203E BALANCING PLATE 3 MM	-	4	Enquire
15	470407203F	BALANCING PLATE	470407203F BALANCING PLATE 1 MM	-	4	Enquire
15	470407203G	BALANCING PLATE	470407203G BALANCING PLATE 0 -5 MM	-	4	Enquire
16	470413383B	INSULATION STRIP	470413383B INSULATION STRIP	-	2	Enquire
16	470413383B	INSULATION STRIP	470413383B INSULATION STRIP NOT FOR SOUTH KOREA	-	2	Enquire
16	470413383E	INSULATION STRIP	470413383E INSULATION STRIP ONLY FOR SOUTH KOREA	-	2	Enquire
17	470971003	BRACKET	470971003 BRACKET LEFT	-	1	Enquire
17	470971004	BRACKET	470971004 BRACKET RIGHT	-	1	Enquire
18	470611845	BRACKET	470611845 BRACKET	-	2	Enquire
19	470611851B	BRACKET	470611851B BRACKET LEFT	-	1	Enquire
19	470611852B	BRACKET	470611852B BRACKET RIGHT	-	1	Enquire
20	470941273A	POSITION SENSOR	470941273A POSITION SENSOR LEFT AND RIGHT	-	2	Enquire
21	470941287E	BRACKET	470941287E BRACKET LEFT FRONT	-	1	Enquire
21	470941288E	BRACKET	470941288E BRACKET RIGHT FRONT	-	1	Enquire

SUSPENSION FRONT (407.01.00)

DRIVE SHAFT FRONT (407.02.00)

Haven't found what you're looking for?

More: Lamborghini Suspension Tuning Parts Need help? Call us

View Cart / Checkout

Suspension Front

Lamborghini Aventador LP780 Ultimae Roadster

Illustration Number: 407.01.00

Lamborghini Aventador LP780 Ultimae Roadster - SUSPENSION FRONT (407.01.00)
