Name: OIL COOLER REAR
Rating: 4.7 (1 reviews)

Find Your Part

View All

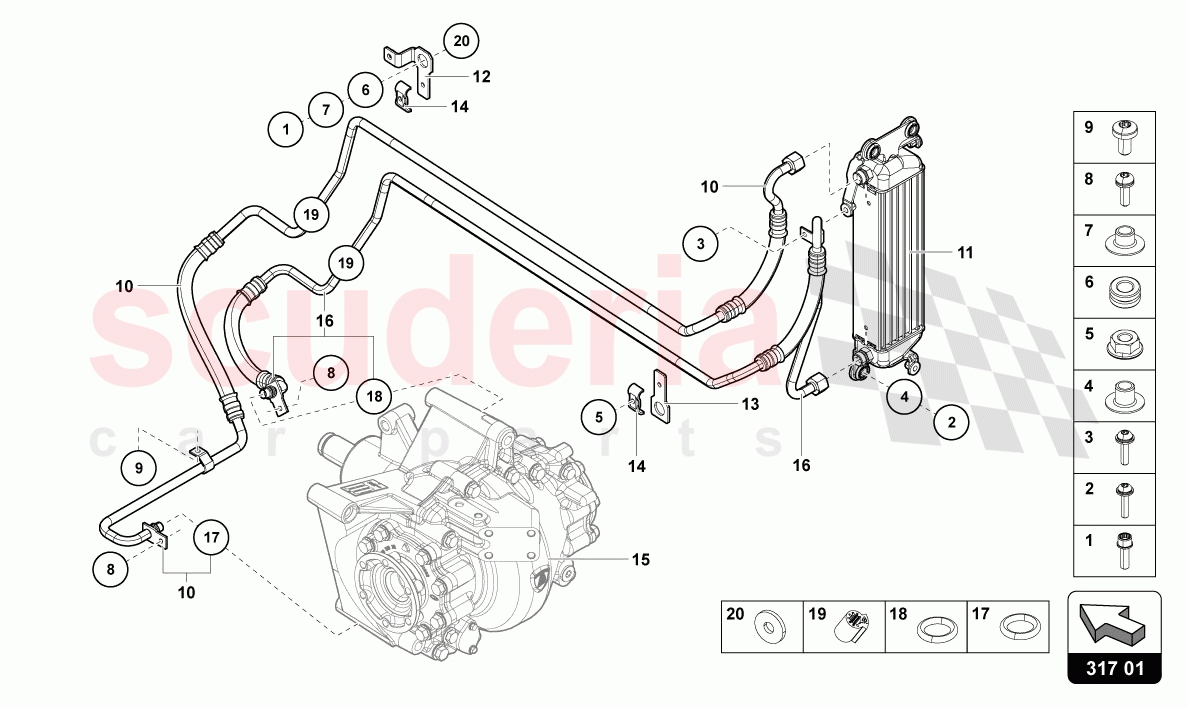

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N10720901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91054101	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8Z0129734	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508213	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4D0317867A	RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0903127	MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10347103	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10335202	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470511805B	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470511885B	OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470511538	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470511833	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4A0317171D	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470511822B	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90666003	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90666003	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10762301	TOOTHED LOCK WASHER	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	N10720901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N10720901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) M8X28	-	2	Enquire
2	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING M6X28	-	3	Enquire
3	N91054101	OVAL HEXAGON SOCKET HEAD BOLT	N91054101 OVAL HEXAGON SOCKET HEAD BOLT M6X25	-	1	Enquire
4	8Z0129734	BUSH	8Z0129734 BUSH	-	3	Enquire
5	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT M6	-	1	Enquire
6	4D0317867A	RUBBER BUSH	4D0317867A RUBBER BUSH	-	2	Enquire
7	4E0903127	MOUNTING	4E0903127 MOUNTING	-	2	Enquire
8	N10347103	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	N10347103 HEXAGON SOCKET OVAL HEAD BOLT (COMBI) M6X20	-	2	Enquire
9	N10335202	OVAL HEXAGON SOCKET HEAD BOLT	N10335202 OVAL HEXAGON SOCKET HEAD BOLT M6X12	-	1	Enquire
10	470511805B	PIPE	470511805B PIPE	-	1	Enquire
11	470511885B	OIL COOLER	470511885B OIL COOLER	-	1	Enquire
12	470511538	ARM	470511538 ARM	-	1	Enquire
13	470511833	ARM	470511833 ARM	-	1	Enquire
14	4A0317171D	CLAMP	4A0317171D CLAMP	-	2	Enquire
16	470511822B	PIPE	470511822B PIPE	-	1	Enquire
17	N90666003	O-RING	N90666003 O-RING 11 -5X3	-	1	Enquire
18	N90666003	O-RING	N90666003 O-RING 11 -5X3	-	1	Enquire
19	N10762301	TOOTHED LOCK WASHER	N10762301 TOOTHED LOCK WASHER 11 -5X21,5X30	-	2	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Oil Cooler Rear

Lamborghini Aventador LP780 Ultimae Roadster
