A/C CONDENSER of Lamborghini Lamborghini Aventador LP780 Ultimae Roadster

View All

Lamborghini Aventador LP780 Ultimae Roadster - A/C CONDENSER (260.01.00)

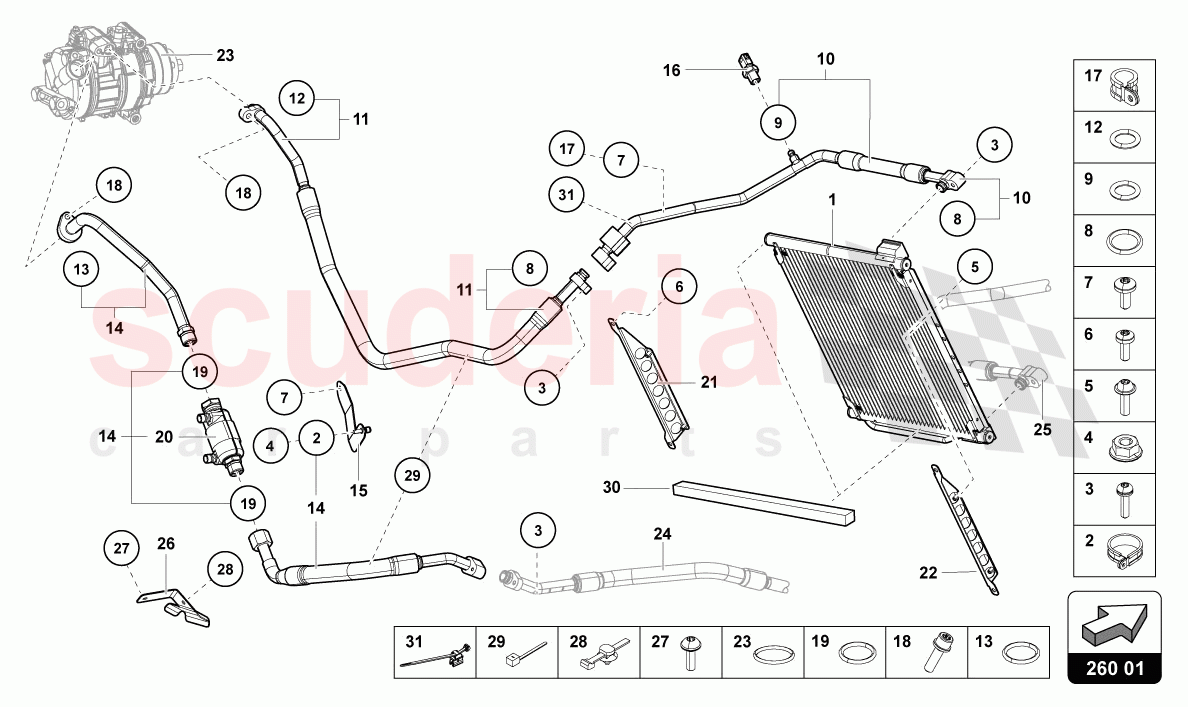

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470260401A	A/C CONDENSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90942301	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10347204	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508213	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10451408	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91096701	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7H0820896	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470260702D	FLANGED PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470260701B	FLANGED PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0260749A	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0260749C	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470260709C	FLANGED PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470201809	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4H0959126C	PRESSURE SENDER FOR REFRIGERANT CIRCUIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0206405	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10414402	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470260427A	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470260428A	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470260761	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0971838	CABLE TIES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10562301	CABLE TIES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470260423	SPONGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3D0971838M	CABLE TIE WITH TERMINAL SOCKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	470260401A	A/C CONDENSER	470260401A A/C CONDENSER	-	1	Enquire
2	N90942301	CLAMP	N90942301 CLAMP 48X15	-	1	Enquire
3	N10347204	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	N10347204 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING M6X25	-	3	Enquire
4	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT M6	-	1	Enquire
5	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N10569501 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD M5X16	-	4	Enquire
6	N10451408	OVAL HEXAGON SOCKET HEAD BOLT	N10451408 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	4	Enquire
7	N91096701	OVAL HEXAGON SOCKET HEAD BOLT	N91096701 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	2	Enquire
8	4E0260749B	SEAL RING	4E0260749B SEAL RING 13 -7X2,5	-	2	Enquire
9	7H0820896	O-RING	7H0820896 O-RING 7 -6X1,8	-	1	Enquire
10	470260702D	FLANGED PIPE	470260702D FLANGED PIPE	-	1	Enquire
11	470260701B	FLANGED PIPE	470260701B FLANGED PIPE	-	1	Enquire
12	4E0260749A	SEAL RING	4E0260749A SEAL RING 11X2 -5	-	2	Enquire
13	8E0260749C	SEAL RING	8E0260749C SEAL RING 23 -8X2,4	-	1	Enquire
14	470260709C	FLANGED PIPE	470260709C FLANGED PIPE	-	1	Enquire
15	470201809	BRACKET	470201809 BRACKET	-	1	Enquire
16	4H0959126C	PRESSURE SENDER FOR REFRIGERANT CIRCUIT	4H0959126C PRESSURE SENDER FOR REFRIGERANT CIRCUIT	-	1	Enquire
17	N0206405	CLAMP	N0206405 CLAMP 18X15	-	1	Enquire
18	N10414402	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	N10414402 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD M8X28	-	2	Enquire
21	470260427A	BRACKET	470260427A BRACKET LEFT	-	1	Enquire
22	470260428A	BRACKET	470260428A BRACKET RIGHT	-	1	Enquire
26	470260761	BRACKET	470260761 BRACKET	-	1	Enquire
27	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD M6X20	-	4	Enquire
28	3W0971838	CABLE TIES	3W0971838 CABLE TIES 4 -6X193MM 6,5/0,3-3,0MM	-	1	Enquire
29	N10562301	CABLE TIES	N10562301 CABLE TIES 4 -7X194	-	2	Enquire
30	470260423	SPONGE	470260423 SPONGE	-	2	Enquire
31	3D0971838M	CABLE TIE WITH TERMINAL SOCKET	3D0971838M CABLE TIE WITH TERMINAL SOCKET 4 -6X200MM 1-3MM	-	1	Enquire
