Lamborghini Aventador LP780 Ultimae Roadster - TIMING CHAIN (109.01.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7M115235B	SLIDING SHOE	$1,982.53	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109120E	ROLLER CHAIN	$182.14	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT005010A	COUNTERSUNK BOLT	$53.43	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT005401A	COUNTERSUNK BOLT	$50.40	To Order

Photo	Part No	Description	Price (each)	Stock
	N10689302	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$3.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M109307	BEARING SHELL	$198.26	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109350B	LENGTH-MEASURING DEVICE	$337.37	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109567D	GEAR	$533.60	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109225G	AXLE SHAFT	$2,540.33	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109229A	TIMING CHAIN	$1,458.36	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109077C	CHAIN TENSIONER	$1,315.86	To Order

Photo	Part No	Description	Price (each)	Stock
	3F109507B	CHAIN TENSIONER	$89.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M109248	BEARING SHELL	$264.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M103147	GASKET FOR FLAP	$31.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M103171F	COVER FOR TIMING CASE	$2,311.83	To Order

Photo	Part No	Description	Price (each)	Stock
	7M103070A	SEAL	$127.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M109498	CHAIN TENSIONER	$1,397.86	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109133C	BRACKET	$30.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M109264A	MOUNTING	$206.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT003048	WASHER 22 X 28 X 1.5	$3.67	IN STOCK

View All

Diagram Tap to enlarge

Timing Chain

Lamborghini Aventador LP780 Ultimae Roadster

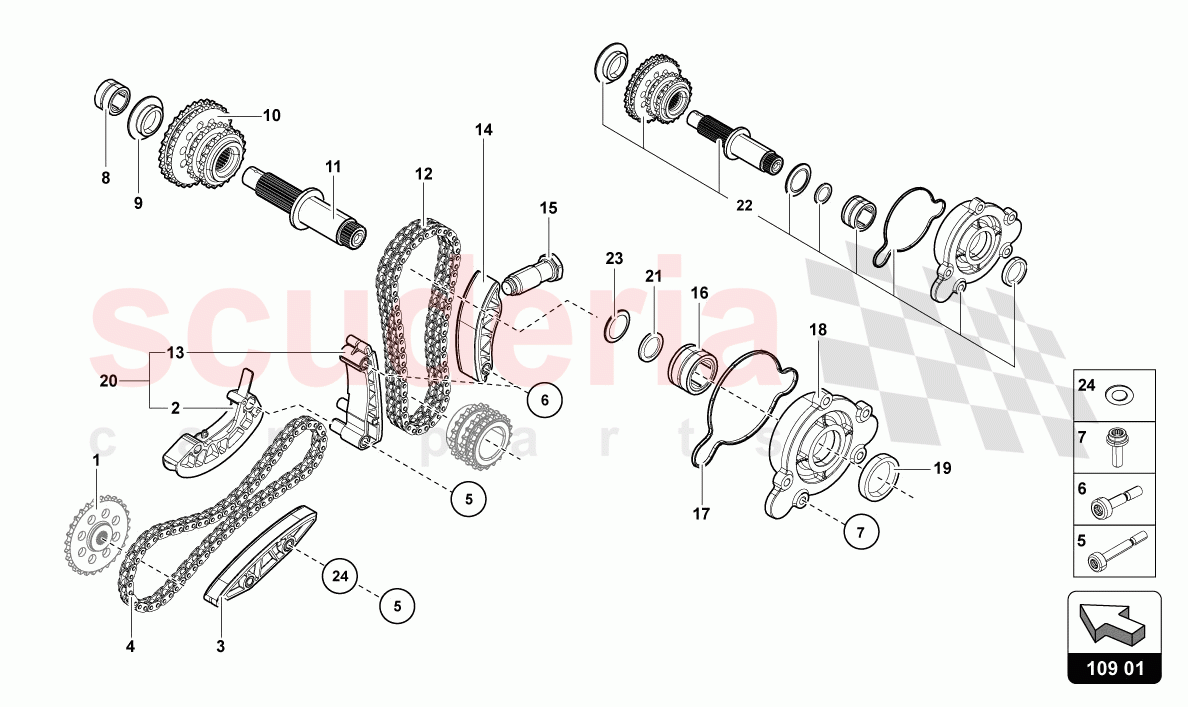

Illustration Number: 109.01.00

Lamborghini Aventador LP780 Ultimae Roadster - TIMING CHAIN (109.01.00)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
3	7M115235B	SLIDING SHOE	7M115235B SLIDING SHOE	$1,982.53	1
4	7M109120E	ROLLER CHAIN	7M109120E ROLLER CHAIN	$182.14	1
5	WHT005010A	COUNTERSUNK BOLT	WHT005010A COUNTERSUNK BOLT M8X60	$53.43	3
6	WHT005401A	COUNTERSUNK BOLT	WHT005401A COUNTERSUNK BOLT M8X44	$50.40	2
7	N10689302	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10689302 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X25 IN STOCK	$3.11 MSRP: ~~7.17~~ (56.6% off)	5
8	7M109307	BEARING SHELL	7M109307 BEARING SHELL	$198.26	1
9	7M109350B	LENGTH-MEASURING DEVICE	7M109350B LENGTH-MEASURING DEVICE	$337.37	1
10	7M109567D	GEAR	7M109567D GEAR	$533.60	1
11	7M109225G	AXLE SHAFT	7M109225G AXLE SHAFT	$2,540.33	1
12	7M109229A	TIMING CHAIN	7M109229A TIMING CHAIN LOWER	$1,458.36	1
14	7M109077C	CHAIN TENSIONER	7M109077C CHAIN TENSIONER	$1,315.86	1
15	3F109507B	CHAIN TENSIONER IN STOCK	3F109507B CHAIN TENSIONER IN STOCK	$89.23	1
16	7M109248	BEARING SHELL IN STOCK	7M109248 BEARING SHELL IN STOCK	$264.48	1
17	7M103147	GASKET FOR FLAP IN STOCK	7M103147 GASKET FOR FLAP IN STOCK	$31.59	1
18	7M103171F	COVER FOR TIMING CASE	7M103171F COVER FOR TIMING CASE	$2,311.83	1
19	7M103070A	SEAL IN STOCK	7M103070A SEAL IN STOCK	$127.46	1
20	7M109498	CHAIN TENSIONER	7M109498 CHAIN TENSIONER	$1,397.86	1
21	7M109133C	BRACKET IN STOCK	7M109133C BRACKET IN STOCK	$30.13	1
23	7M109264A	MOUNTING IN STOCK	7M109264A MOUNTING IN STOCK	$206.16	1
24	WHT003048	WASHER 22 X 28 X 1.5 IN STOCK	WHT003048 WASHER 22 X 28 X 1.5 22.0X28.0X1. 5 IN STOCK	$3.67	1
