WINDSCREEN WASHER SYSTEM of Lamborghini Lamborghini Aventador LP780 Ultimae

View All

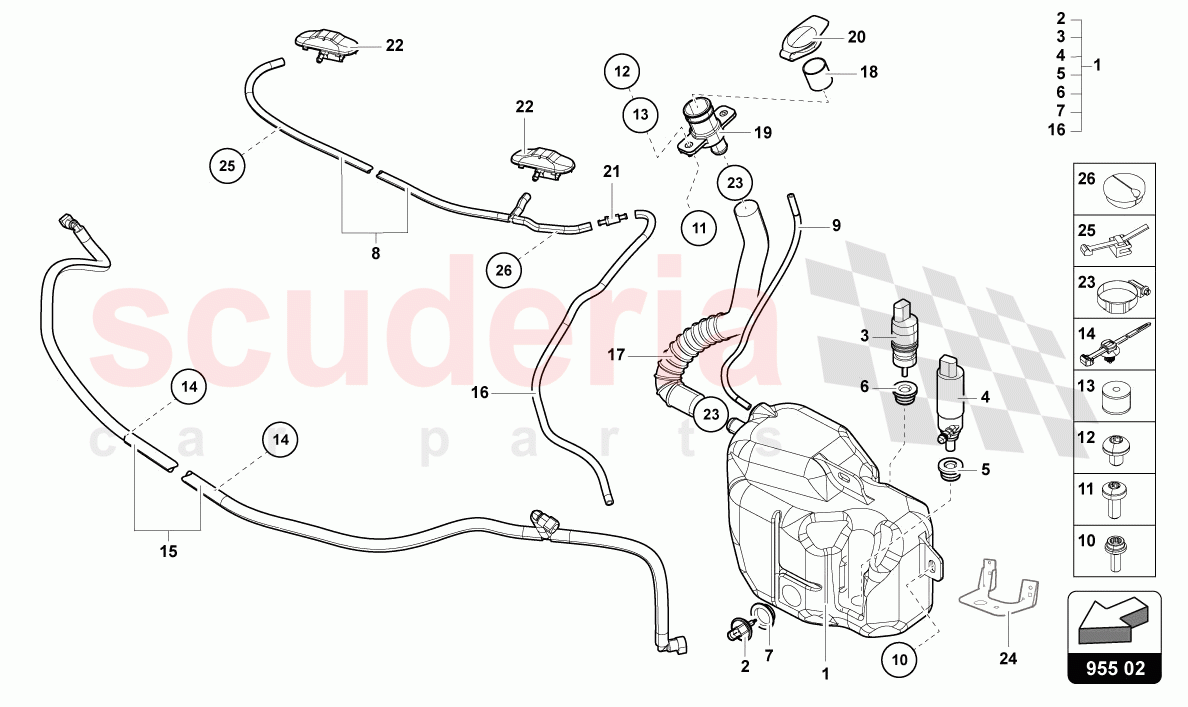

Lamborghini Aventador LP780 Ultimae - WINDSCREEN WASHER SYSTEM (955.02.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470955448E	WASH WATER RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M0919376	WATER LEVEL SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1K5955651	WINDSCREEN WASHER SYSTEM PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1J0955681	WINDSCREEN WASHER SYSTEM PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	431955465A	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8A0955465	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M0919382	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470955972C	HOSE LINE FOR WASHER WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470955197	BREATHER LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91026802	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10680302	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470863309	STOP BUFFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3D0971838K	CABLE TIES WITH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470955970	HOSE LINE FOR WASHER WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470955944	PIPE/HOSE LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8N0955485	STRAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400955459	HOLDER FOR FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400955277	END CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113955975C	VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5M0955985C	Spray Jet Front (Unheated)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400955973	HOSE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5M0971838	CABLE TIE WITH TERMINAL SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D0955754	GROMMET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	470955448E	WASH WATER RESERVOIR	470955448E WASH WATER RESERVOIR	-	1	Enquire
2	7M0919376	WATER LEVEL SWITCH	7M0919376 WATER LEVEL SWITCH	-	1	Enquire
3	1K5955651	WINDSCREEN WASHER SYSTEM PUMP	1K5955651 WINDSCREEN WASHER SYSTEM PUMP	-	1	Enquire
4	1J0955681	WINDSCREEN WASHER SYSTEM PUMP	1J0955681 WINDSCREEN WASHER SYSTEM PUMP	-	1	Enquire
5	431955465A	SEAL	431955465A SEAL	-	1	Enquire
6	8A0955465	SEAL RING	8A0955465 SEAL RING	-	1	Enquire
7	7M0919382	SEAL RING	7M0919382 SEAL RING	-	1	Enquire
8	470955972C	HOSE LINE FOR WASHER WATER	470955972C HOSE LINE FOR WASHER WATER	-	1	Enquire
9	470955197	BREATHER LINE	470955197 BREATHER LINE	-	1	Enquire
10	N91026802	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91026802 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X20	-	2	Enquire
11	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	N10405604 OVAL HEXAGON SOCKET HEAD BOLT M6X14	-	2	Enquire
12	N10680302	HEXAGON SOCKET FLAT HEAD BOLT	N10680302 HEXAGON SOCKET FLAT HEAD BOLT M6X8	-	2	Enquire
13	470863309	STOP BUFFER	470863309 STOP BUFFER	-	2	Enquire
14	3D0971838K	CABLE TIES WITH BRACKET	3D0971838K CABLE TIES WITH BRACKET	-	2	Enquire
15	470955970	HOSE LINE FOR WASHER WATER	470955970 HOSE LINE FOR WASHER WATER FRONT	-	1	Enquire
17	470955944	PIPE/HOSE LINE	470955944 PIPE/HOSE LINE	-	1	Enquire
18	8N0955485	STRAINER	8N0955485 STRAINER	-	1	Enquire
19	400955459	HOLDER FOR FILLER PIPE	400955459 HOLDER FOR FILLER PIPE	-	1	Enquire
20	400955277	END CAP	400955277 END CAP	-	1	Enquire
21	113955975C	VALVE	113955975C VALVE	-	1	Enquire
22	5M0955985C	Spray Jet Front (Unheated)	5M0955985C Spray Jet Front (Unheated)	-	2	Enquire
23	400955973	HOSE CLAMP	400955973 HOSE CLAMP	-	2	Enquire
25	5M0971838	CABLE TIE WITH TERMINAL SOCKET	5M0971838 CABLE TIE WITH TERMINAL SOCKET 4 -6X200MM	-	3	Enquire
26	8D0955754	GROMMET	8D0955754 GROMMET	-	2	Enquire
