Lamborghini Aventador LP780 Ultimae - ELECTRICS (907.10.00)

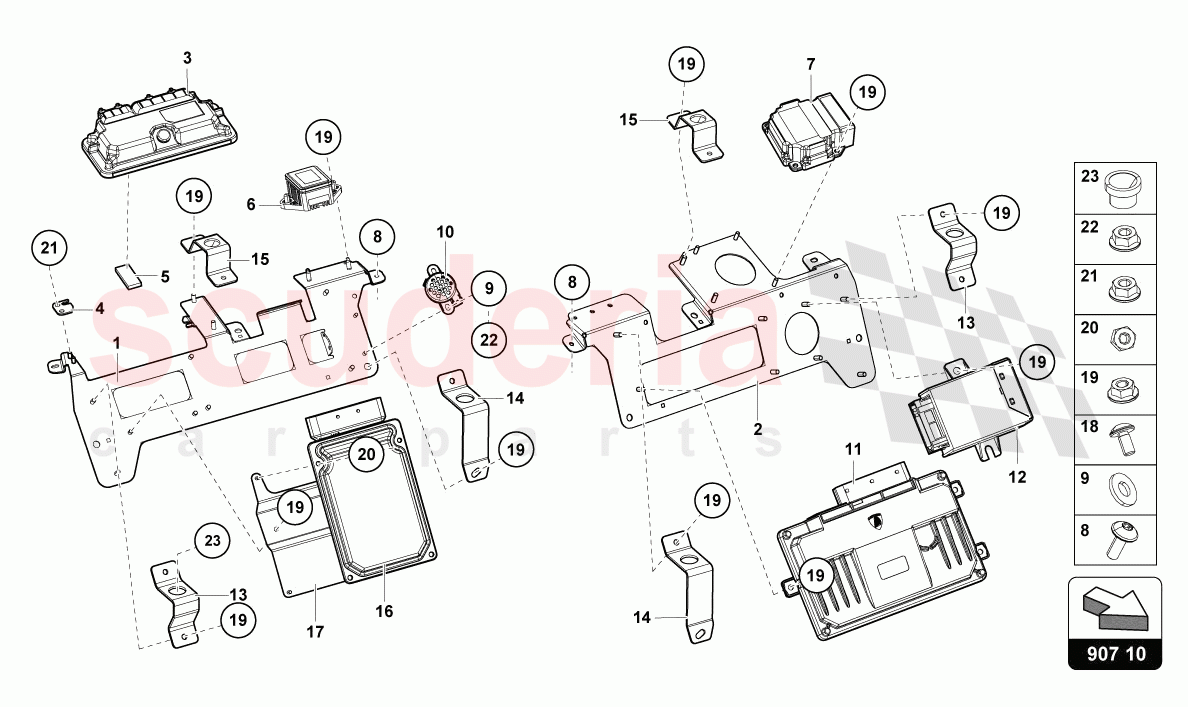

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470907354G	RETAINER FOR CONTROL UNITS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470907372E	RETAINER FOR CONTROL UNITS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470907376E	CONTROL UNIT FOR FRONT AXLE INCREASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470907713	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	893201365A	UNDERLAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8R0907637B	YAW RATE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470907721F	CONTROL UNIT FOR EMERGENCY EXIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90780901	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0115478	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0919279	WARNING BUZZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470959433Q	CONTROL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470907273A	CONTROL UNIT FOR TYRE PRESSURE CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	475868741	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470868923A	ARM	Enquire	To Order
	470868924A	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470868891A	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470909554B	CONTROL UNIT FOR ELECTRONIC REGULATED DAMPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470907371	RETAINER FOR CONTROL UNIT, ELECTRONICALLY CONTROLLED DAMPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10586401	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01100412	HEXAGON NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10017307	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10017304	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L6127477	RUBBER BUSH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	470907354G	RETAINER FOR CONTROL UNITS	470907354G RETAINER FOR CONTROL UNITS	-	1	Enquire
2	470907372E	RETAINER FOR CONTROL UNITS	470907372E RETAINER FOR CONTROL UNITS	-	1	Enquire
3	470907376E	CONTROL UNIT FOR FRONT AXLE INCREASE	470907376E CONTROL UNIT FOR FRONT AXLE INCREASE	-	1	Enquire
4	470907713	ARM	470907713 ARM	-	1	Enquire
5	893201365A	UNDERLAY	893201365A UNDERLAY	-	1	Enquire
6	8R0907637B	YAW RATE SENSOR	8R0907637B YAW RATE SENSOR	-	1	Enquire
7	470907721F	CONTROL UNIT FOR EMERGENCY EXIT	470907721F CONTROL UNIT FOR EMERGENCY EXIT 'PYDOS'	-	1	Enquire
8	N90780901	OVAL HEXAGON SOCKET HEAD BOLT	N90780901 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	10	Enquire
9	N0115478	WASHER	N0115478 WASHER 6 -5X14X1,6	-	2	Enquire
10	8E0919279	WARNING BUZZER	8E0919279 WARNING BUZZER	-	1	Enquire
11	470959433Q	CONTROL UNIT	470959433Q CONTROL UNIT GFA	-	1	Enquire
12	470907273A	CONTROL UNIT FOR TYRE PRESSURE CONTROL	470907273A CONTROL UNIT FOR TYRE PRESSURE CONTROL NOT FOR THAILAND - INDIA, MEXICO, VIETNAM MARKETS	-	1	Enquire
13	475868741	ARM	475868741 ARM	-	2	Enquire
14	470868923A	ARM	470868923A ARM LEFT	-	1	Enquire
14	470868924A	ARM	470868924A ARM RIGHT	-	1	Enquire
15	470868891A	ARM	470868891A ARM	-	2	Enquire
16	470909554B	CONTROL UNIT FOR ELECTRONIC REGULATED DAMPING	470909554B CONTROL UNIT FOR ELECTRONIC REGULATED DAMPING	-	1	Enquire
17	470907371	RETAINER FOR CONTROL UNIT, ELECTRONICALLY CONTROLLED DAMPING	470907371 RETAINER FOR CONTROL UNIT, ELECTRONICALLY CONTROLLED DAMPING	-	1	Enquire
18	N10586401	OVAL HEXAGON SOCKET HEAD BOLT	N10586401 OVAL HEXAGON SOCKET HEAD BOLT M5X10	-	3	Enquire
19	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT M6	-	16	Enquire
20	N01100412	HEXAGON NUT	N01100412 HEXAGON NUT M4	-	4	Enquire
21	N10017307	HEXAGON COLLAR NUT	N10017307 HEXAGON COLLAR NUT M5	-	2	Enquire
22	N10017304	HEXAGON COLLAR NUT	N10017304 HEXAGON COLLAR NUT M5	-	2	Enquire
23	7L6127477	RUBBER BUSH	7L6127477 RUBBER BUSH	-	4	Enquire
