Name: AIRBAG UNIT
Rating: 4.1 (1 reviews)

AIRBAG UNIT of Lamborghini Lamborghini Aventador LP780 Ultimae

View All

Lamborghini Aventador LP780 Ultimae - AIRBAG UNIT (880.01.00)

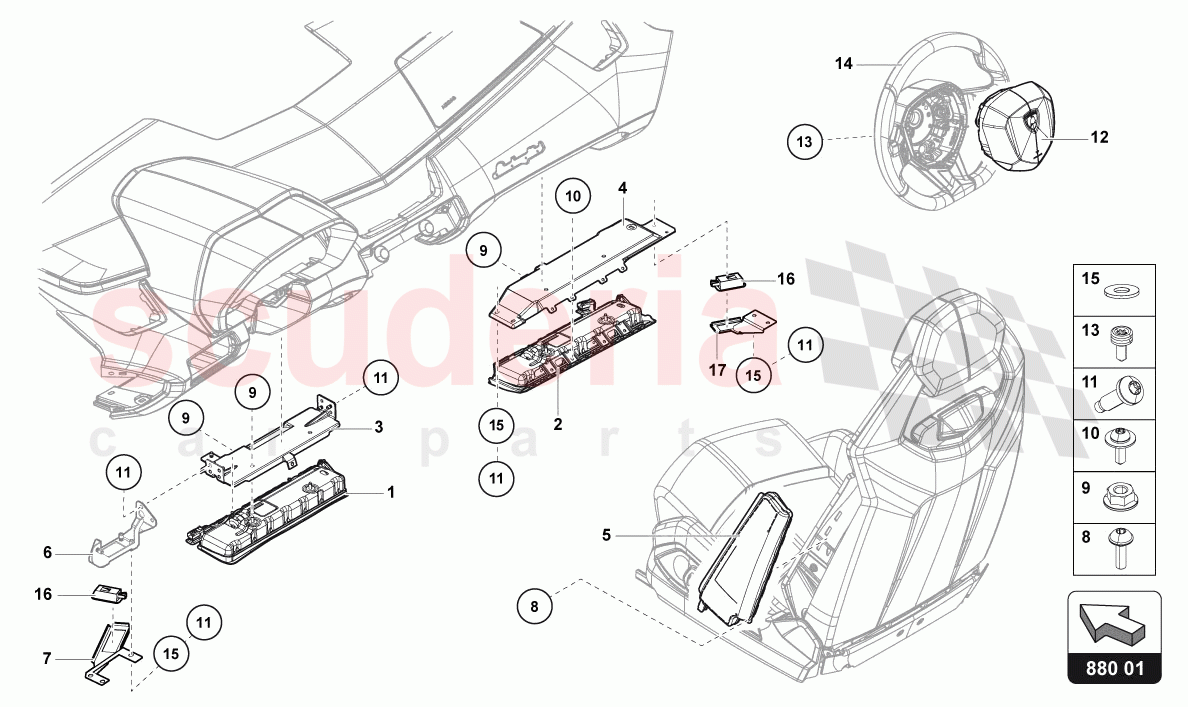

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8T0880841E	KNEE AIRBAG UNIT	$936.73	To Order

Photo	Part No	Description	Price (each)	Stock
	8T0880842E	KNEE AIRBAG UNIT	$558.31	To Order

Photo	Part No	Description	Price (each)	Stock
	471858513B	ARM	$85.09	To Order
	472858513B	ARM	$50.87	To Order
	471858513C	ARM	$77.30	To Order

Photo	Part No	Description	Price (each)	Stock
	471858514A	ARM	$66.55	To Order
	472858514B	ARM	$164.66	To Order
	472858514C	ARM	$94.24	To Order

Photo	Part No	Description	Price (each)	Stock
	470880241A	SIDE AIRBAG UNIT	$523.59	To Order
	470880242A	SIDE AIRBAG UNIT	$522.36	To Order

Photo	Part No	Description	Price (each)	Stock
	471858505	CARRIER	$26.89	To Order
	472858505	CARRIER	$54.99	To Order

Photo	Part No	Description	Price (each)	Stock
	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	$1.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	$1.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10738101	HEX SOCKET HEAD BOLT (COMBI)	$0.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10595002	ROUND HD. SCREW	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	470880201F	AIRBAG UNIT FOR STEERING WHEEL	$2,822.56	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0419204B	SOCKET HEAD BOLT	$3.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT000778	WASHER	$0.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8J0947409B	LED LIGHT	$17.89	To Order

Photo	Part No	Description	Price (each)	Stock
	471858506	BRACKET	$40.96	To Order
	472858506	BRACKET	$66.75	To Order

View All

Diagram Tap to enlarge

Airbag Unit

Lamborghini Aventador LP780 Ultimae

Illustration Number: 880.01.00

Lamborghini Aventador LP780 Ultimae - AIRBAG UNIT (880.01.00)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	8T0880841E	KNEE AIRBAG UNIT	8T0880841E KNEE AIRBAG UNIT DRIVER SIDE - ONLY FOR NAR AND CHINA	$936.73 MSRP: ~~1,435.00~~ (34.7% off)	1
2	8T0880842E	KNEE AIRBAG UNIT	8T0880842E KNEE AIRBAG UNIT PASSENGER SIDE - ONLY FOR NAR AND CHINA	$558.31	1
3	471858513B	ARM	471858513B ARM WITH KNEE AB - ONLY FOR NAR AND CHINA-LEFT LHD	$85.09	1
3	472858513B	ARM	472858513B ARM RIGHT RHD	$50.87	1
3	471858513C	ARM	471858513C ARM WITHOUT KNEE AB - NOT FOR CHINA-LEFT LHD	$77.30	1
4	471858514A	ARM	471858514A ARM LHD	$66.55	1
4	472858514B	ARM	472858514B ARM WITH KNEE AIRBAG-LEFT RHD	$164.66	1
4	472858514C	ARM	472858514C ARM WITHOUT KNEE AIRBAG-LEFT RHD	$94.24	1
5	470880241A	SIDE AIRBAG UNIT	470880241A SIDE AIRBAG UNIT LEFT	$523.59	1
5	470880242A	SIDE AIRBAG UNIT	470880242A SIDE AIRBAG UNIT RIGHT	$522.36	1
7	471858505	CARRIER	471858505 CARRIER LHD	$26.89	1
7	472858505	CARRIER	472858505 CARRIER RHD	$54.99	1
8	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD M6X20 IN STOCK	$1.68	2
9	N01508210	HEXAGON COLLAR NUT IN STOCK	N01508210 HEXAGON COLLAR NUT M6 IN STOCK	$1.96	6
10	N10738101	HEX SOCKET HEAD BOLT (COMBI) IN STOCK	N10738101 HEX SOCKET HEAD BOLT (COMBI) M5X16 IN STOCK	$0.88	4
11	N10595002	ROUND HD. SCREW IN STOCK	N10595002 ROUND HD. SCREW M5X18 IN STOCK	$1.47	10
12	470880201F	AIRBAG UNIT FOR STEERING WHEEL	470880201F AIRBAG UNIT FOR STEERING WHEEL	$2,822.56	1
13	4E0419204B	SOCKET HEAD BOLT IN STOCK	4E0419204B SOCKET HEAD BOLT M6X14(T30) IN STOCK	$3.45	2
15	WHT000778	WASHER IN STOCK	WHT000778 WASHER 30X36X1 IN STOCK	$0.64	4
16	8J0947409B	LED LIGHT	8J0947409B LED LIGHT	$17.89	1
17	471858506	BRACKET	471858506 BRACKET LHD	$40.96	1
17	472858506	BRACKET	472858506 BRACKET RHD	$66.75	1
