Instrument Panel

Lamborghini Aventador LP780 Ultimae

Illustration Number: 857.02.00

Find Your Part

Lamborghini Aventador LP780 Ultimae - INSTRUMENT PANEL (857.02.00)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
471857922BC STOWAGE COMPARTMENT $4,354.85 To Order
471857922BD STOWAGE COMPARTMENT Enquire To Order
471857922BH STOWAGE COMPARTMENT Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
471857226B TRIM STRIP FOR DASH PANEL, FOIL SEALED $79.86 To Order
472857226B TRIM STRIP FOR DASH PANEL, FOIL SEALED $79.86 To Order
Photo Part No Description Price (each) Stock
5K0919234A CONTROL LAMP FOR DEACT- IVATION OF FRONT PASSENGER AIRBAG $41.54 To Order
Photo Part No Description Price (each) Stock
400853886 LAMBORGHINI EMBLEM $454.29 To Order
470853886A LAMBORGHINI EMBLEM $383.07 To Order
Photo Part No Description Price (each) Stock
471857222A TRIM STRIP FOR DASH PANEL, FOIL SEALED $79.86 To Order
472857222A TRIM STRIP FOR DASH PANEL, FOIL SEALED $79.86 To Order
Photo Part No Description Price (each) Stock
470819903 DEFROSTER NOZZLE FOR WINDSCREEN $408.16 To Order
Photo Part No Description Price (each) Stock
8K0909131D IGNITION/STARTER SWITCH $118.56 To Order
Photo Part No Description Price (each) Stock
8R1905219 TRIM $20.44 To Order
8R2905219 TRIM $20.44 To Order
Photo Part No Description Price (each) Stock
470857087A SECURING BRACKET $52.74 To Order
472857087A SECURING BRACKET $52.74 To Order
Photo Part No Description Price (each) Stock
N90777702 SPEED NUT $1.16 IN STOCK
Photo Part No Description Price (each) Stock
N10406602 OVAL HEXAGON SOCKET HEAD BOLT $0.33 To Order
Photo Part No Description Price (each) Stock
4T0853139 CLIP $1.43 IN STOCK
Photo Part No Description Price (each) Stock
N10586401 OVAL HEXAGON SOCKET HEAD BOLT $0.95 IN STOCK
Photo Part No Description Price (each) Stock
N90981701 SPEED NUT $0.88 IN STOCK
Photo Part No Description Price (each) Stock
N10738101 HEX SOCKET HEAD BOLT (COMBI) $0.88 IN STOCK
Photo Part No Description Price (each) Stock
N90475903 SPEED NUT $1.19 IN STOCK
Photo Part No Description Price (each) Stock
N01166623 WASHER $1.23 IN STOCK
View All

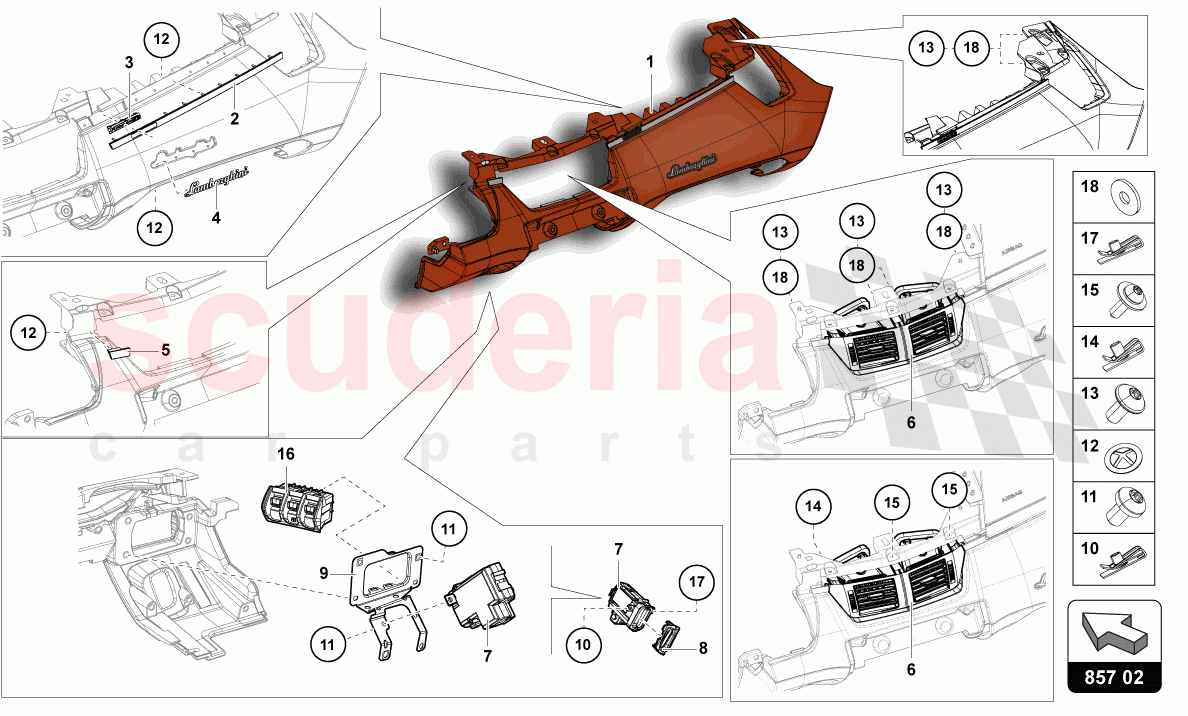

INSTRUMENT PANEL of Lamborghini Lamborghini Aventador LP780 Ultimae Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 471857922BC
STOWAGE COMPARTMENT
ALCANTARA LASER ENGRAVED - WITH GLOVEBOX COMPARTMENT - SUPPLY VIN- LHD 		$4,354.85 1
1 471857922BD
STOWAGE COMPARTMENT
ALCANTARA LASER ENGRAVED - WITHOUT GLOVEBOX COMPARTMENT - SUPPLY VIN- LHD 		- 1 Enquire
1 471857922BH
STOWAGE COMPARTMENT
ALCANTARA - WITH GLOVEBOX COMPARTMENT - SUPPLY VIN- LHD 		- 1 Enquire
1 472857921BA
STOWAGE COMPARTMENT
ALCANTARA LASER ENGRAVED - WITH GLOVEBOX COMPARTMENT - SUPPLY VIN- RHD 		$4,576.61 1
1 472857921BB
STOWAGE COMPARTMENT
ALCANTARA LASER ENGRAVED - WITHOUT GLOVEBOX COMPARTMENT - SUPPLY VIN- RHD 		- 1 Enquire
1 472857921BE
STOWAGE COMPARTMENT
ALCANTARA - WITH GLOVEBOX COMPARTMENT - SUPPLY VIN- RHD 		- 1 Enquire
2 471857226B
TRIM STRIP FOR DASH PANEL, FOIL SEALED
LHD 		$79.86 1
2 472857226B
TRIM STRIP FOR DASH PANEL, FOIL SEALED
RHD 		$79.86 1
3 5K0919234A
CONTROL LAMP FOR DEACT- IVATION OF FRONT PASSENGER AIRBAG 		$41.54 1
4 400853886
LAMBORGHINI EMBLEM 		$454.29 1
4 470853886A
LAMBORGHINI EMBLEM
SHINY BLACK 		$383.07 1
5 471857222A
TRIM STRIP FOR DASH PANEL, FOIL SEALED
LHD 		$79.86 1
5 472857222A
TRIM STRIP FOR DASH PANEL, FOIL SEALED
RHD 		$79.86 1
6 470819903
DEFROSTER NOZZLE FOR WINDSCREEN 		$408.16 1
7 8K0909131D
IGNITION/STARTER SWITCH 		$118.56 1
8 8R1905219
TRIM
LHD 		$20.44 1
8 8R2905219
TRIM
RHD 		$20.44 1
9 470857087A
SECURING BRACKET
LHD 		$52.74 1
9 472857087A
SECURING BRACKET
RHD 		$52.74 1
10 N90777702
SPEED NUT
M5X13.6X11.5
IN STOCK 		$1.16 (84% off) 2
11 N10406602
OVAL HEXAGON SOCKET HEAD BOLT
M5X8 		$0.33 2
12 4T0853139
CLIP
IN STOCK 		$1.43 (80.1% off) 12
13 N10586401
OVAL HEXAGON SOCKET HEAD BOLT
M5X10
IN STOCK 		$0.95 2
14 N90981701
SPEED NUT
M5X21.0X15.3
IN STOCK 		$0.88 (87.9% off) 3
15 N10738101
HEX SOCKET HEAD BOLT (COMBI)
M5X16
IN STOCK 		$0.88 3
17 N90475903
SPEED NUT
M5X13 -6X11,5
IN STOCK 		$1.19 (83.4% off) 1
18 N01166623
WASHER
6 -4X18X1,6
IN STOCK 		$1.23 8
