WING PROTECTOR REAR of Lamborghini Lamborghini Aventador LP780 Ultimae

View All

Lamborghini Aventador LP780 Ultimae - WING PROTECTOR REAR (821.02.00)

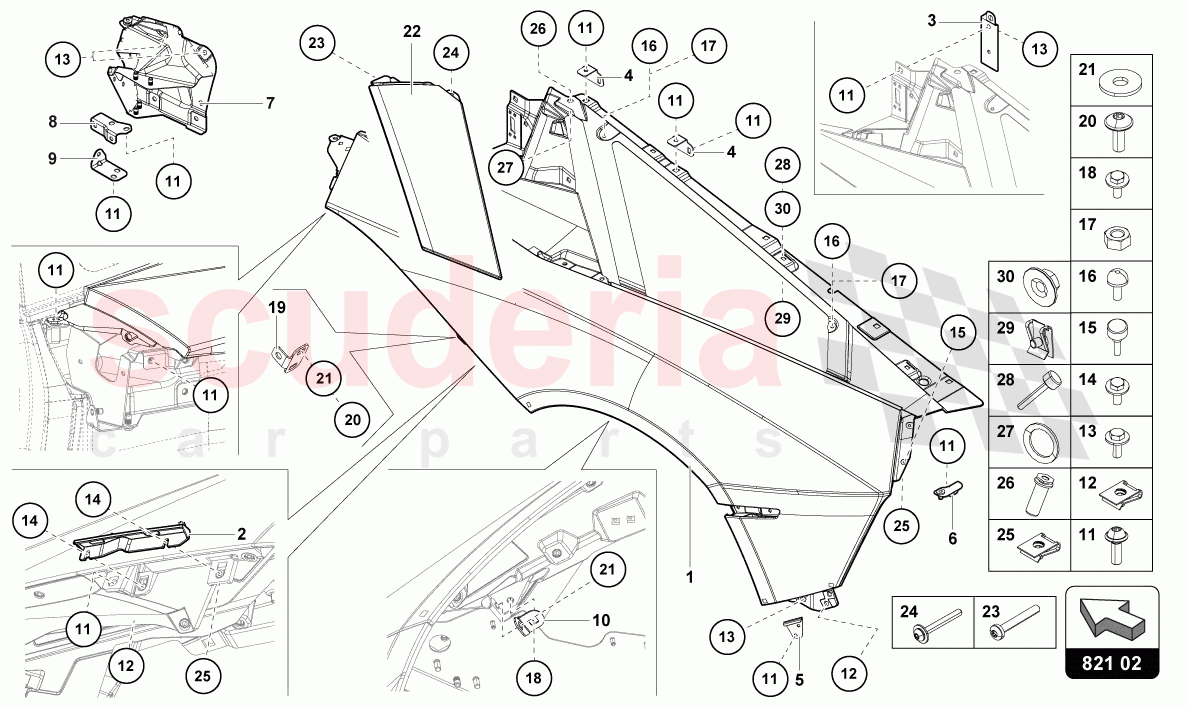

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470854959AC	LINING FOR FENDER	Enquire	To Order
	470854959ACGRU	LINING FOR FENDER	Enquire	To Order
	470854960AD	LINING FOR FENDER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	470853795A	SECURING BRACKET	Enquire	To Order
	470853796A	SECURING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470853587B	MUD WING COMPENSATION PLATE	Enquire	To Order
	470853588B	MUD WING COMPENSATION PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470853945A	MUD WING COMPENSATION PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470853231	MUD WING COMPENSATION PLATE	Enquire	To Order
	470853232	MUD WING COMPENSATION PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470821141	MUD WING COMPENSATION PLATE	Enquire	To Order
	470821142	MUD WING COMPENSATION PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470857289A	MUD WING COMPENSATION PLATE	Enquire	To Order
	470857290A	MUD WING COMPENSATION PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470857371B	CARRIER	Enquire	To Order
	470857372B	CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470857155B	CARRIER	Enquire	To Order
	470857156B	CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470813755C	MUD WING COMPENSATION PLATE	Enquire	To Order
	470813756C	MUD WING COMPENSATION PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90688703	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10009507	HEXAGON HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90898101	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470115627	STOP BUFFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	410853809	MOUNTING BUFFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01100518	HEXAGON NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10661002	HEX SOCKET OVAL HEAD COLLARED M6 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470853647B	BRACKET	Enquire	To Order
	470853648B	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90780903	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01166623	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470854965A	LINING FOR FENDER	Enquire	To Order
	470854966A	LINING FOR FENDER	Enquire	To Order
	475854965B	LINING FOR FENDER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N10405702	HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10483102	HEX SOCKET HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91195701	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8H0806221	COMPENSATING PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT006377	CONICAL SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470907449	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90412601	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90434905	HEX. NUT WITH WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	470854959AC	LINING FOR FENDER	470854959AC LINING FOR FENDER LEFT REAR	-	1	Enquire
1	470854959ACGRU	LINING FOR FENDER	470854959ACGRU LINING FOR FENDER PRIMER	-	1	Enquire
1	470854960AD	LINING FOR FENDER	470854960AD LINING FOR FENDER RIGHT REAR	-	1	Enquire
1	470854960ADGRU	LINING FOR FENDER	470854960ADGRU LINING FOR FENDER PRIMER	-	1	Enquire
2	470853795A	SECURING BRACKET	470853795A SECURING BRACKET LEFT	-	1	Enquire
2	470853796A	SECURING BRACKET	470853796A SECURING BRACKET RIGHT	-	1	Enquire
3	470853587B	MUD WING COMPENSATION PLATE	470853587B MUD WING COMPENSATION PLATE LEFT	-	1	Enquire
3	470853588B	MUD WING COMPENSATION PLATE	470853588B MUD WING COMPENSATION PLATE RIGHT	-	1	Enquire
4	470853945A	MUD WING COMPENSATION PLATE	470853945A MUD WING COMPENSATION PLATE	-	6	Enquire
5	470853231	MUD WING COMPENSATION PLATE	470853231 MUD WING COMPENSATION PLATE LEFT	-	1	Enquire
5	470853232	MUD WING COMPENSATION PLATE	470853232 MUD WING COMPENSATION PLATE RIGHT	-	1	Enquire
6	470821141	MUD WING COMPENSATION PLATE	470821141 MUD WING COMPENSATION PLATE LEFT	-	1	Enquire
6	470821142	MUD WING COMPENSATION PLATE	470821142 MUD WING COMPENSATION PLATE RIGHT	-	1	Enquire
7	470857289A	MUD WING COMPENSATION PLATE	470857289A MUD WING COMPENSATION PLATE LEFT	-	1	Enquire
7	470857290A	MUD WING COMPENSATION PLATE	470857290A MUD WING COMPENSATION PLATE RIGHT	-	1	Enquire
8	470857371B	CARRIER	470857371B CARRIER LEFT	-	1	Enquire
8	470857372B	CARRIER	470857372B CARRIER RIGHT	-	1	Enquire
9	470857155B	CARRIER	470857155B CARRIER LEFT	-	1	Enquire
9	470857156B	CARRIER	470857156B CARRIER RIGHT	-	1	Enquire
10	470813755C	MUD WING COMPENSATION PLATE	470813755C MUD WING COMPENSATION PLATE LEFT	-	1	Enquire
10	470813756C	MUD WING COMPENSATION PLATE	470813756C MUD WING COMPENSATION PLATE RIGHT	-	1	Enquire
11	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M6X18	-	36	Enquire
12	N90688703	SPEED NUT	N90688703 SPEED NUT M6X24X16	-	6	Enquire
13	N10009507	HEXAGON HEAD BOLT (COMBI)	N10009507 HEXAGON HEAD BOLT (COMBI) M6X18	-	4	Enquire
14	N90898101	OVAL HEXAGON SOCKET HEAD BOLT	N90898101 OVAL HEXAGON SOCKET HEAD BOLT M6X14	-	4	Enquire
15	470115627	STOP BUFFER	470115627 STOP BUFFER	-	4	Enquire
16	410853809	MOUNTING BUFFER	410853809 MOUNTING BUFFER	-	4	Enquire
17	N01100518	HEXAGON NUT	N01100518 HEXAGON NUT M5	-	4	Enquire
18	N10661002	HEX SOCKET OVAL HEAD COLLARED M6 X 20	N10661002 HEX SOCKET OVAL HEAD COLLARED M6 X 20 M6X20	-	4	Enquire
19	470853647B	BRACKET	470853647B BRACKET LEFT	-	1	Enquire
19	470853648B	BRACKET	470853648B BRACKET RIGHT	-	1	Enquire
20	N90780903	OVAL HEXAGON SOCKET HEAD BOLT	N90780903 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	4	Enquire
21	N01166623	WASHER	N01166623 WASHER 6 -4X18X1,6	-	4	Enquire
22	470854965A	LINING FOR FENDER	470854965A LINING FOR FENDER LEFT REAR	-	1	Enquire
22	470854966A	LINING FOR FENDER	470854966A LINING FOR FENDER RIGHT REAR	-	1	Enquire
22	475854965B	LINING FOR FENDER	475854965B LINING FOR FENDER LEFT REAR	-	1	Enquire
22	475854966B	LINING FOR FENDER	475854966B LINING FOR FENDER RIGHT REAR	-	1	Enquire
23	N10405702	HEXAGON SOCKET HEAD BOLT	N10405702 HEXAGON SOCKET HEAD BOLT M6X45	-	2	Enquire
24	N10483102	HEX SOCKET HEAD BOLT (COMBI)	N10483102 HEX SOCKET HEAD BOLT (COMBI) M6X50	-	2	Enquire
25	N91195701	SPEED NUT	N91195701 SPEED NUT M6X22X15	-	8	Enquire
26	8H0806221	COMPENSATING PIECE	8H0806221 COMPENSATING PIECE	-	2	Enquire
27	WHT006377	CONICAL SPRING	WHT006377 CONICAL SPRING	-	2	Enquire
28	470907449	PIN	470907449 PIN	-	4	Enquire
29	N90412601	SPEED NUT	N90412601 SPEED NUT M5X19 -9X15	-	4	Enquire
30	N90434905	HEX. NUT WITH WASHER	N90434905 HEX. NUT WITH WASHER M5	-	4	Enquire

WING FRONT (821.01.00)

WING PROTECTOR REAR (821.02.00)

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout

Wing Protector Rear

Lamborghini Aventador LP780 Ultimae

Illustration Number: 821.02.00

Lamborghini Aventador LP780 Ultimae - WING PROTECTOR REAR (821.02.00)
