Find Your Part

BUMPER, COMPLETE REAR of Lamborghini Lamborghini Aventador LP780 Ultimae

View All

Lamborghini Aventador LP780 Ultimae - BUMPER, COMPLETE REAR (807.24.00)

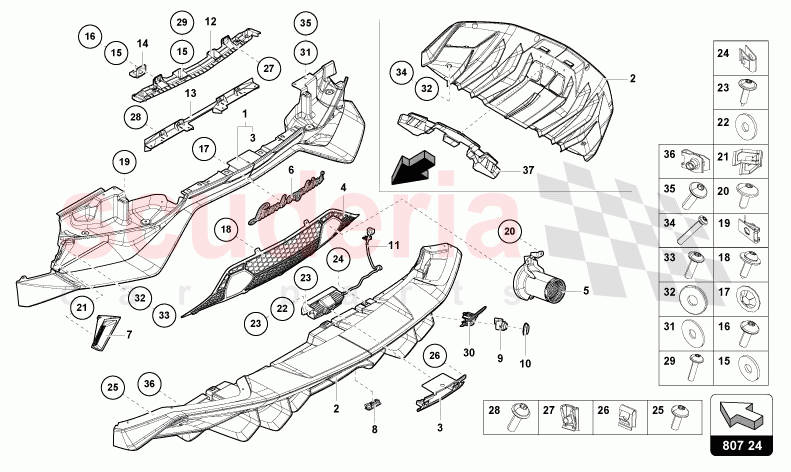

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470807105	BUMPER	Enquire	To Order
	470807105B	BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470807107	AIR FUNNEL	Enquire	To Order
	470807107A	AIR FUNNEL	Enquire	To Order
	470807107B	AIR FUNNEL	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	470807684G	GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470251237F	EXHAUST TAIL PIPE	Enquire	To Order
	470251237J	EXHAUST TAIL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470853742	LETTERING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470807245A	COVER	Enquire	To Order
	470807246A	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	420943021	LICENCE PLATE LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5Q0919275CGRU	SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5Q0919133	SEAL RING	Enquire	To Order
	5Q09191339B9	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470980556A	CAMERA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470853038A	CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470807201G	ARM	Enquire	To Order
	470807201J	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470807596C	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01166623	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10632003	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0853139	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10738101	HEX SOCKET HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90688703	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91042302	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1J0858137B	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90698605	HEXAGON SOCKET HEAD PANEL BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90170803	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10632004	HEX SOCKET OVAL HEAD COLLARED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0154487	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91195701	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10632102	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470919289C	SENSOR BRACKET	Enquire	To Order
	470919290C	SENSOR BRACKET	Enquire	To Order
	470919329C	SENSOR BRACKET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N0116945	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000909	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT009092	HEXAGON SOCKET HEAD BOLT, COUNTERSUNK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT009090	HEX SOCKET HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10661002	HEX SOCKET OVAL HEAD COLLARED M6 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90327506	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470807869E	DAMPING ELEMENT	Enquire	To Order
	470807869E	DAMPING ELEMENT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	470807105	BUMPER	470807105 BUMPER WITH RVC - PRIMER-REAR	-	1	Enquire
1	470807105B	BUMPER	470807105B BUMPER WITHOUT RVC - PRIMER-REAR	-	1	Enquire
2	470807107	AIR FUNNEL	470807107 AIR FUNNEL W/O PARKING SENSORS - CARBON MATT-REAR	-	1	Enquire
2	470807107A	AIR FUNNEL	470807107A AIR FUNNEL W/O PARKING SENSORS - CARBON SHINY-REAR	-	1	Enquire
2	470807107B	AIR FUNNEL	470807107B AIR FUNNEL WITH PARKING SENSOSRS - CARBON MATT-REAR	-	1	Enquire
2	470807107C	AIR FUNNEL	470807107C AIR FUNNEL WITH PARKING SENSOSRS - CARBON SHINY-REAR	-	1	Enquire
2	470807568C	REAR DIFFUSER	470807568C REAR DIFFUSER CARBON RAW MATERIAL WITH PARKING SENSOR - ONLY FOR LIVERY PACK	-	1	Enquire
4	470807684G	GRILLE	470807684G GRILLE	-	1	Enquire
5	470251237F	EXHAUST TAIL PIPE	470251237F EXHAUST TAIL PIPE STD	-	2	Enquire
5	470251237J	EXHAUST TAIL PIPE	470251237J EXHAUST TAIL PIPE OPT - MATT BLACK	-	2	Enquire
6	470853742	LETTERING	470853742 LETTERING 'LAMBORGHINI'	-	1	Enquire
7	470807245A	COVER	470807245A COVER LEFT	-	1	Enquire
7	470807246A	COVER	470807246A COVER RIGHT	-	1	Enquire
8	420943021	LICENCE PLATE LIGHT	420943021 LICENCE PLATE LIGHT	-	2	Enquire
9	5Q0919275CGRU	SENSOR	5Q0919275CGRU SENSOR WITHOUT PARKING PILOT - FRONT AND REAR PARKING SENSORS-FRONT	-	4	Enquire
10	5Q0919133	SEAL RING	5Q0919133 SEAL RING	-	4	Enquire
10	5Q09191339B9	SEAL RING	5Q09191339B9 SEAL RING SATIN BLACK	-	4	Enquire
11	470980556A	CAMERA	470980556A CAMERA REAR	-	1	Enquire
12	470853038A	CARRIER	470853038A CARRIER	-	1	Enquire
13	470807201G	ARM	470807201G ARM	-	1	Enquire
13	470807201J	ARM	470807201J ARM	-	1	Enquire
14	470807596C	ARM	470807596C ARM	-	2	Enquire
15	N01166623	WASHER	N01166623 WASHER 6 -4X18X1,6	-	10	Enquire
16	N10632003	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	N10632003 OVAL SOCKET HEAD BOLT WITH HEX DRIVE	-	4	Enquire
17	4T0853139	CLIP	4T0853139 CLIP	-	2	Enquire
18	N10738101	HEX SOCKET HEAD BOLT (COMBI)	N10738101 HEX SOCKET HEAD BOLT (COMBI) M5X16	-	7	Enquire
19	N90688703	SPEED NUT	N90688703 SPEED NUT M6X24X16	-	8	Enquire
20	N91042302	OVAL HEXAGON SOCKET HEAD BOLT	N91042302 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	6	Enquire
21	1J0858137B	CLIP	1J0858137B CLIP	-	4	Enquire
22	WHT000778	WASHER	WHT000778 WASHER 30X36X1	-	2	Enquire
23	N90698605	HEXAGON SOCKET HEAD PANEL BOLT	N90698605 HEXAGON SOCKET HEAD PANEL BOLT ST4 -2X16	-	4	Enquire
24	N90170803	SPEED NUT	N90170803 SPEED NUT 4 -2X13X11	-	4	Enquire
25	N10632004	HEX SOCKET OVAL HEAD COLLARED	N10632004 HEX SOCKET OVAL HEAD COLLARED	-	8	Enquire
26	N0154487	SPEED NUT	N0154487 SPEED NUT 4 -2X16,3X11	-	4	Enquire
27	N91195701	SPEED NUT	N91195701 SPEED NUT M6X22X15	-	2	Enquire
28	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M6X18	-	4	Enquire
29	N10632102	OVAL HEXAGON SOCKET HEAD BOLT	N10632102 OVAL HEXAGON SOCKET HEAD BOLT M6X25	-	6	Enquire
30	470919289C	SENSOR BRACKET	470919289C SENSOR BRACKET CENTER - LEFT	-	1	Enquire
30	470919290C	SENSOR BRACKET	470919290C SENSOR BRACKET CENTER - RIGHT	-	1	Enquire
30	470919329C	SENSOR BRACKET	470919329C SENSOR BRACKET LEFT	-	1	Enquire
30	470919330C	SENSOR BRACKET	470919330C SENSOR BRACKET RIGHT	-	1	Enquire
31	N0116945	WASHER	N0116945 WASHER 7X22	-	4	Enquire
32	WHT000909	WASHER	WHT000909 WASHER NERINOX-6 -4X18X1,6	-	6	Enquire
33	WHT009092	HEXAGON SOCKET HEAD BOLT, COUNTERSUNK	WHT009092 HEXAGON SOCKET HEAD BOLT, COUNTERSUNK NERINOX	-	4	Enquire
34	WHT009090	HEX SOCKET HEAD BOLT (COMBI)	WHT009090 HEX SOCKET HEAD BOLT (COMBI) NERINOX	-	4	Enquire
35	N10661002	HEX SOCKET OVAL HEAD COLLARED M6 X 20	N10661002 HEX SOCKET OVAL HEAD COLLARED M6 X 20 M6X20	-	4	Enquire
36	N90327506	SPEED NUT	N90327506 SPEED NUT M6X23 -5X14,2	-	2	Enquire
37	470807869E	DAMPING ELEMENT	470807869E DAMPING ELEMENT	-	1	Enquire
37	470807869E	DAMPING ELEMENT	470807869E DAMPING ELEMENT ONLY FOR CHINA MARKET	-	1	Enquire
