AXLE SHAFT REAR of Lamborghini Lamborghini Aventador LP780 Ultimae

View All

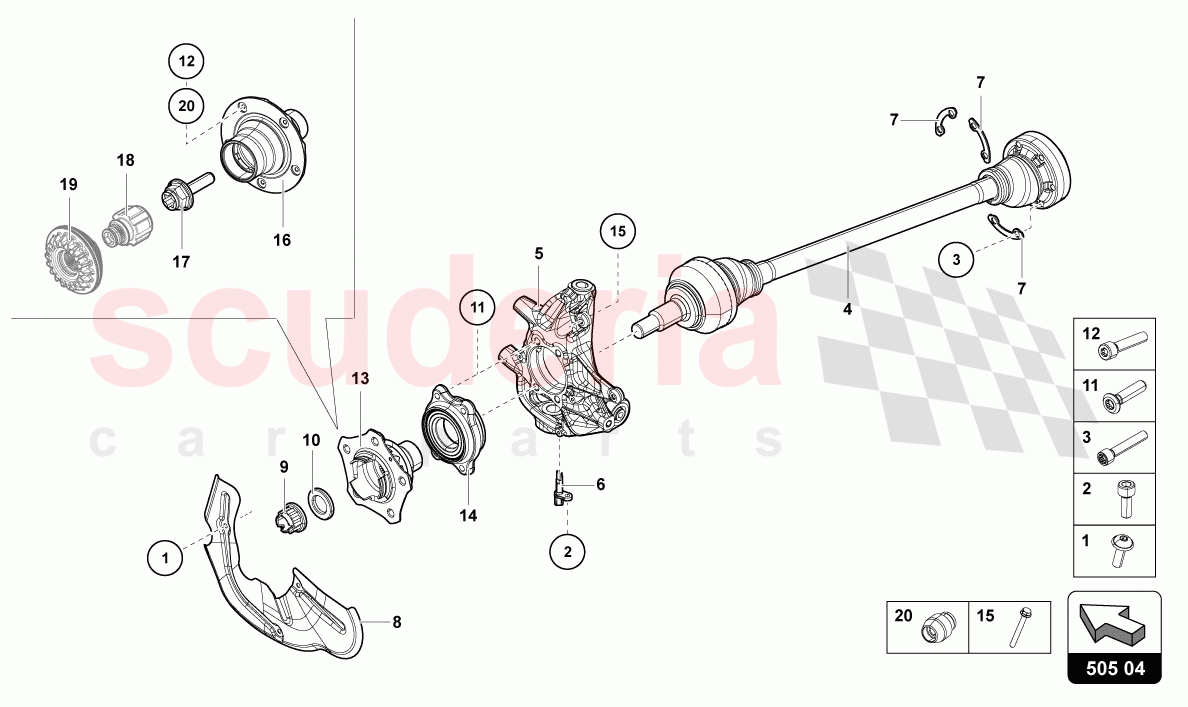

Lamborghini Aventador LP780 Ultimae - AXLE SHAFT REAR (505.04.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01474011	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10667901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470501203N	DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS	Enquire	To Order
	470501203P	DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS	Enquire	To Order
	470501204N	DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	470505433H	WHEEL BEARING HOUSING	Enquire	To Order
	470505434H	WHEEL BEARING HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0927803F	SPEED SENSOR	Enquire	To Order
	4E0927804F	SPEED SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L0407357B	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470615611D	COVER PLATE FOR BRAKE DISC	Enquire	To Order
	470615612D	COVER PLATE FOR BRAKE DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT006779	12 POINT SOCKET SHOULDERED NUT SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400501226	SPACER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000237A	TRIPLE SQUARE BOLT M1 2X 1.5 X 45	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10620901	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470501652B	WHEEL HUB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0407625F	DOUBLE (ANGLED) BALL BEARING WITH FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91105601	HEX COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470501652E	WHEEL HUB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007467	SHOULDERED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470615315	FOLLOWER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	N10714801 OVAL HEXAGON SOCKET HEAD BOLT M6X18	-	6	Enquire
2	N01474011	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	N01474011 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD M6X16	-	2	Enquire
3	N10667901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10667901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10X55	-	12	Enquire
4	470501203N	DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS	470501203N DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS STANDARD BOLTS-LEFT REAR	-	1	Enquire
4	470501203P	DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS	470501203P DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS CENTERLOCK-LEFT REAR	-	1	Enquire
4	470501204N	DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS	470501204N DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS STANDARD BOLTS-RIGHT REAR	-	1	Enquire
4	470501204P	DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS	470501204P DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS CENTERLOCK-RIGHT REAR	-	1	Enquire
5	470505433H	WHEEL BEARING HOUSING	470505433H WHEEL BEARING HOUSING LEFT REAR	-	1	Enquire
5	470505434H	WHEEL BEARING HOUSING	470505434H WHEEL BEARING HOUSING RIGHT REAR	-	1	Enquire
6	4E0927803F	SPEED SENSOR	4E0927803F SPEED SENSOR LEFT	-	1	Enquire
6	4E0927804F	SPEED SENSOR	4E0927804F SPEED SENSOR RIGHT	-	1	Enquire
7	7L0407357B	SPACER	7L0407357B SPACER	-	6	Enquire
8	470615611D	COVER PLATE FOR BRAKE DISC	470615611D COVER PLATE FOR BRAKE DISC LEFT	-	1	Enquire
8	470615612D	COVER PLATE FOR BRAKE DISC	470615612D COVER PLATE FOR BRAKE DISC RIGHT	-	1	Enquire
9	WHT006779	12 POINT SOCKET SHOULDERED NUT SELF-LOCKING	WHT006779 12 POINT SOCKET SHOULDERED NUT SELF-LOCKING M24X1 -5	-	2	Enquire
10	400501226	SPACER RING	400501226 SPACER RING	-	2	Enquire
11	WHT000237A	TRIPLE SQUARE BOLT M1 2X 1.5 X 45	WHT000237A TRIPLE SQUARE BOLT M1 2X 1.5 X 45 M12X1 -5X45	-	8	Enquire
12	N10620901	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	N10620901 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD M6X30	-	10	Enquire
13	470501652B	WHEEL HUB	470501652B WHEEL HUB STANDARD BOLTS	-	2	Enquire
14	4E0407625F	DOUBLE (ANGLED) BALL BEARING WITH FLANGE	4E0407625F DOUBLE (ANGLED) BALL BEARING WITH FLANGE BALL:92MM	-	2	Enquire
15	N91105601	HEX COLLARED BOLT	N91105601 HEX COLLARED BOLT M10X85	-	2	Enquire
16	470501652E	WHEEL HUB	470501652E WHEEL HUB LOCKABLE WHEEL - RED/ BLACK	-	2	Enquire
17	WHT007467	SHOULDERED BOLT	WHT007467 SHOULDERED BOLT M16X1 -5X72	-	4	Enquire
20	470615315	FOLLOWER	470615315 FOLLOWER	-	4	Enquire

SUSPENSION REAR (505.03.00)

AXLE SHAFT REAR (505.04.00)
