Name: COOLING SYSTEM
Rating: 4.4 (1 reviews)

COOLING SYSTEM of Lamborghini Lamborghini Aventador LP780 Ultimae

View All

Lamborghini Aventador LP780 Ultimae - COOLING SYSTEM (121.05.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470121445A	COOLANT HOSE	$380.39	To Order

Photo	Part No	Description	Price (each)	Stock
	470121372B	VENT HOSE	$99.46	To Order

Photo	Part No	Description	Price (each)	Stock
	470121124E	COOLANT HOSE	$224.47	To Order

Photo	Part No	Description	Price (each)	Stock
	470121073E	COOLANT HOSE	$276.21	To Order

Photo	Part No	Description	Price (each)	Stock
	470121059E	COOLANT HOSE	$286.30	To Order

Photo	Part No	Description	Price (each)	Stock
	N90686901	SPRING BAND CLAMP	$0.94	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90686701	SPRING BAND CLAMP	$1.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N0206026	CLAMP	$1.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N0206473	CLAMP	$6.06	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0971838	CABLE TIES	$1.22	To Order

Photo	Part No	Description	Price (each)	Stock
	470121096E	COOLANT HOSE	$293.69	To Order

Photo	Part No	Description	Price (each)	Stock
	470121237A	CONNECTION PIECE	$100.14	To Order

Photo	Part No	Description	Price (each)	Stock
	470121510A	COOLANT HOSE	$36.70	To Order

Photo	Part No	Description	Price (each)	Stock
	470121453A	FUEL HOSE WITHVENT HOSE	$38.78	To Order

Photo	Part No	Description	Price (each)	Stock
	470121101	COOLANT HOSE	$33.15	To Order

Photo	Part No	Description	Price (each)	Stock
	470121076	HOSE CONNECTOR	$916.66	To Order

Photo	Part No	Description	Price (each)	Stock
	N90687001	SPRING BAND CLAMP	$7.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	470121264	BRACKET	$15.60	To Order

Photo	Part No	Description	Price (each)	Stock
	470121353B	SUPPORTING BRACKET	$50.95	To Order

Photo	Part No	Description	Price (each)	Stock
	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$4.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N02214812	HEXAGON NUT, SELF-LOCKING	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	N90686901	SPRING BAND CLAMP	$0.94	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	$1.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10196901	CLAMP	$1.07	IN STOCK

View All

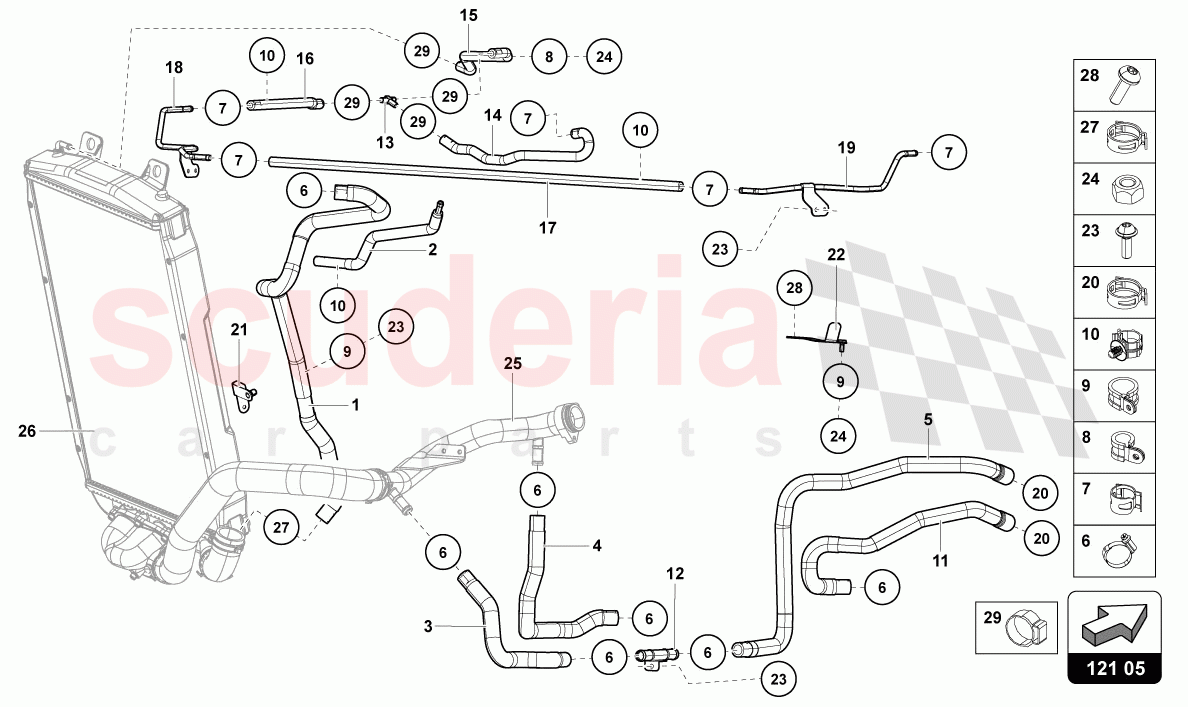

Diagram Tap to enlarge

Cooling System

Lamborghini Aventador LP780 Ultimae

Illustration Number: 121.05.00

Lamborghini Aventador LP780 Ultimae - COOLING SYSTEM (121.05.00)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	470121445A	COOLANT HOSE	470121445A COOLANT HOSE	$380.39	1
2	470121372B	VENT HOSE	470121372B VENT HOSE	$99.46	1
3	470121124E	COOLANT HOSE	470121124E COOLANT HOSE	$224.47	1
4	470121073E	COOLANT HOSE	470121073E COOLANT HOSE	$276.21	1
5	470121059E	COOLANT HOSE	470121059E COOLANT HOSE RETURN	$286.30	1
6	N90686901	SPRING BAND CLAMP IN STOCK	N90686901 SPRING BAND CLAMP 23X12 IN STOCK	$0.94	8
7	N90686701	SPRING BAND CLAMP IN STOCK	N90686701 SPRING BAND CLAMP 14X12 IN STOCK	$1.89 MSRP: ~~7.11~~ (73.4% off)	9
8	N0206026	CLAMP IN STOCK	N0206026 CLAMP 15X15 IN STOCK	$1.74 MSRP: ~~7.11~~ (75.5% off)	2
9	N0206473	CLAMP	N0206473 CLAMP	$6.06	2
10	3W0971838	CABLE TIES	3W0971838 CABLE TIES 4 -6X193MM 6,5/0,3-3,0MM	$1.22 MSRP: ~~7.23~~ (83.1% off)	6
11	470121096E	COOLANT HOSE	470121096E COOLANT HOSE	$293.69	1
12	470121237A	CONNECTION PIECE	470121237A CONNECTION PIECE	$100.14	1
14	470121510A	COOLANT HOSE	470121510A COOLANT HOSE	$36.70	1
15	470121453A	FUEL HOSE WITHVENT HOSE	470121453A FUEL HOSE WITHVENT HOSE	$38.78	1
16	470121101	COOLANT HOSE	470121101 COOLANT HOSE	$33.15	1
18	470121076	HOSE CONNECTOR	470121076 HOSE CONNECTOR LEFT	$916.66	1
20	N90687001	SPRING BAND CLAMP IN STOCK	N90687001 SPRING BAND CLAMP 27X12 IN STOCK	$7.56	2
21	470121264	BRACKET	470121264 BRACKET	$15.60	2
22	470121353B	SUPPORTING BRACKET	470121353B SUPPORTING BRACKET	$50.95	1
23	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M6X18 IN STOCK	$4.38	8
24	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING M6	$1.96 MSRP: ~~7.29~~ (73.1% off)	1
27	N90686901	SPRING BAND CLAMP IN STOCK	N90686901 SPRING BAND CLAMP 23X12 IN STOCK	$0.94	1
28	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE IN STOCK	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE M6X18 IN STOCK	$1.34	2
29	N10196901	CLAMP IN STOCK	N10196901 CLAMP IN STOCK	$1.07 MSRP: ~~7.23~~ (85.2% off)	4
