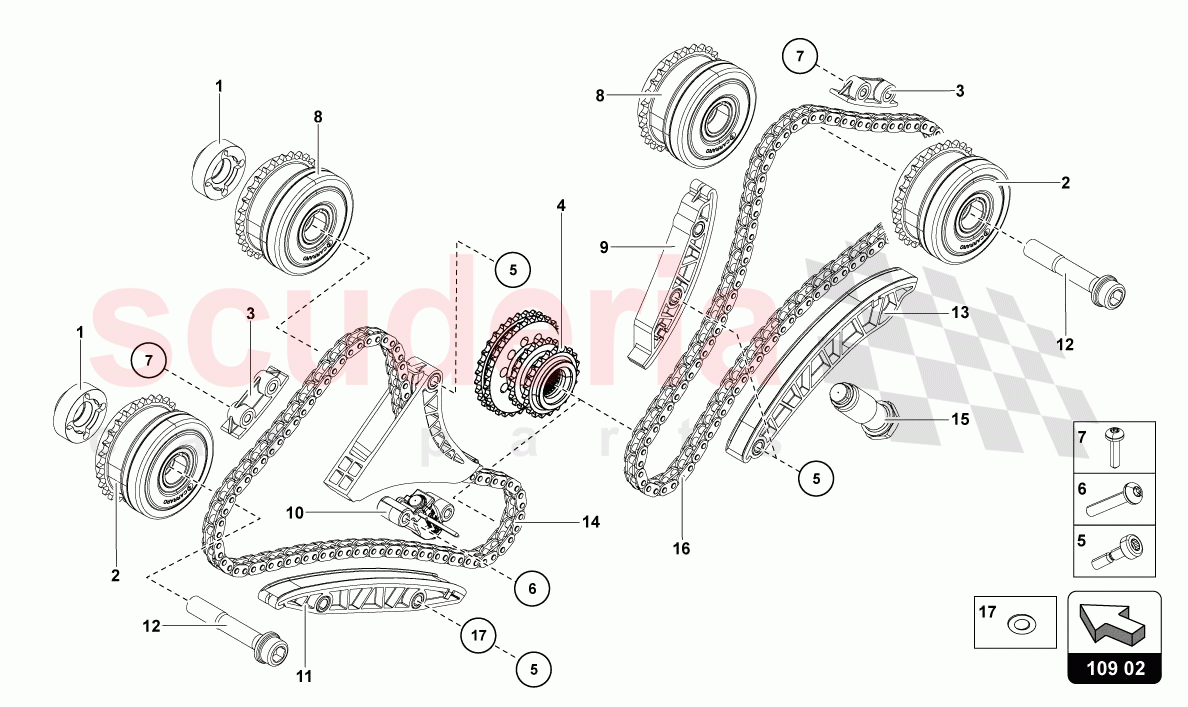

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7M109423B	LENGTH-MEASURING DEVICE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109084L	CAMSHAFT ADJUSTER UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109513B	SLIDING SHOE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT005008A	SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10554005	ROUND HD. SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91071701	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109083L	CAMSHAFT ADJUSTER UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109469B	GUIDE BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	57109217J	CHAIN TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109538B	SLIDING SHOE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109177D	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109508B	SLIDE RAIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109450B	TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3F109507B	CHAIN TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M109465C	TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003048	WASHER	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7M109423B	LENGTH-MEASURING DEVICE	7M109423B LENGTH-MEASURING DEVICE	-	4	Enquire
2	7M109084L	CAMSHAFT ADJUSTER UNIT	7M109084L CAMSHAFT ADJUSTER UNIT	-	2	Enquire
3	7M109513B	SLIDING SHOE	7M109513B SLIDING SHOE	-	2	Enquire
5	WHT005008A	SOCKET HEAD BOLT	WHT005008A SOCKET HEAD BOLT M8X35	-	6	Enquire
6	N10554005	ROUND HD. SCREW	N10554005 ROUND HD. SCREW M6X35	-	2	Enquire
7	N91071701	HEXAGON SOCKET FLAT HEAD BOLT	N91071701 HEXAGON SOCKET FLAT HEAD BOLT M6X25	-	4	Enquire
8	7M109083L	CAMSHAFT ADJUSTER UNIT	7M109083L CAMSHAFT ADJUSTER UNIT	-	2	Enquire
9	7M109469B	GUIDE BEARING	7M109469B GUIDE BEARING	-	1	Enquire
10	57109217J	CHAIN TENSIONER	57109217J CHAIN TENSIONER	-	1	Enquire
11	7M109538B	SLIDING SHOE	7M109538B SLIDING SHOE	-	1	Enquire
12	7M109177D	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	7M109177D SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	4	Enquire
13	7M109508B	SLIDE RAIL	7M109508B SLIDE RAIL	-	1	Enquire
14	7M109450B	TIMING CHAIN	7M109450B TIMING CHAIN UPPER	-	1	Enquire
15	3F109507B	CHAIN TENSIONER	3F109507B CHAIN TENSIONER	-	1	Enquire
16	7M109465C	TIMING CHAIN	7M109465C TIMING CHAIN UPPER	-	1	Enquire
17	WHT003048	WASHER	WHT003048 WASHER 22.0X28.0X1. 5	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Timing Chain

Lamborghini Aventador LP780 Ultimae
