OIL SUMP of Lamborghini Lamborghini Aventador LP780 Ultimae

View All

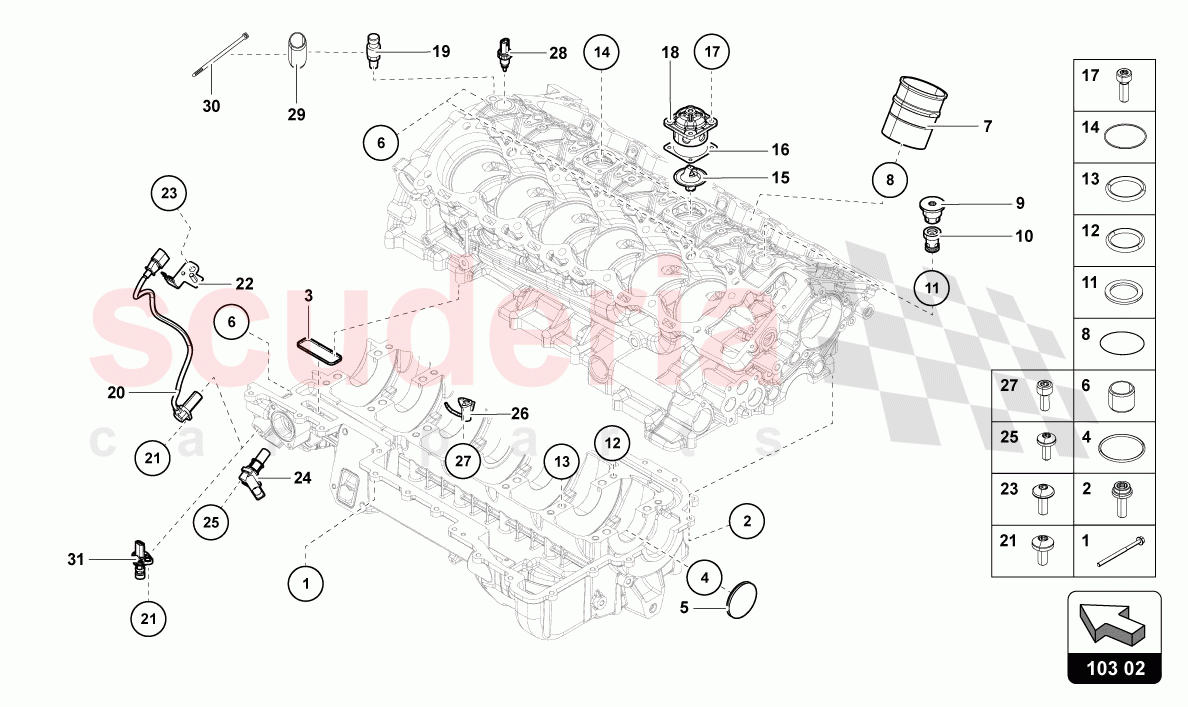

Lamborghini Aventador LP780 Ultimae - OIL SUMP (103.02.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N10709401	HEXAGON HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10689302	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M103121C	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91084501	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M103627	BUNGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	22103139B	DOWEL SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M103321B	CYLINDER LINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT005218	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M103937A	BUNGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M115540	OIL SPRAY JET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000406	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91014801	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90111301	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90443601	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	50121113B	COOLANT REGULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M103649	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91084801	HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M121121E	COVER FOR THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M919561	OIL PRESSURE SENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91096702	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	79907601	IMPULSE SENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91096702	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M103158E	AIR VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10456103	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	59919523F	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470971729	HEAT DEFLECTOR HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10562301	CABLE TIES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6H906433E	IMPULSE SENDER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	N10709401	HEXAGON HEAD BOLT (COMBI)	N10709401 HEXAGON HEAD BOLT (COMBI) M8X120X80	-	1	Enquire
2	N10689302	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10689302 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X25	-	24	Enquire
3	7M103121C	SEAL	7M103121C SEAL	-	1	Enquire
4	N91084501	O-RING	N91084501 O-RING 63 -09X3,53	-	1	Enquire
5	7M103627	BUNGS	7M103627 BUNGS	-	1	Enquire
6	22103139B	DOWEL SLEEVE	22103139B DOWEL SLEEVE 16X13 -5	-	6	Enquire
7	7M103321B	CYLINDER LINER	7M103321B CYLINDER LINER 95	-	12	Enquire
8	WHT005218	SEAL RING	WHT005218 SEAL RING	-	12	Enquire
9	7M103937A	BUNGS	7M103937A BUNGS	-	1	Enquire
10	7M115540	OIL SPRAY JET	7M115540 OIL SPRAY JET	-	1	Enquire
11	WHT000406	SEAL RING	WHT000406 SEAL RING 24 -3X31,9X2	-	1	Enquire
12	N91014801	O-RING	N91014801 O-RING 11 -11X1,78	-	14	Enquire
13	N90111301	O-RING	N90111301 O-RING 12 -42X1,78	-	14	Enquire
14	N90443601	O-RING	N90443601 O-RING	-	2	Enquire
15	50121113B	COOLANT REGULATOR	50121113B COOLANT REGULATOR 80C-102C	-	2	Enquire
16	7M103649	SEAL	7M103649 SEAL	-	2	Enquire
17	N91084801	HEXAGON SOCKET HEAD BOLT	N91084801 HEXAGON SOCKET HEAD BOLT M6X18	-	8	Enquire
18	7M121121E	COVER FOR THERMOSTAT	7M121121E COVER FOR THERMOSTAT	-	2	Enquire
19	7M919561	OIL PRESSURE SENDER	7M919561 OIL PRESSURE SENDER UNTIL ENGINE - 6L1201300 ORDER ALSO REF.29	-	1	Enquire
21	N91096702	OVAL HEXAGON SOCKET HEAD BOLT	N91096702 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	1	Enquire
24	79907601	IMPULSE SENDER	79907601 IMPULSE SENDER FLYWHEEL	-	1	Enquire
25	N91096702	OVAL HEXAGON SOCKET HEAD BOLT	N91096702 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	1	Enquire
26	7M103158E	AIR VENT	7M103158E AIR VENT	-	7	Enquire
27	N10456103	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10456103 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M4X10	-	1	Enquire
28	59919523F	TEMPERATURE SENSOR	59919523F TEMPERATURE SENSOR	-	2	Enquire
29	470971729	HEAT DEFLECTOR HOSE	470971729 HEAT DEFLECTOR HOSE	-	1	Enquire
30	N10562301	CABLE TIES	N10562301 CABLE TIES 4 -7X194	-	1	Enquire
31	6H906433E	IMPULSE SENDER	6H906433E IMPULSE SENDER CRANCKSHAFT ENGINE-3 PIN	-	1	Enquire
