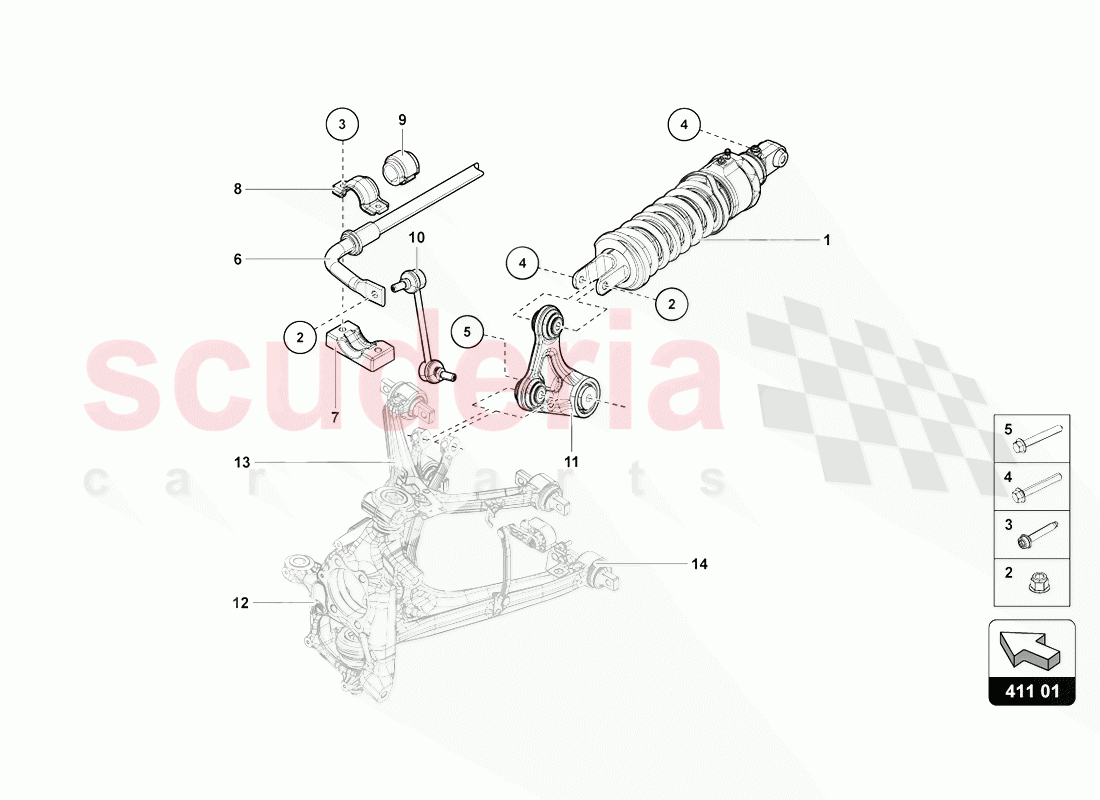

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	470412019AE	SHOCK ABSORBERS	470412019AE SHOCK ABSORBERS BLACK	$19,869.65	2
1	470412019AC	SHOCK ABSORBERS	470412019AC SHOCK ABSORBERS	$15,800.20	2
2	N10106402	HEXAGON COLLAR NUT SELF-LOCKING	N10106402 HEXAGON COLLAR NUT SELF-LOCKING M12X1,5	$2.50	4
3	N10682501	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10682501 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X50	$2.78 MSRP: ~~7.07~~ (60.7% off)	4
4	N10428002	HEX COLLARED BOLT	N10428002 HEX COLLARED BOLT M12X1,5X80	$6.27	2
5	N10628301	HEX COLLARED BOLT	N10628301 HEX COLLARED BOLT M12X1,5X90	$6.66	2
6	470411309K	ANTI-ROLL BAR	470411309K ANTI-ROLL BAR FRONT	$618.29	1
7	420411031A	ANTI-ROLL BAR BEARING BRACKET	420411031A ANTI-ROLL BAR BEARING BRACKET	$25.42	2
8	4D0411336G	CLAMP	4D0411336G CLAMP	$5.85	2
9	8K0411327B	RUBBER BUSH	8K0411327B RUBBER BUSH	$9.82	2
10	470411317C	COUPLING ROD	470411317C COUPLING ROD LEFT	$426.08	1
10	470411318C	COUPLING ROD	470411318C COUPLING ROD RIGHT	$426.08	1
11	470413127	OUTRIGGER	470413127 OUTRIGGER	$1,298.39	2
12	-	WHEEL BEARING HOUSING	WHEEL BEARING HOUSING SEE ILLUSTRATION :- 407-020	-	-	Enquire
13	-	WISHBONE	WISHBONE SEE ILLUSTRATION :-UPPER 407-010	-	-	Enquire
14	-	WISHBONE	WISHBONE SEE ILLUSTRATION :-LOWER 407-010	-	-	Enquire
