AIR CONDITIONING SYSTEM 1 of Lamborghini Lamborghini Aventador LP750 SV Roadster

View All

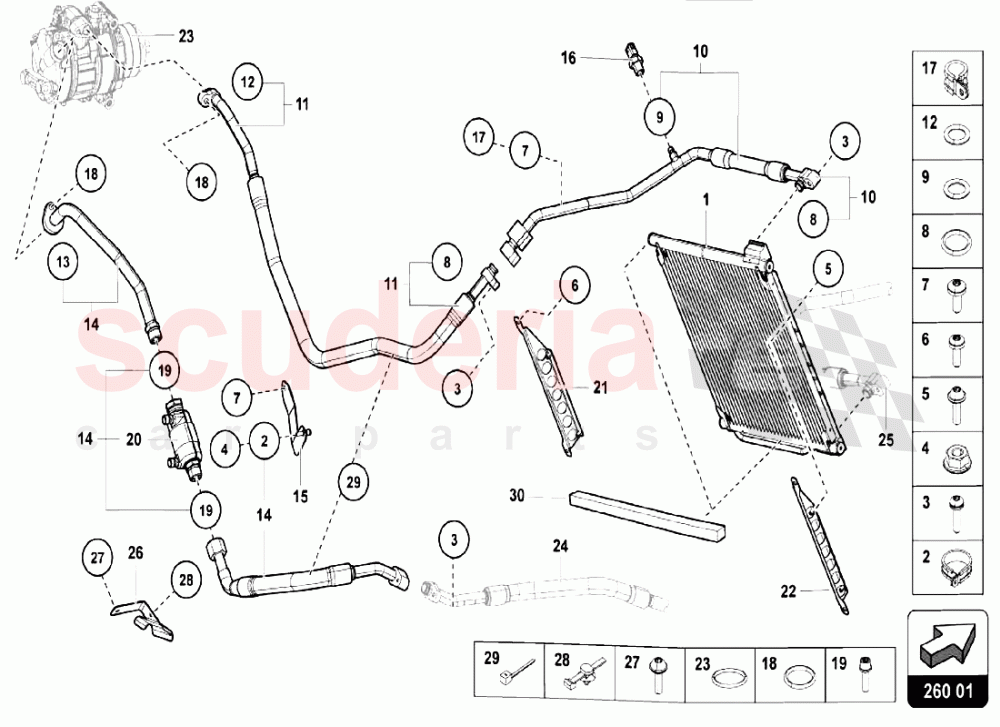

Lamborghini Aventador LP750 SV Roadster - AIR CONDITIONING SYSTEM 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470260401A	AIR CONDITIONING CONDENSER IN STOCK	470260401A AIR CONDITIONING CONDENSER IN STOCK	$1,013.47	1
002	N90942301	CLAMP	N90942301 CLAMP	$10.22	1
003	N10347204	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	N10347204 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	$2.29 MSRP: ~~7.26~~ (68.5% off)	3
004	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.21	1
005	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	N10569501 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	$2.15	4
006	N10451408	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10451408 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.47	4
007	N91096701	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91096701 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.63	2
008	4E0260749B	SEAL RING IN STOCK	4E0260749B SEAL RING IN STOCK	$6.45 MSRP: ~~7.06~~ (8.6% off)	2
009	7H0820896	O-RING	7H0820896 O-RING	$5.66 MSRP: ~~7.21~~ (21.5% off)	1
010	470260702D	FLANGED PIPE	470260702D FLANGED PIPE	$321.25	1
011	470260701B	FLANGED PIPE	470260701B FLANGED PIPE	$393.82	1
012	4E0260749A	SEAL RING IN STOCK	4E0260749A SEAL RING IN STOCK	$6.67 MSRP: ~~7.06~~ (5.5% off)	1
013	8E0260749C	SEAL RING	8E0260749C SEAL RING	$5.66 MSRP: ~~7.09~~ (20.2% off)	1
014	470260709C	FLANGED PIPE	470260709C FLANGED PIPE	$1,807.79	1
015	470201809	BRACKET	470201809 BRACKET	$33.59	1
016	4H0959126C	PRESSURE SENDER FOR REFRIGERANT CIRCUIT IN STOCK	4H0959126C PRESSURE SENDER FOR REFRIGERANT CIRCUIT IN STOCK	$49.64	1
017	N0206405	CLAMP	N0206405 CLAMP	$2.02 MSRP: ~~7.07~~ (71.4% off)	1
018	N10414402	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD IN STOCK	N10414402 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD IN STOCK	$3.11 MSRP: ~~7.07~~ (56% off)	2
021	470260427A	BRACKET	470260427A BRACKET	$39.86	1
022	470260428A	BRACKET	470260428A BRACKET	$39.80	1
026	470260761	BRACKET	470260761 BRACKET	$38.17	1
027	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	$1.68	1
028	3W0971838	CABLE TIES	3W0971838 CABLE TIES	$1.22 MSRP: ~~7.23~~ (83.1% off)	1
029	N10562301	CABLE TIES	N10562301 CABLE TIES	$1.32 MSRP: ~~7.18~~ (81.6% off)	2
030	470260423	SPONGE	470260423 SPONGE	$50.95	2
